RH316.2020.08.SA.03.IK
Material number RH316202008SA03IK

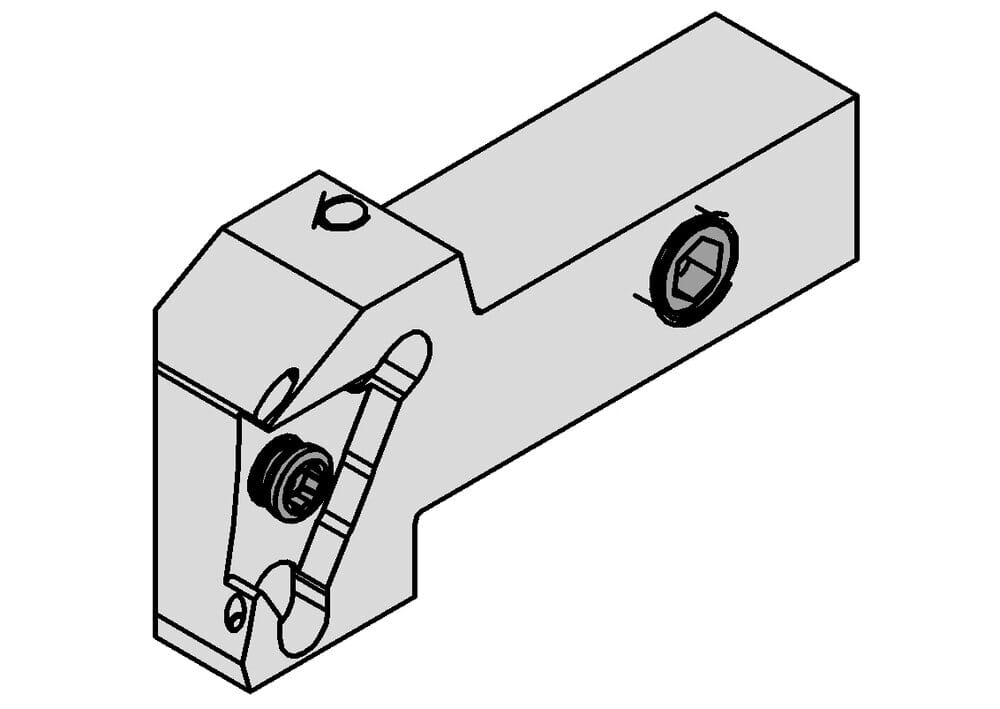

HORN Toolholder RH316.2020.08.SA.03.IK for Turning

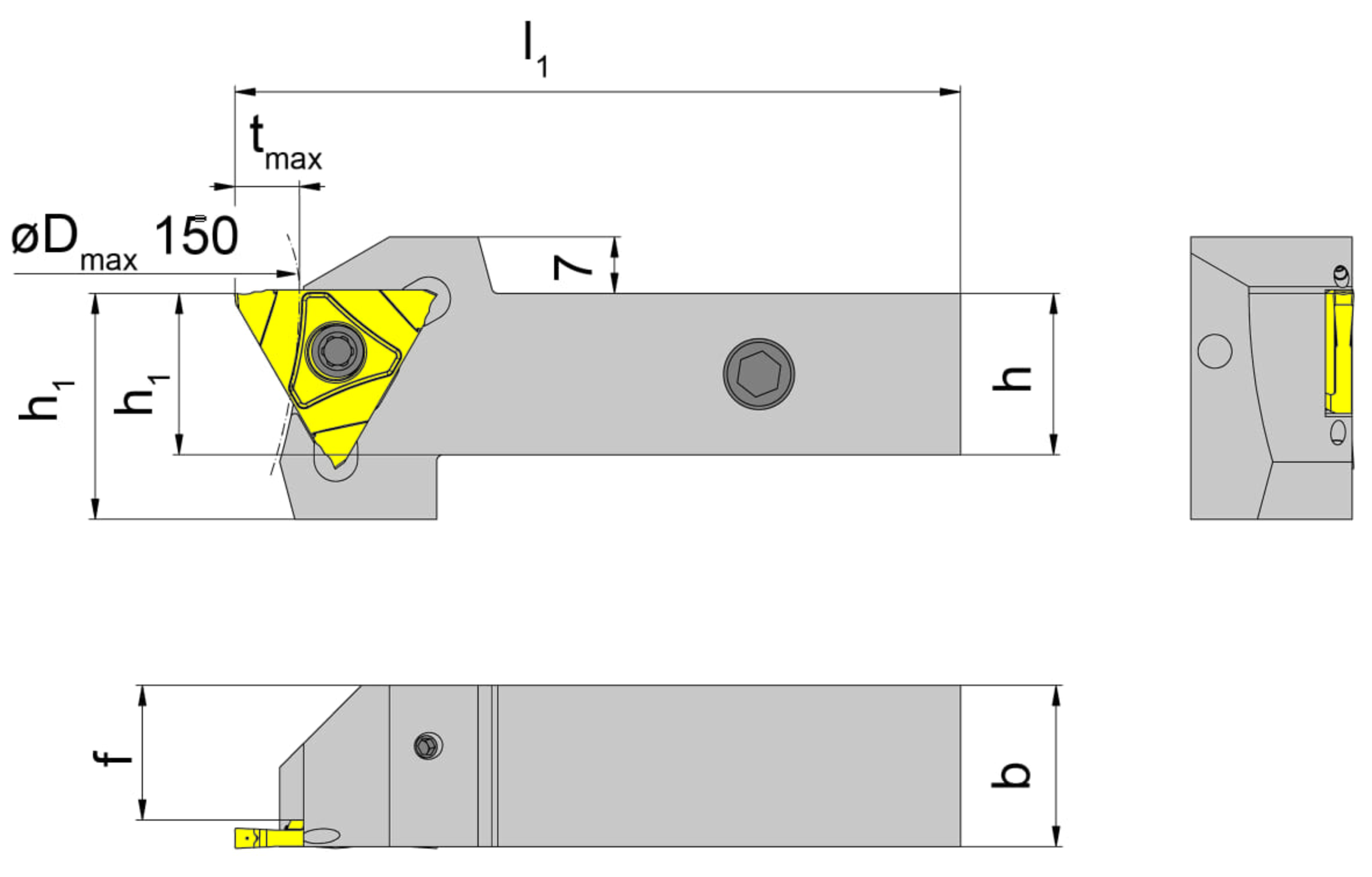

Maximum depth of groove (tmax)
0.315 ˝
8 mm
us-cutting
No
machining-direction-sap
right
Katalog_CCTWS
S31603R
Adjustment dimension locating face insert (f)
0.657 ˝
16.7 mm
tool-application
static
Peak height (h1)
1.102 ˝
28 mm
length-overall-imp
3.543 ˝
90 mm
Shank height (h)
0.787 ˝
20 mm
Total length (including cutting insert) (l)
3.543 ˝
90 mm
Shank width (b)
0.787 ˝
20 mm
| Downloads | |
|---|---|
| RH316_2020_08_SA_03_IK-DXF.DXF | Download |
| RH316_2020_08_SA_03_IK-STP.STP | Download |
| RH316_2020_08_SA_03_IK-ISO.XML | Download |
| RH316_2020_08_SA_03_IK-DIN.XML | Download |
| Download all files | |
