RH234.2525.33.0A.02.IK

Material number RH2342525330A02IK

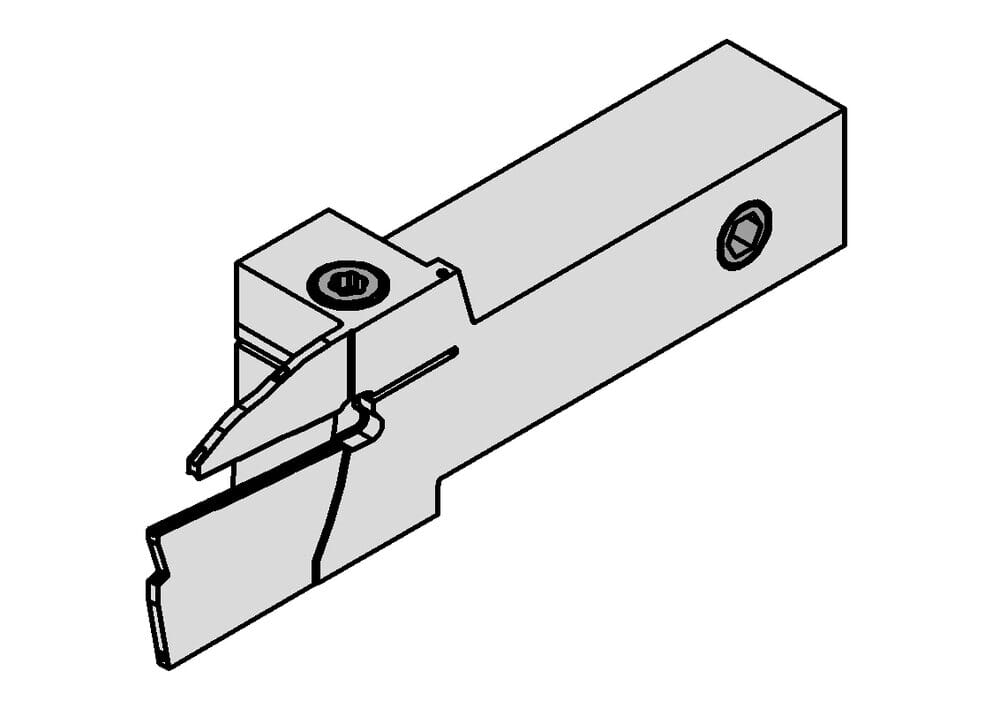

HORN Toolholder RH234.2525.33.0A.02.IK for Turning

Adjustment dimension (formula) (f)

f1+w/2

Head length (including cutting edge) (l2)

1.89 ˝

48 mm

Head length top (including cutting edge) (l3)

2.126 ˝

54 mm

tool-application

static

Peak height (h1)

0.984 ˝

25 mm

Katalog_CCTWS

23401

machining-direction-sap

right

us-cutting

Width of groove (w)

0.079 ˝

2 mm

Maximum workpiece diameter (Dmax)

3.15 ˝

80 mm

Shank width (b)

0.984 ˝

25 mm

Adjustment dimension cutting center (f1)

0.945 ˝

24 mm

Total length (including cutting insert) (l1)

5.197 ˝

132 mm

Shank height (h)

0.984 ˝

25 mm

Maximum insertion depth (tmax)

1.299 ˝

33 mm
