RH234.2020.33.03
Material number RH23420203303

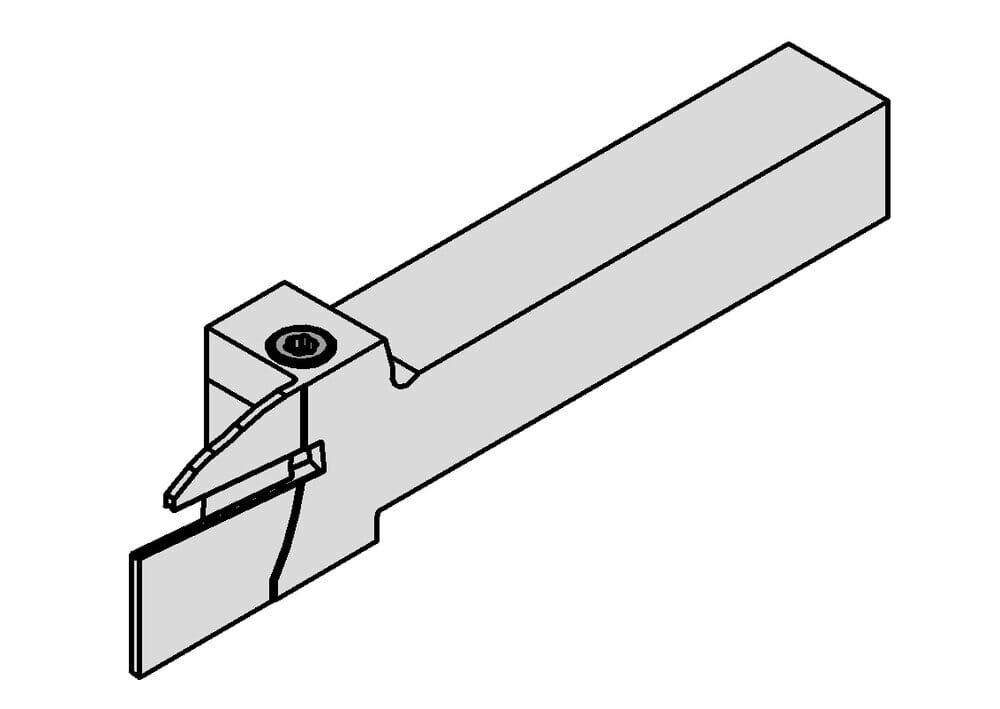

HORN Toolholder RH234.2020.33.03 for Turning
Katalog_CCTWS
23403
Peak height (h1)
0.787 ˝
20 mm
Adjustment dimension (formula) (f)
f1+w/2
Head length (including cutting edge) (l2)
1.89 ˝
48 mm
Head length top (including cutting edge) (l3)
2.047 ˝
52 mm
Maximum workpiece diameter (Dmax)
3.15 ˝
80 mm
machining-direction-sap
right
Width of groove (w)
0.118 ˝
3 mm
tool-application
static
us-cutting
No
Maximum insertion depth (tmax)
1.299 ˝
33 mm
Shank width (b)
0.787 ˝
20 mm
Adjustment dimension cutting center (f1)
0.728 ˝
18.5 mm
Total length (including cutting insert) (l1)
5.906 ˝
150 mm
Shank height (h)
0.787 ˝
20 mm
length-overall-met
5.906 ˝
150 mm
| Downloads | |
|---|---|
| RH234_2020_33_03-DXF.DXF | Download |
| RH234_2020_33_03-STP.STP | Download |
| RH234_2020_33_03-ISO.XML | Download |
| RH234_2020_33_03-DIN.XML | Download |
| Download all files | |
