RH224.2525.14.0A.03.IK
Material number RH2242525140A03IK

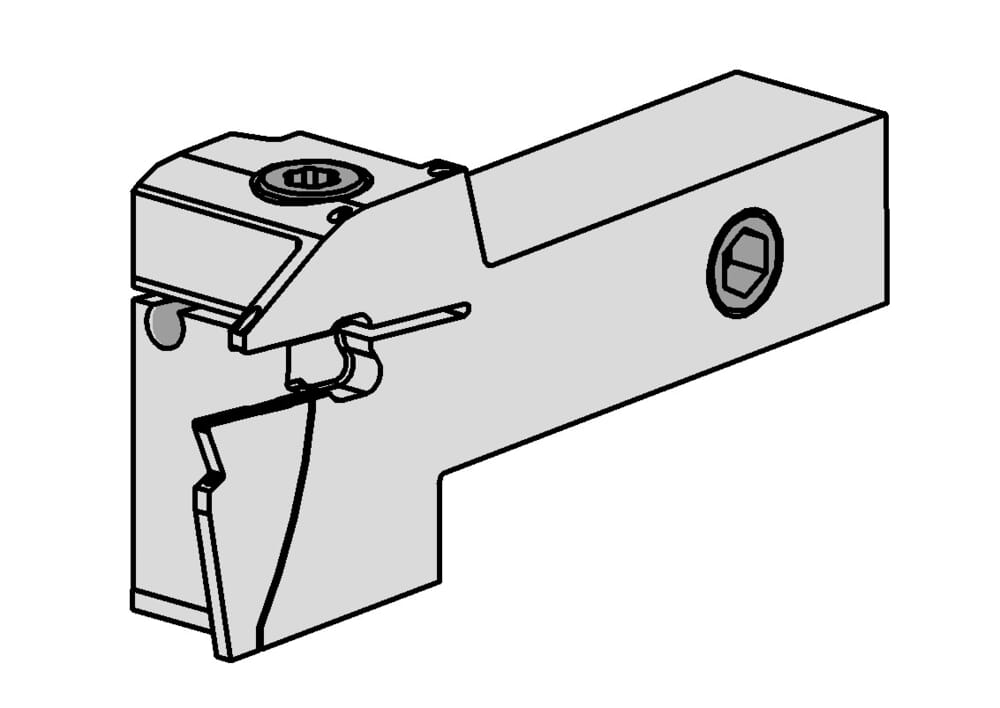

HORN Toolholder RH224.2525.14.0A.03.IK for Turning
Width of groove (mm) (w)
0.118 ˝
3 mm
Clamping range maximum (Spannbereich)
0.146 ˝
3.7 mm
Clamping range minimum (Spannbereich)
0.11 ˝
2.8 mm
Katalog_CCTWS
224038
Head length top (including cutting edge) (l3)
1.378 ˝
35 mm
Adjustment dimension (formula) (f)
f1+w/2
tool-application
static
machining-direction-sap
right
us-cutting
No
Shank height (h)
0.984 ˝
25 mm
Adjustment dimension cutting center (f1)
0.935 ˝
23.75 mm
Total length (including cutting insert) (l1)
4.449 ˝
113 mm
Maximum insertion depth (tmax)
0.551 ˝
14 mm
Maximum workpiece diameter (Dmax)
3.15 ˝
80 mm
Peak height (h1)
1.181 ˝
30 mm
Shank width (b)
0.984 ˝
25 mm
Head length (including cutting edge) (l2)
1.142 ˝
29 mm
