RH224.1616.14.0A.25.IK
Material number RH2241616140A25IK

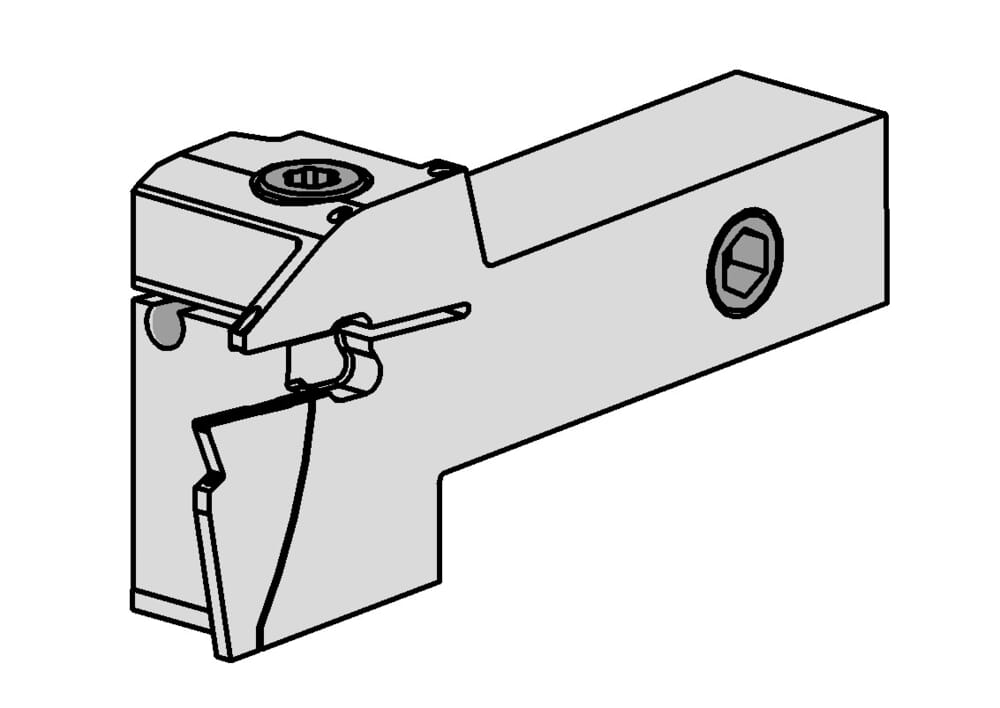

HORN Toolholder RH224.1616.14.0A.25.IK for Turning
Width of groove (mm) (w)
0.098 ˝
2.5 mm
Head length top (including cutting edge) (l3)
1.378 ˝
35 mm
Clamping range maximum (Spannbereich)
0.11 ˝
2.8 mm
Clamping range minimum (Spannbereich)
0.094 ˝
2.4 mm
Katalog_CCTWS
224028
Adjustment dimension (formula) (f)
f1+w/2
machining-direction-sap
right
tool-application
static
us-cutting
No
Total length (including cutting insert) (l1)
3.268 ˝
83 mm
Adjustment dimension cutting center (f1)
0.589 ˝
14.95 mm
Shank height (h)
0.63 ˝
16 mm
Head width (b1)
0.787 ˝
20 mm
Maximum insertion depth (tmax)
0.551 ˝
14 mm
Maximum workpiece diameter (Dmax)
3.15 ˝
80 mm
Peak height (h1)
0.984 ˝
25 mm
Shank width (b)
0.63 ˝
16 mm
Head length (including cutting edge) (l2)
1.142 ˝
29 mm
| Downloads | |
|---|---|
| RH224_1616_14_0A_25_IK-DXF.DXF | Download |
| RH224_1616_14_0A_25_IK-STP.STP | Download |
| RH224_1616_14_0A_25_IK-ISO.XML | Download |
| RH224_1616_14_0A_25_IK-DIN.XML | Download |
| Download all files | |
