RH224.1212.23.IK
Material number RH224121223IK

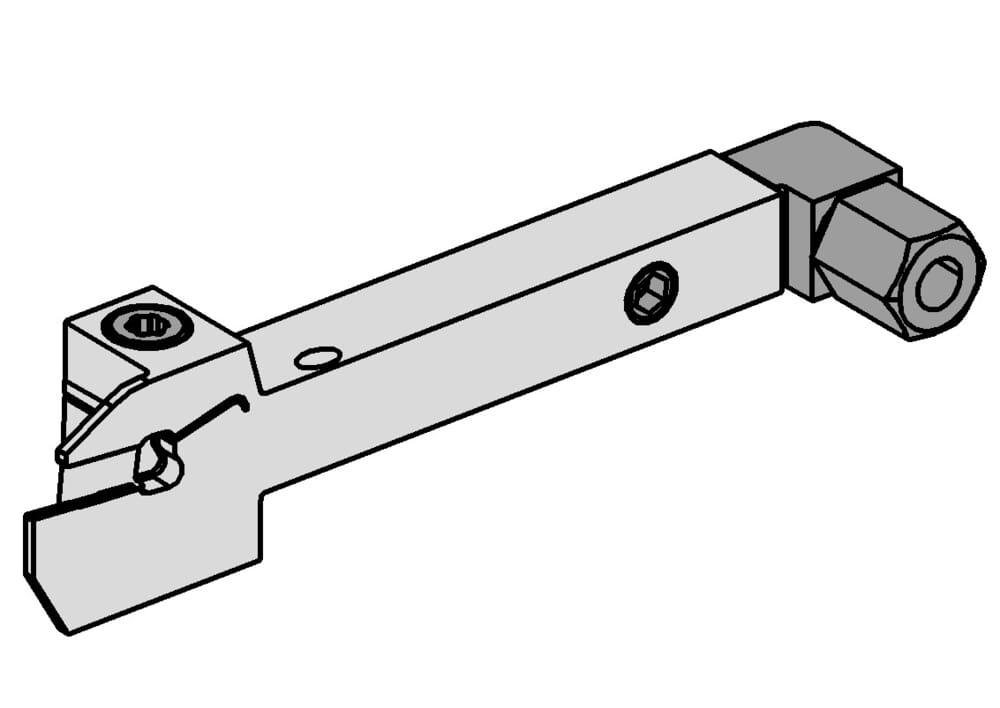

HORN Toolholder RH224.1212.23.IK for Turning
Width of groove (mm) (w)
0.118 ˝
3 mm
Clamping range maximum (Spannbereich)
0.146 ˝
3.7 mm
Clamping range minimum (Spannbereich)
0.11 ˝
2.8 mm
Katalog_CCTWS
224038
Head length (including cutting edge) (l2)
1.299 ˝
33 mm
Adjustment dimension (formula) (f)
f1+w/2
machining-direction-sap
right
tool-application
static
us-cutting
No
Total length (including cutting insert) (l1)
4.921 ˝
125 mm
Adjustment dimension cutting center (f1)
0.429 ˝
10.9 mm
Shank height (h)
0.472 ˝
12 mm
length-overall-met
4.921 ˝
125 mm
Maximum insertion depth (tmax)
0.709 ˝
18 mm
Maximum workpiece diameter (Dmax)
3.15 ˝
80 mm
Peak height (h1)
0.787 ˝
20 mm
Shank width (b)
0.472 ˝
12 mm
