RH.1R4.1414.0.I.43
Material number RH1R414140I43

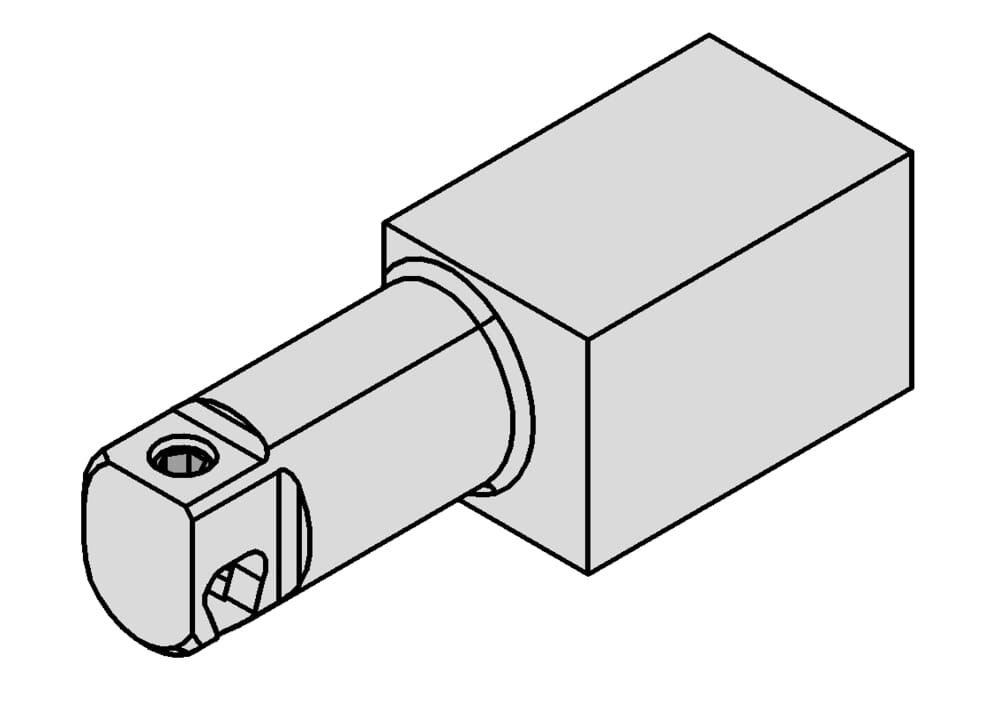

HORN Toolholder RH.1R4.1414.0.I.43 for Turning

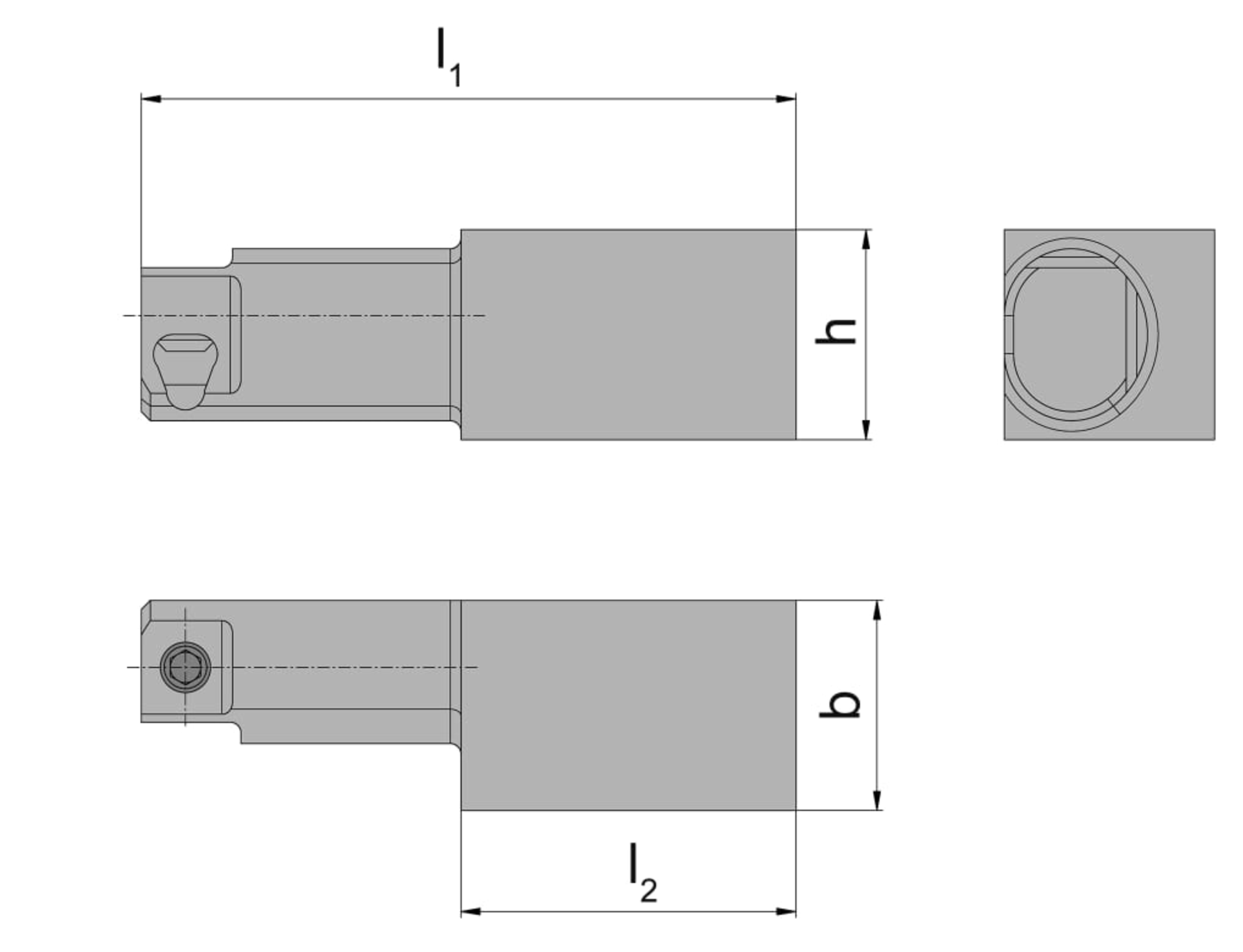

Shank width (b)
0.543 ˝
13.8 mm
us-cutting
No
tool-application
static
machining-direction-sap
right
Katalog_CCTWS
1R403
Shank height (h)
0.543 ˝
13.8 mm
Total length (without cutting insert) (l1)
1.693 ˝
43 mm
Length (l2)
0.827 ˝
21 mm
| Downloads | |
|---|---|
| RH_1R4_1414_0_I_43-DXF.DXF | Download |
| RH_1R4_1414_0_I_43-STP.STP | Download |
| RH_1R4_1414_0_I_43-ISO.XML | Download |
| RH_1R4_1414_0_I_43-DIN.XML | Download |
| Download all files | |
