RH100.3208.34.4.73R.IK
Material number RH100320834473RIK

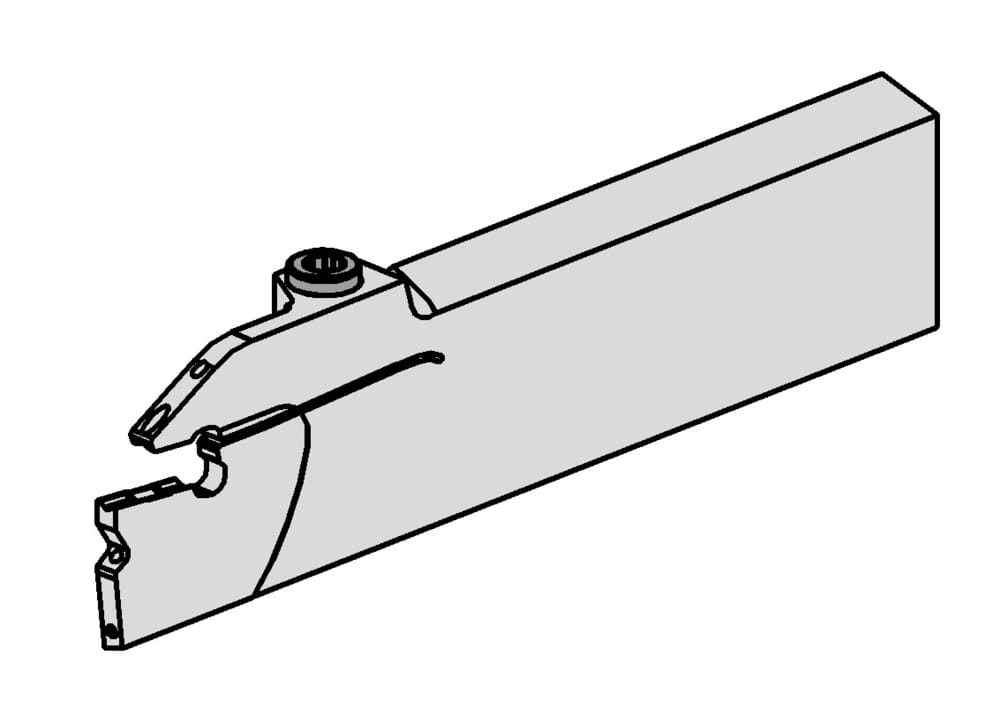

HORN Toolholder RH100.3208.34.4.73R.IK for Turning
Head length top (including cutting edge) (l3)
1.89 ˝
48 mm
tool-application
static
machining-direction-sap
right
Katalog_CCTWS
100038
Width / thickness sword (b)
0.311 ˝
7.9 mm
Peak height (h1)
0.976 ˝
24.8 mm
Maximum workpiece diameter (Dmax)
2.677 ˝
68 mm
Maximum insertion depth (tmax)
1.339 ˝
34 mm
Head height (h)
1.26 ˝
32 mm
Total length (including cutting insert) (l1)
4.331 ˝
110 mm
Adjustment dimension (f1)
0.258 ˝
6.55 mm
| Downloads | |
|---|---|
| RH100_3208_34_20171121_194620677.STP | Download |
| RH100320834473RIK.DXF | Download |
| Download all files | |
