RH100.2020.3.33.IK
Material number RH1002020333IK

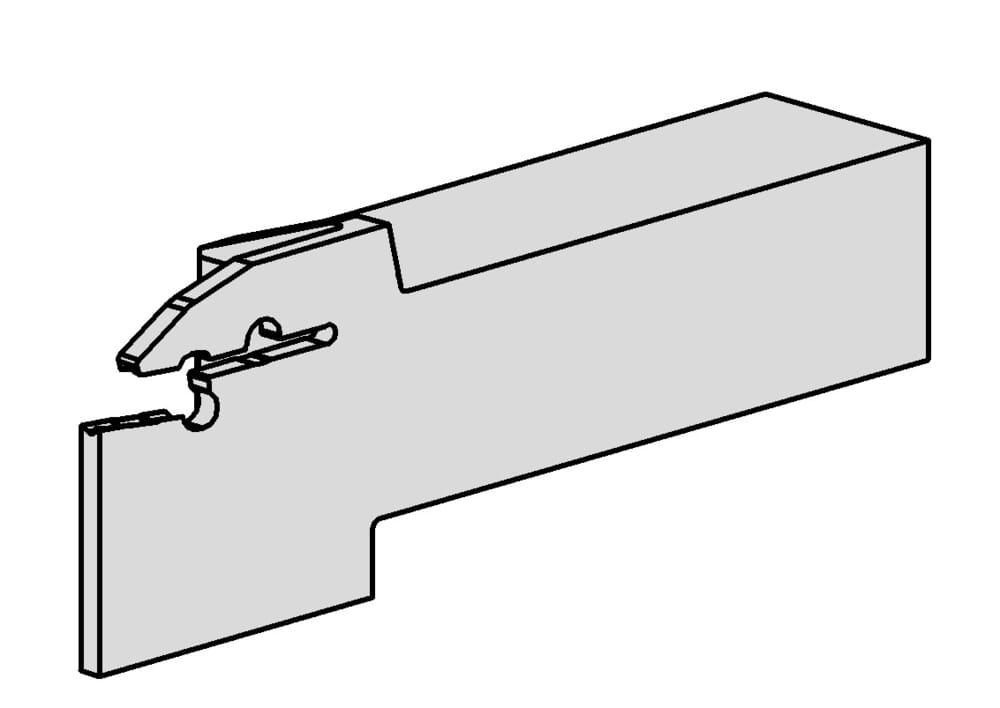

HORN Toolholder RH100.2020.3.33.IK for Turning
Adjustment dimension (formula) (f)
f1+w/2
Head length (including cutting edge) (l2)
1.378 ˝
35 mm
Head length top (including cutting edge) (l3)
1.516 ˝
38.5 mm
Katalog_CCTWS
100039
machining-direction-sap
right
tool-application
static
us-cutting
No
Adjustment dimension cutting center (f1)
0.742 ˝
18.85 mm
Total length (including cutting insert) (l1)
4.094 ˝
104 mm
Shank height (h)
0.787 ˝
20 mm
Head height (HK)
1.323 ˝
33.6 mm
length-overall-met
4.094 ˝
104 mm
Maximum insertion depth (tmax)
1.299 ˝
33 mm
Maximum workpiece diameter (Dmax)
2.559 ˝
65 mm
Peak height (h1)
1.063 ˝
27 mm
Shank width (b)
0.787 ˝
20 mm
head-length-imp
1.516 ˝
| Downloads | |
|---|---|
| RH100_2020_3_33_IK-DXF.DXF | Download |
| RH100_2020_3_33_IK-STP.STP | Download |
| RH100_2020_3_33_IK-ISO.XML | Download |
| RH100_2020_3_33_IK-DIN.XML | Download |
| Download all files | |
