RH100.2020.1.23.IK
Material number RH1002020123IK

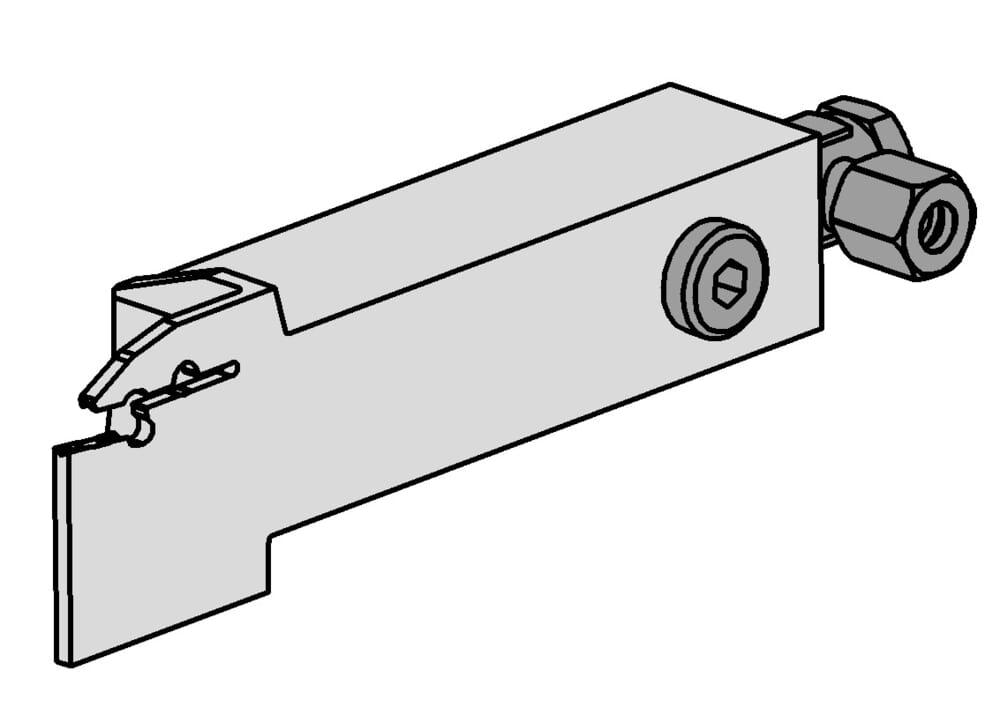

HORN Toolholder RH100.2020.1.23.IK for Turning
Adjustment dimension (formula) (f)
f1+w/2
Head length (including cutting edge) (l2)
1.378 ˝
35 mm
Head length top (including cutting edge) (l3)
1.319 ˝
33.5 mm
Katalog_CCTWS
100039
machining-direction-sap
right
tool-application
static
us-cutting
No
Adjustment dimension cutting center (f1)
0.742 ˝
18.85 mm
Total length (including cutting insert) (l1)
4.921 ˝
125 mm
Shank height (h)
0.787 ˝
20 mm
Head height (HK)
1.26 ˝
32 mm
length-overall-met
4.921 ˝
125 mm
Maximum insertion depth (tmax)
0.846 ˝
21.5 mm
Maximum workpiece diameter (Dmax)
1.654 ˝
42 mm
Peak height (h1)
1.063 ˝
27 mm
Shank width (b)
0.787 ˝
20 mm
head-length-imp
1.319 ˝
| Downloads | |
|---|---|
| RH100_2020_1_23_IK-DXF.DXF | Download |
| RH100_2020_1_23_IK-STP.STP | Download |
| RH100_2020_1_23_IK-ISO.XML | Download |
| RH100_2020_1_23_IK-DIN.XML | Download |
| Download all files | |
