RH100.1616.0.23.IK
Material number RH1001616023IK

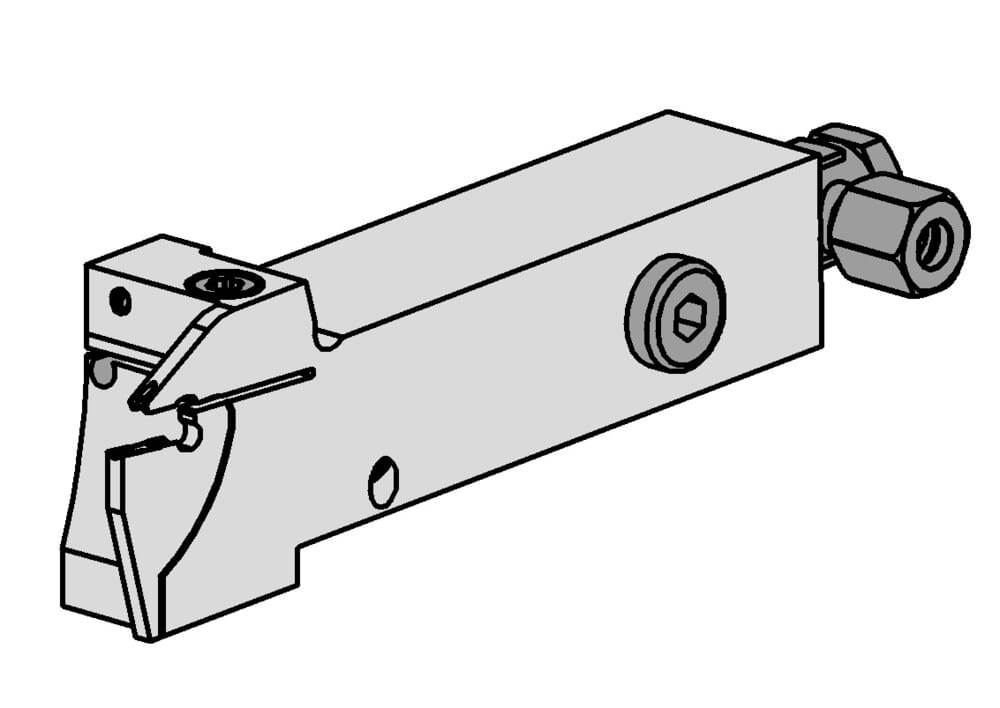

HORN Toolholder RH100.1616.0.23.IK for Turning
Head length (including cutting edge) (l2)
1.378 ˝
35 mm
Head length top (including cutting edge) (l3)
1.535 ˝
39 mm
Katalog_CCTWS
100038
Adjustment dimension (formula) (f)
f1+w/2
machining-direction-sap
right
tool-application
static
Adjustment dimension cutting center (f1)
0.577 ˝
14.65 mm
Total length (including cutting insert) (l1)
4.921 ˝
125 mm
Shank height (h)
0.63 ˝
16 mm
length-overall-met
4.921 ˝
125 mm
Maximum insertion depth (tmax)
0.846 ˝
21.5 mm
Maximum workpiece diameter (Dmax)
1.654 ˝
42 mm
Peak height (h1)
0.984 ˝
25 mm
Shank width (b)
0.787 ˝
20 mm
head-length-imp
1.535 ˝
