RBU11P.0500.01
Material number RBU11P050001
HORN Toolholder RBU11P.0500.01 for Turning
Katalog_CCTWS
11P070R
tool-application
static
machining-direction-sap
right
cutting-width-min-imp
0.039 ˝
1 mm
smallest-bore-diameter-imp
0.413 ˝
10.5 mm
cutting-width-max-imp
0.118 ˝
3 mm

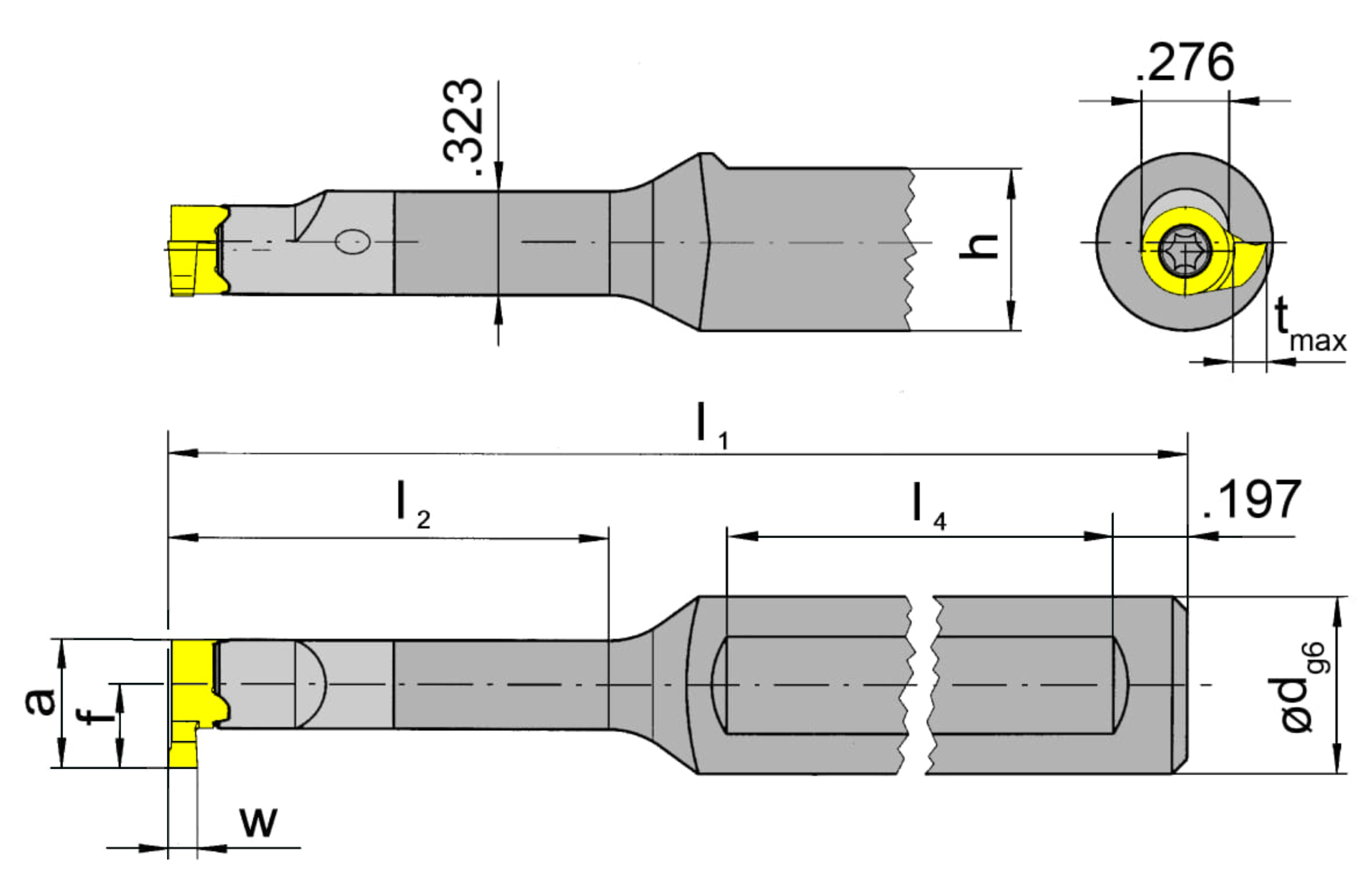

Outcropping, neck, working length (l2)
1.024 ˝
26 mm
Shank, clamping diameter (d)
0.5 ˝
12.7 mm
depth-of-groove-max-imp
0.138 ˝
3.5 mm
Length of clamping surface(s) (l4)
1.772 ˝
45 mm
Height clamping surface(s) (h)
0.461 ˝
11.7 mm
Total length (including cutting insert) (l1)
3.74 ˝
95 mm
| Downloads | |
|---|---|
| RBU11P_0500_01.STP | Download |
| RBU11P050001.DXF | Download |
| Download all files | |
