RB224.0025.1.06
Material number RB2240025106

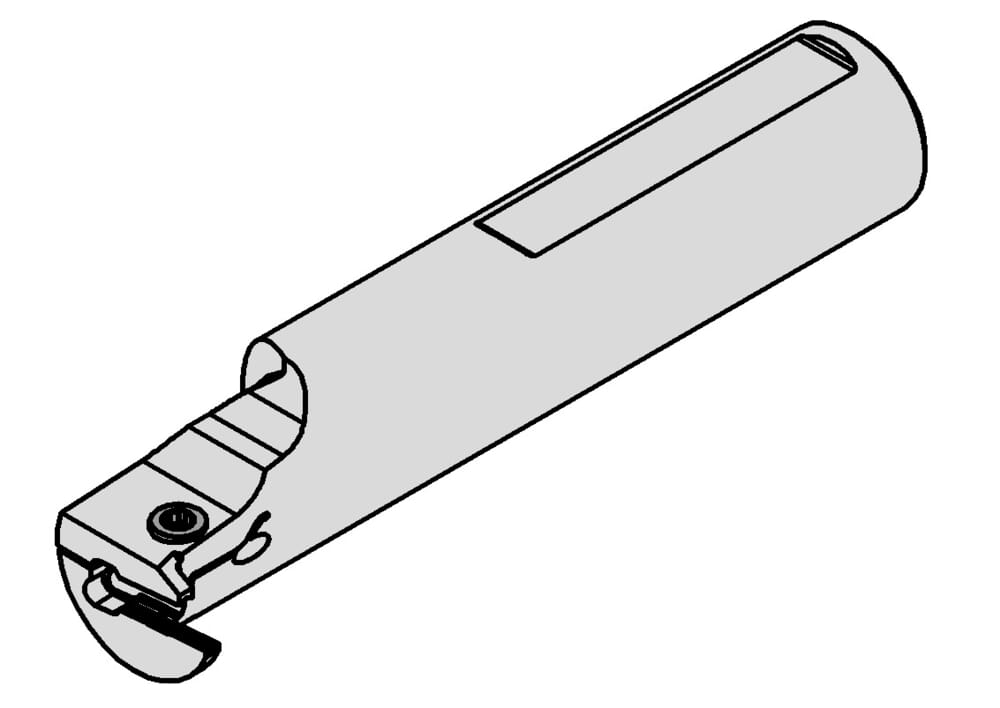

HORN Toolholders RB224.0025.1.06 for Turning
Clamping range minimum (Spannbereich)
5.1 mm
Working length (l2)
1.181 ˝
30 mm
Width of groove (mm) (w)
0.236 ˝
6 mm
us-cutting
No
machining-direction-sap
right
Katalog_CCTWS
224068
tool-application
static
Clamping range maximum (Spannbereich)
6.1 mm
Shank, clamping diameter (d)
0.984 ˝
25
Minimum drilling diameter (Dmin)
1.102 ˝
28 mm
Maximum depth of groove (tmax)
0.315 ˝
8 mm
Total length (including cutting insert) (l1)
5.118 ˝
130 mm
Adjustment dimension from center (f)
0.827 ˝
21 mm
Distance of clamping surface (s) (h)
0.906 ˝
23 mm
| Downloads | |
|---|---|
| RB224_0025_1_06-DXF.DXF | Download |
| RB224_0025_1_06-STP.STP | Download |
| RB224_0025_1_06-ISO.XML | Download |
| RB224_0025_1_06-DIN.XML | Download |
| Download all files | |
