RB224.0020.0.01
Material number RB2240020001

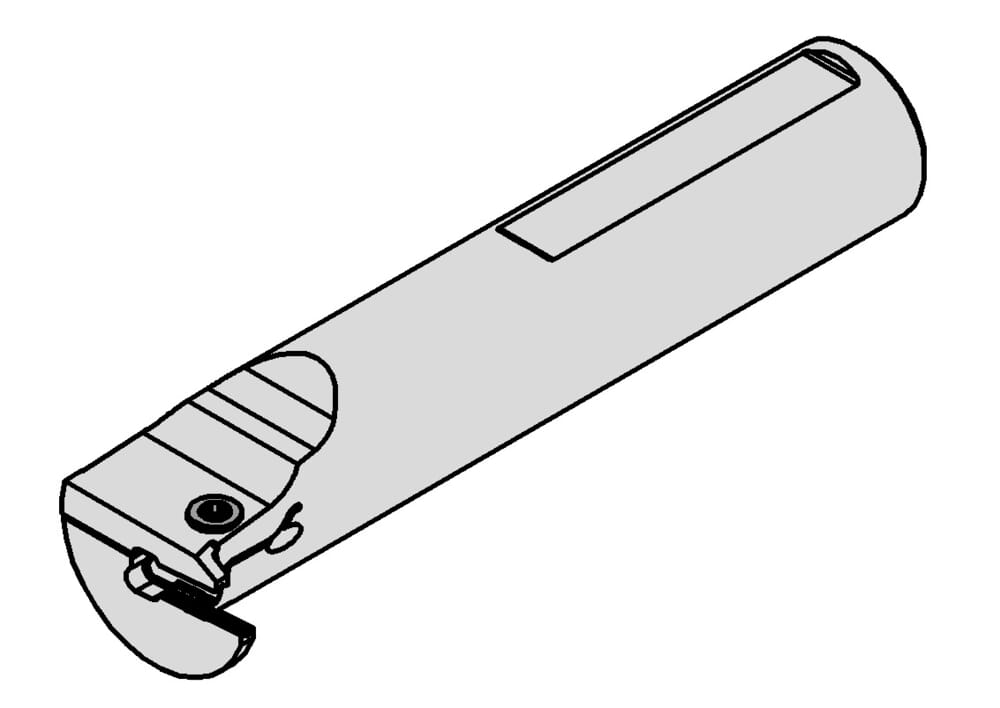

HORN Toolholders RB224.0020.0.01 for Turning
us-cutting
No
tool-application
static
machining-direction-sap
right
Width of groove (mm) (w)
0.079 ˝
2 mm
Katalog_CCTWS
224018
Distance of clamping surface (s) (h)
0.709 ˝
18 mm
Clamping range maximum (Spannbereich)
2.4 mm
Clamping range minimum (Spannbereich)
2 mm
Shank, clamping diameter (d)
0.787 ˝
20
Minimum drilling diameter (Dmin)
1.181 ˝
30 mm
Maximum depth of groove (tmax)
0.315 ˝
8 mm
Total length (including cutting insert) (l1)
5.118 ˝
130 mm
Adjustment dimension from center (f)
0.728 ˝
18.5 mm
| Downloads | |
|---|---|
| RB224_0020_0_01-DXF.DXF | Download |
| RB224_0020_0_01-STP.STP | Download |
| RB224_0020_0_01-ISO.XML | Download |
| RB224_0020_0_01-DIN.XML | Download |
| Download all files | |
