RB.1R4.0012.0.I.42
Material number RB1R400120I42

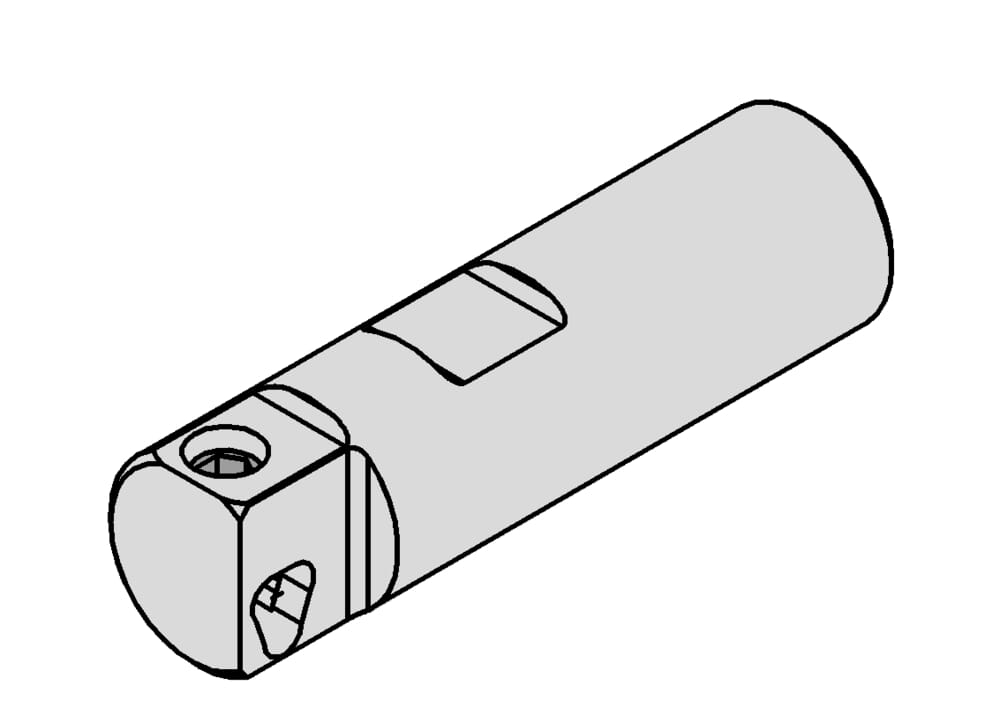

HORN Toolholder RB.1R4.0012.0.I.42 for Turning

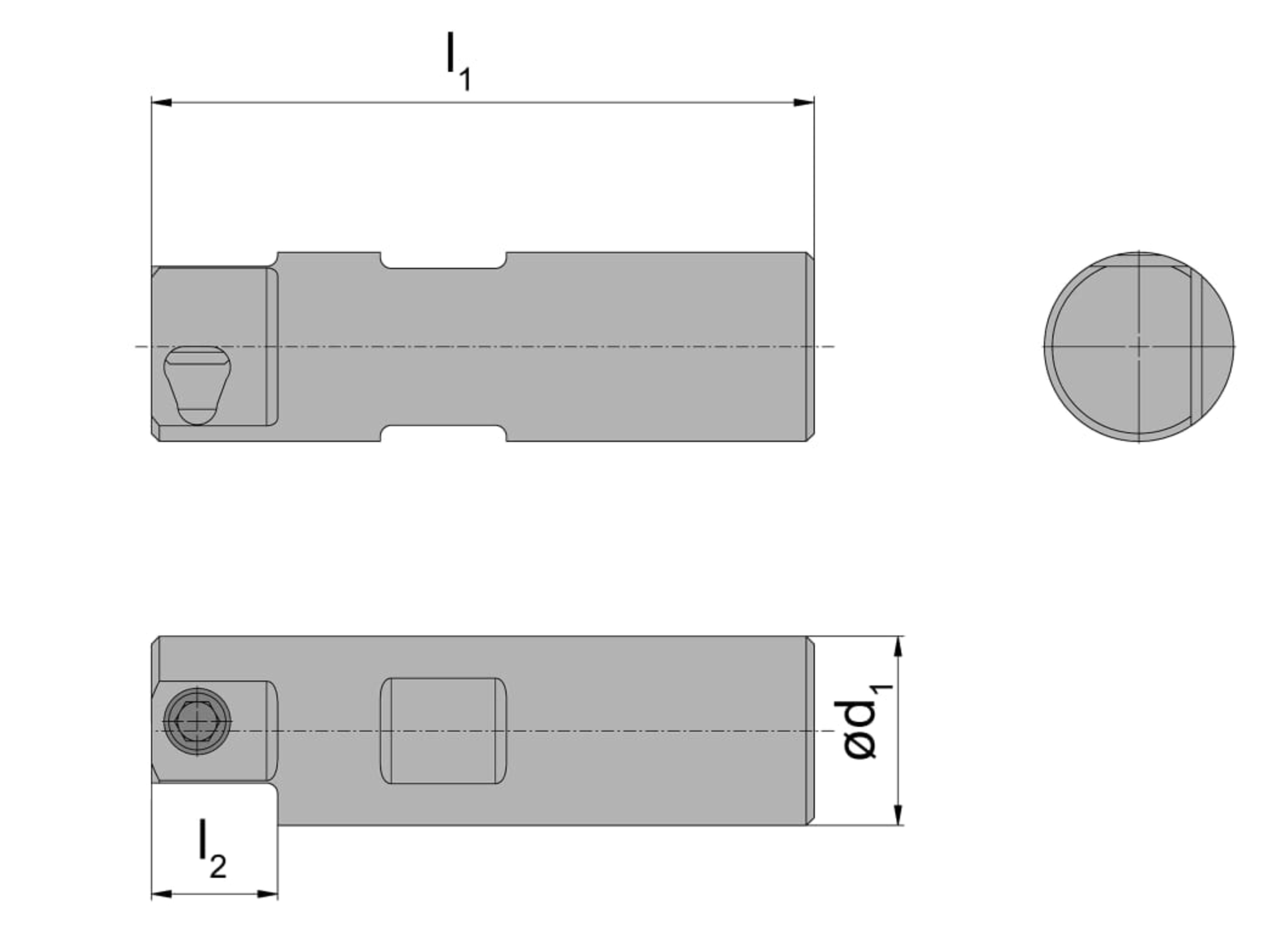

Shank diameter (d1)
0.472 ˝
12 mm
Length (l2)
0.315 ˝
8 mm
Total length (without cutting insert) (l1)
1.654 ˝
42 mm
Katalog_CCTWS
1R403
machining-direction-sap
right
tool-application
static
us-cutting
No
| Downloads | |
|---|---|
| RB_1R4_0012_0_I_42-DXF.DXF | Download |
| RB_1R4_0012_0_I_42-STP.STP | Download |
| RB_1R4_0012_0_I_42-ISO.XML | Download |
| RB_1R4_0012_0_I_42-DIN.XML | Download |
| Download all files | |
