R390.2020.01
Material number R390202001

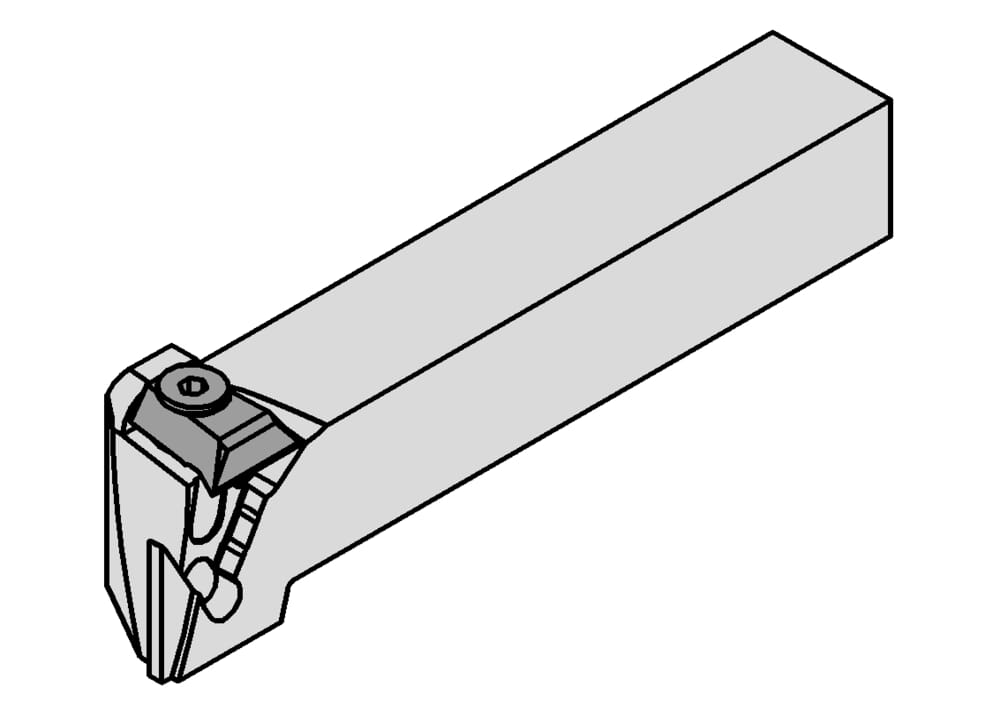

HORN grooving-toolholder R390.2020.01 for Turning
machining-direction-sap
right
Clamping range maximum (Spannbereich)
0.075 ˝
1.9 mm
Clamping range minimum (Spannbereich)
0.055 ˝
1.4 mm
Katalog_CCTWS
31201N;31201R;31201L
Adjustment dimension locating face insert (f1)
0.728 ˝
18.5 mm
Adjustment dimension (formula) (f)
f1+w-a1
tool-application
static
us-cutting
No
length-overall-imp
4.921 ˝
125 mm
Total length (including cutting insert) (l1)
4.921 ˝
125 mm
Shank height (h)
0.787 ˝
20 mm
Maximum depth of groove (tmax)
0.315 ˝
8 mm
Peak height (h1)
0.984 ˝
25 mm
Shank width (b)
0.787 ˝
20 mm
Head length (including cutting edge) (l2)
0.866 ˝
22 mm
| Downloads | |
|---|---|
| R390_2020_01-STP.STP | Download |
| R390_2020_01-ISO.XML | Download |
| R390_2020_01-DIN.XML | Download |
| R390_2020_01-DXF.DXF | Download |
| Download all files | |
