R360.2020.03.IK
Material number R360202003IK

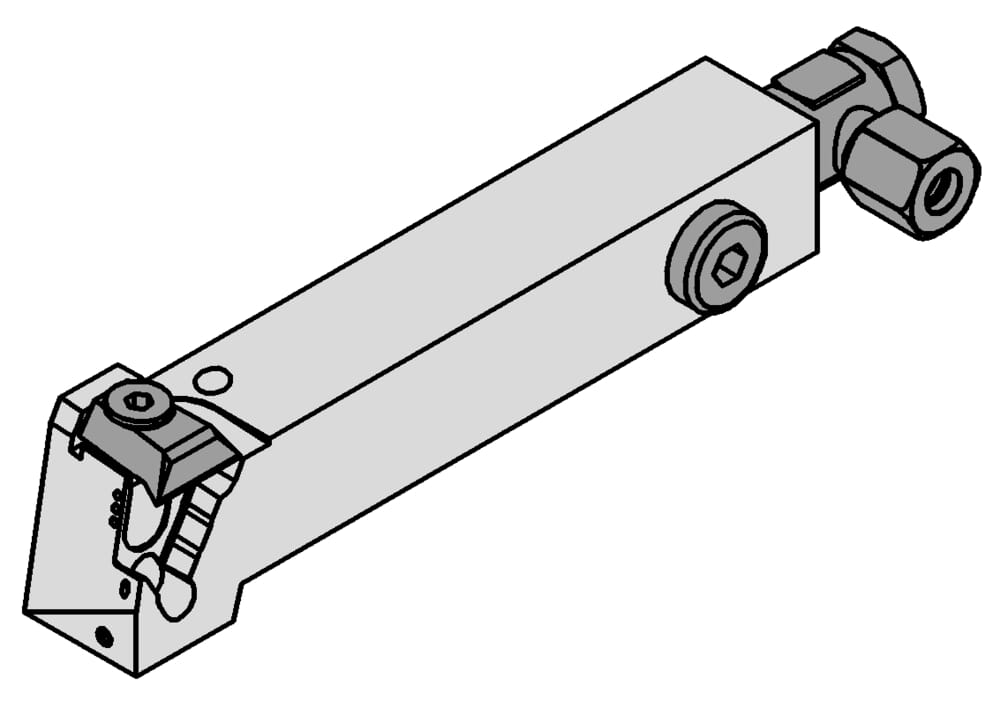

HORN Toolholder R360.2020.03.IK for Turning
Adjustment dimension (formula) (f)
f1+w-a1
Clamping range maximum (Spannbereich)
0.154 ˝
3.9 mm
Clamping range minimum (Spannbereich)
0.114 ˝
2.9 mm
Katalog_CCTWS
31203N;31203R;31203L
Adjustment dimension locating face insert (f1)
0.65 ˝
16.5 mm
machining-direction-sap
right
tool-application
static
us-cutting
No
length-overall-imp
4.921 ˝
125 mm
Total length (including cutting insert) (l1)
4.921 ˝
125 mm
Shank height (h)
0.787 ˝
20 mm
Maximum depth of groove (tmax)
0.236 ˝
6 mm
Peak height (h1)
0.984 ˝
25 mm
Shank width (b)
0.787 ˝
20 mm
Head length (including cutting edge) (l2)
0.827 ˝
21 mm
| Downloads | |
|---|---|
| R360_2020_03_IK-DXF.DXF | Download |
| R360_2020_03_IK-STP.STP | Download |
| R360_2020_03_IK-ISO.XML | Download |
| R360_2020_03_IK-DIN.XML | Download |
| Download all files | |
