R11P.P.Y.B.0005.A.30 PD11
Material number R11PPYB0005A30PD11

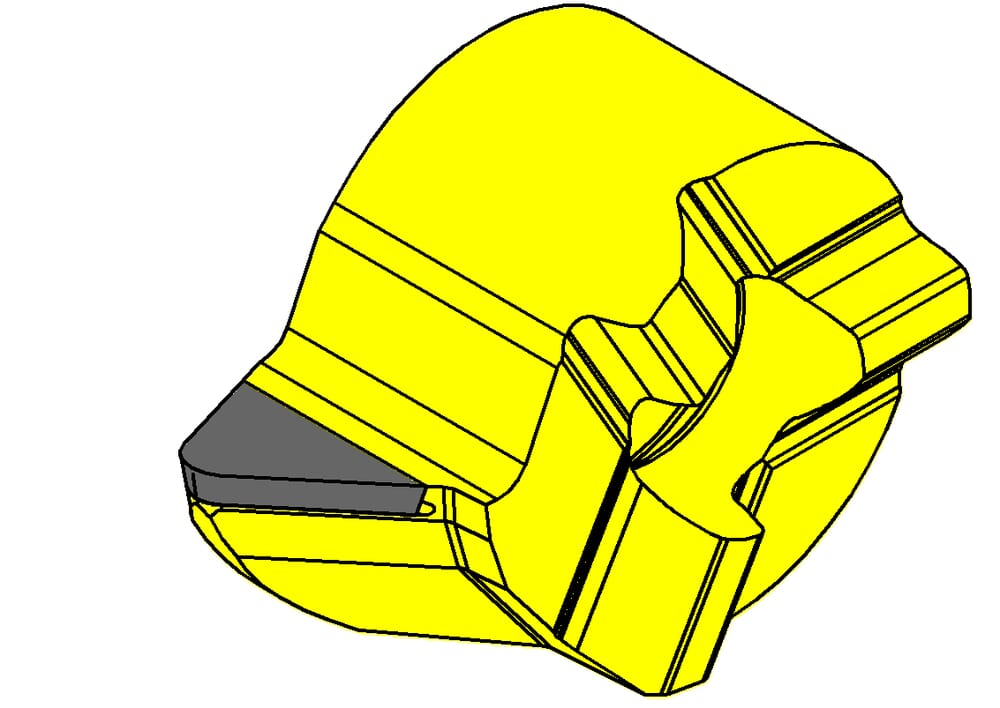

HORN Insert R11P.P.Y.B.0005.A.30 PD11 for Turning
Katalog_SSC
11P070R
tool-application
static

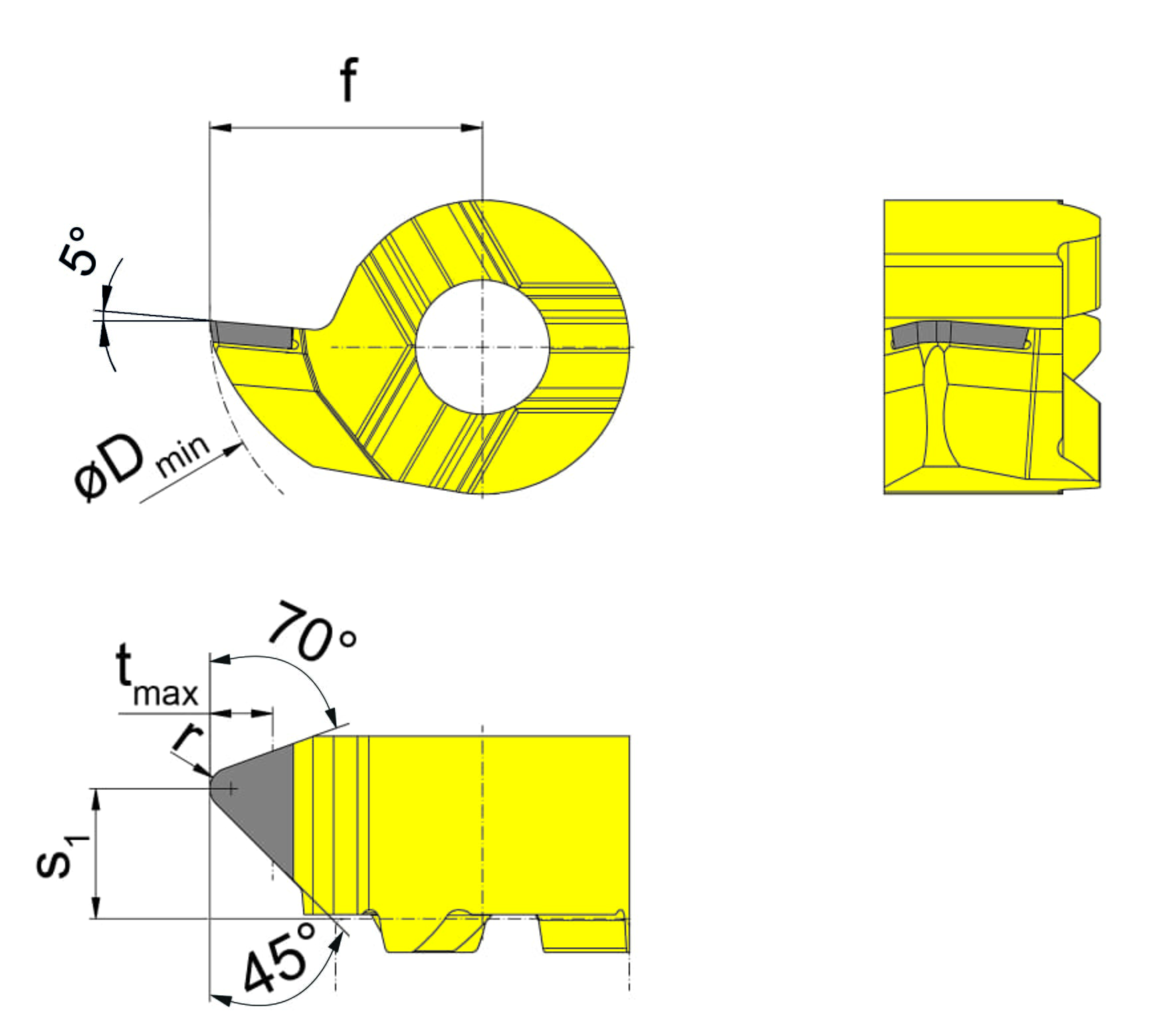

Smallest bore diameter (Dmin)
0.413 ˝
10.5 mm
setting-range-radial-imp
0.256 ˝
6.5 mm
Cutting insert thickness to cutting edge, setting length to cutting edge (s)
0.122 ˝
3.1 mm
machining-direction-sap
right
Top radius (r)
0.02 ˝
0.5 mm
Maximum depth of groove (tmax)
0.059 ˝
1.5 mm
