R11P.M.Y.B.0500.W.30 MD10
Material number R11PMYB0500W30MD10

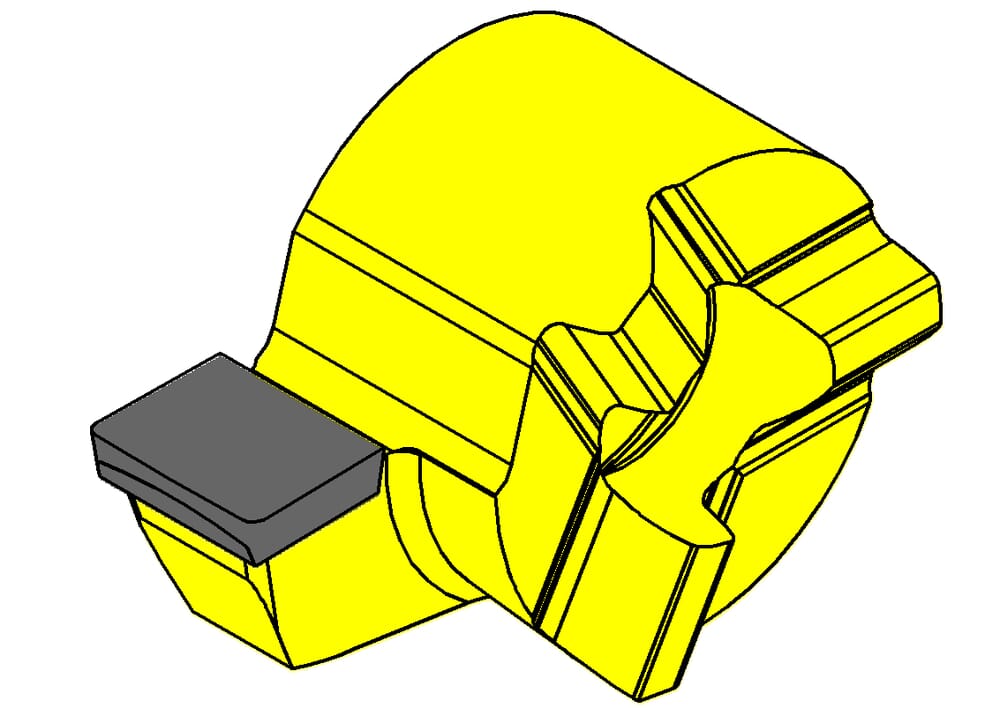

HORN Insert R11P.M.Y.B.0500.W.30 MD10 for Turning

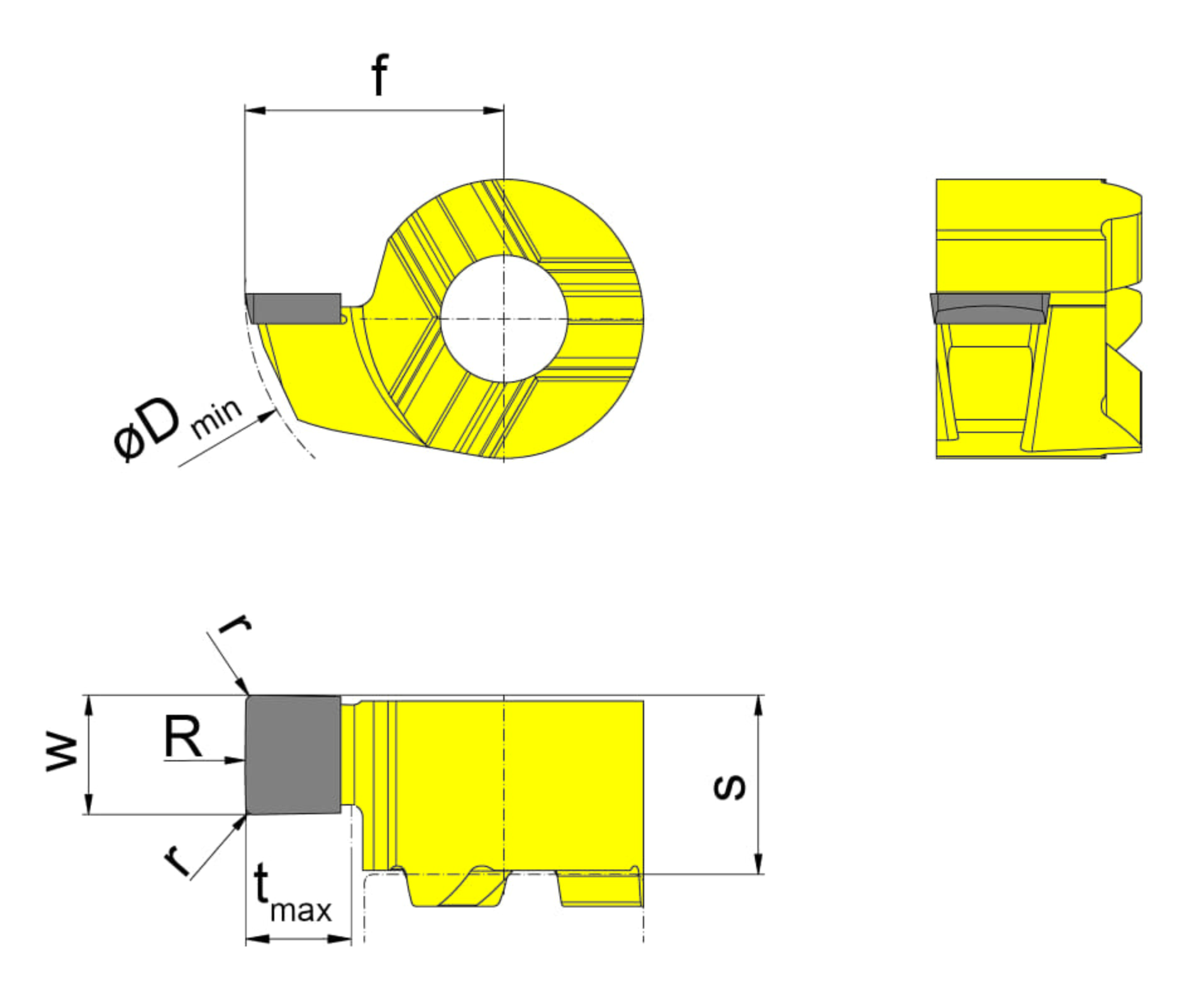

Width of groove (w)
0.118 ˝
3 mm
cutting
1
tool-application
static
Smallest bore diameter (Dmin)
0.453 ˝
11.5 mm
Setting range radial (f)
0.256 ˝
6.5 mm
Cutting insert thickness to cutting edge, setting length to cutting edge (s)
0.177 ˝
4.5 mm
Corner radius (r)
0.008 ˝
0.2 mm
Radius, full-radius (R)
1.969 ˝
50 mm
machining-direction-sap
right
Katalog_SSC
11P070R
Maximum depth of groove (tmax)
0.098 ˝
2.5 mm
