R11P.M.Y.B.0005.R.10 MD10

Material number R11PMYB0005R10MD10

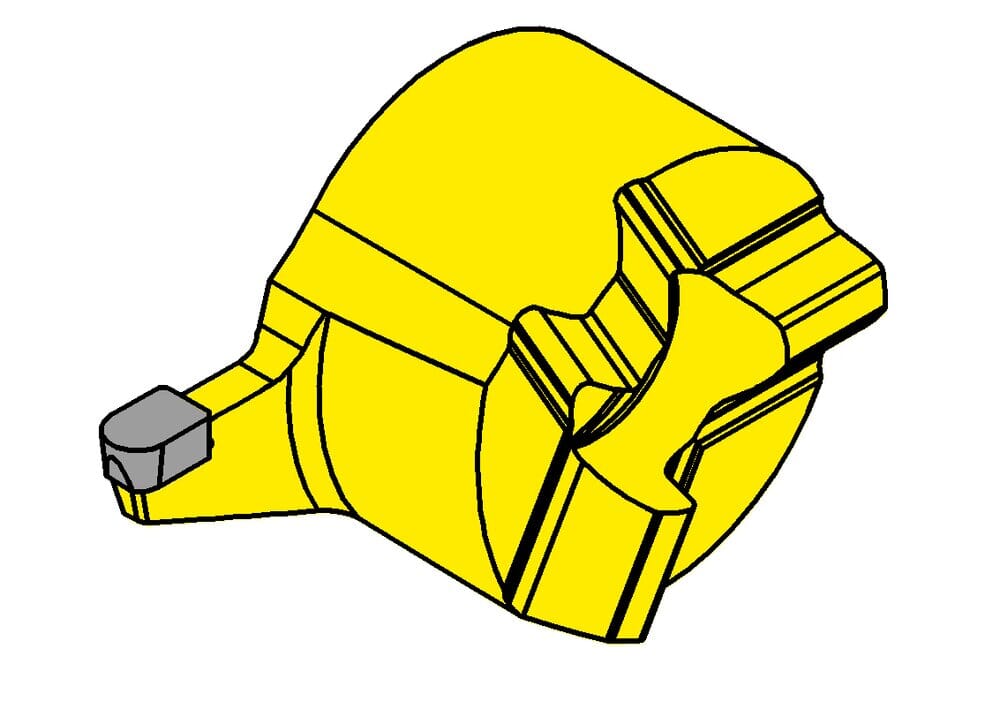

HORN Insert R11P.M.Y.B.0005.R.10 MD10 for Turning

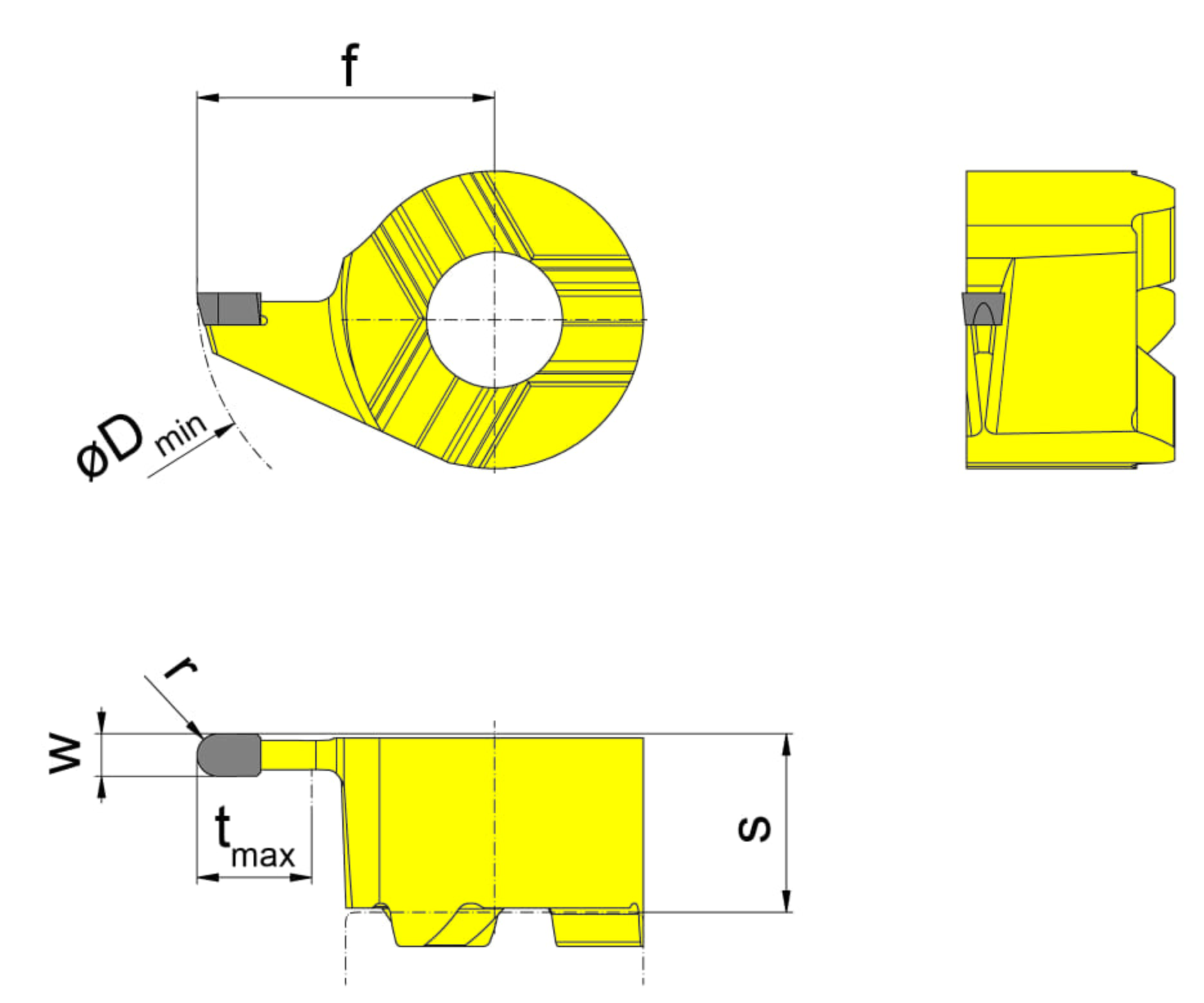

Cutting insert thickness to cutting edge, setting length to cutting edge (s)

0.165 ˝

4.2 mm

us-cutting

Yes

tool-application

static

Smallest bore diameter (Dmin)

0.453 ˝

11.5 mm

Setting range radial (f)

0.276 ˝

7 mm

Width of groove (mm) (w)

0.039 ˝

1 mm

Radius, full-radius (r)

0.02 ˝

0.5 mm

machining-direction-sap

right

Katalog_SSC

11P070R

Maximum depth of groove (tmax)

0.118 ˝

3 mm
