R114.VR10.00.BA CH1G

Material number R114VR1000BACH1G

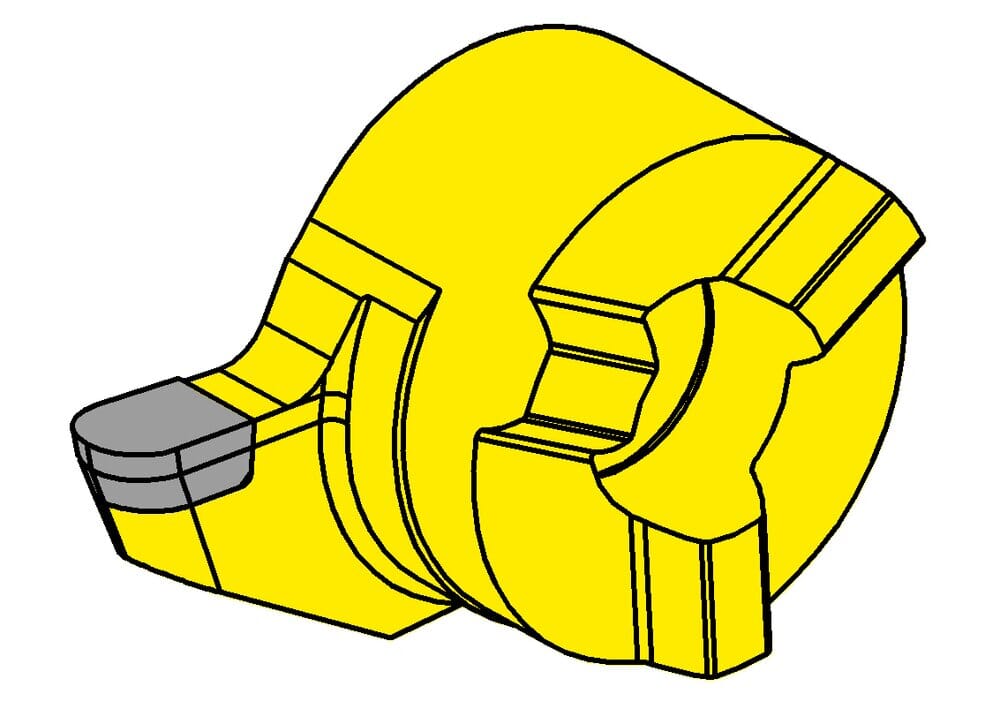

HORN Insert R114.VR10.00.BA CH1G for Turning

Cutting insert height, Cutting insert thickness (s)

0.209 ˝

5.3 mm

us-cutting

Yes

cutting

tool-application

static

machining-direction-sap

right

Smallest bore diameter (Dmin)

0.551 ˝

14 mm

Tooth diameter, head diameter (d)

0.354 ˝

9 mm

Setting range radial (f)

0.354 ˝

9 mm

Width of groove (mm) (w)

0.079 ˝

2 mm

Head size (a)

0.531 ˝

13.5 mm

Radius, full-radius (r)

0.039 ˝

1 mm

Katalog_SSC

114090R

full-radius-imp

0.039 ˝

1 mm

Maximum depth of groove (tmax)

0.157 ˝

4 mm
