R110.0100.5.8 TN35
Recommended:
Also suitable for:
Material number R110010058TN35

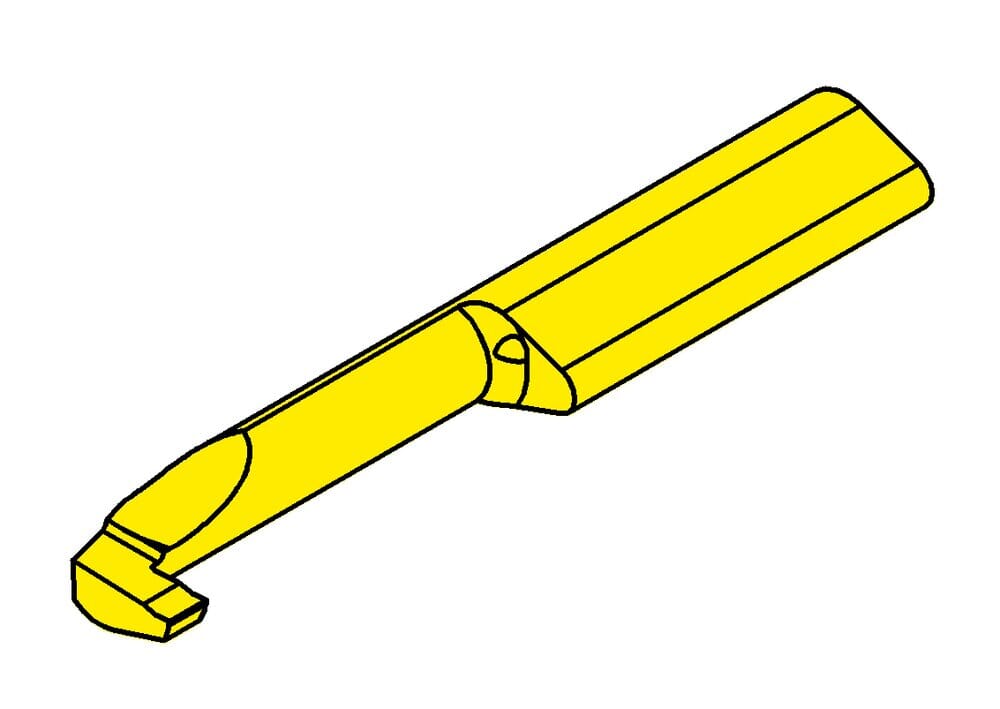

HORN Insert R110.0100.5.8 TN35 for Turning
Neck diameter (d)
0.165 ˝
4.2 mm
cutting
1
tool-application
static
machining-direction-sap
right
Smallest bore diameter (Dmin)
0.315 ˝
8 mm
Total length (l5)
2.362 ˝
60 mm
Setting range radial (f)
0.157 ˝
4 mm
Neck length (l2)
1.181 ˝
30 mm
Width of groove (mm) (w)
0.039 ˝
1 mm
Katalog_SSC
110260
Maximum depth of groove (tmax)
0.11 ˝
2.8 mm
Head size (a)
0.291 ˝
7.4 mm
| Downloads | |
|---|---|
| R110_0100_5_8_TN35-DXF.DXF | Download |
| R110_0100_5_8_TN35-STP.STP | Download |
| R110_0100_5_8_TN35-ISO.XML | Download |
| R110_0100_5_8_TN35-DIN.XML | Download |
| Download all files | |
