R107.1002.1.HF.P PD75

Material number R10710021HFPPD75

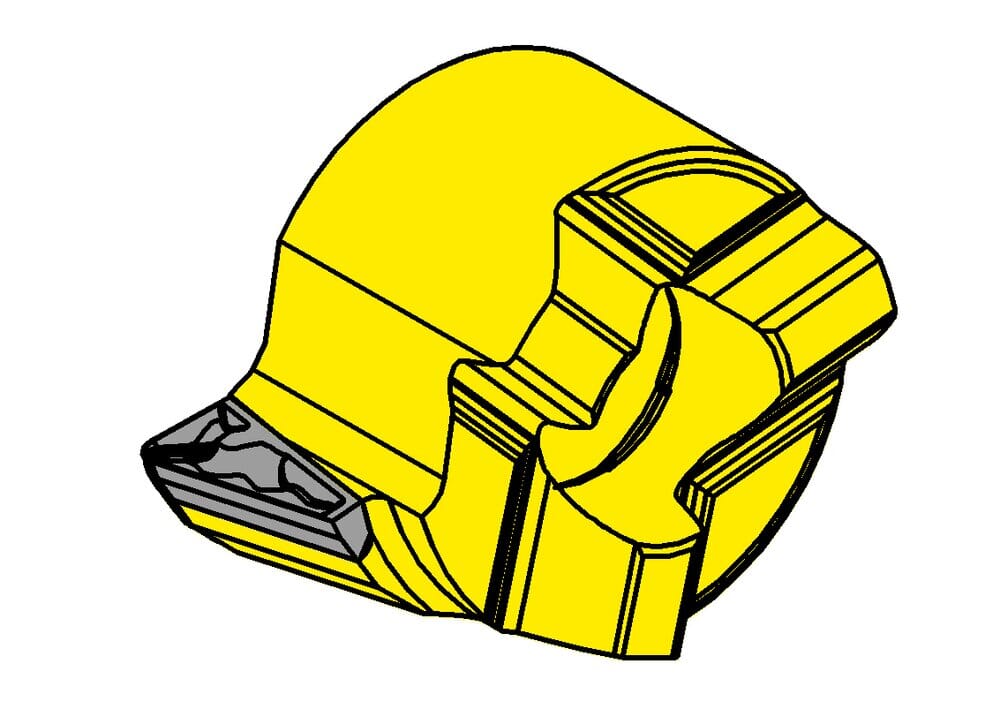

HORN Insert R107.1002.1.HF.P PD75 for Turning

Smallest bore diameter (Dmin)

0.268 ˝

6.8 mm

cutting

tool-application

static

machining-direction-sap

right

Cutting insert height, Cutting insert thickness (s)

0.13 ˝

3.3 mm

Tooth diameter, head diameter (d)

0.205 ˝

5.2 mm

Setting range radial (f)

0.146 ˝

3.7 mm

Top radius (r)

0.008 ˝

0.2 mm

Katalog_SSC

107052R

Maximum depth of groove (tmax)

0.012 ˝

0.3 mm

Head size (a)

0.248 ˝

6.3 mm
