R105.4502.003.0.06 ES15

Recommended:

Also suitable for:

Material number R1054502003006ES15

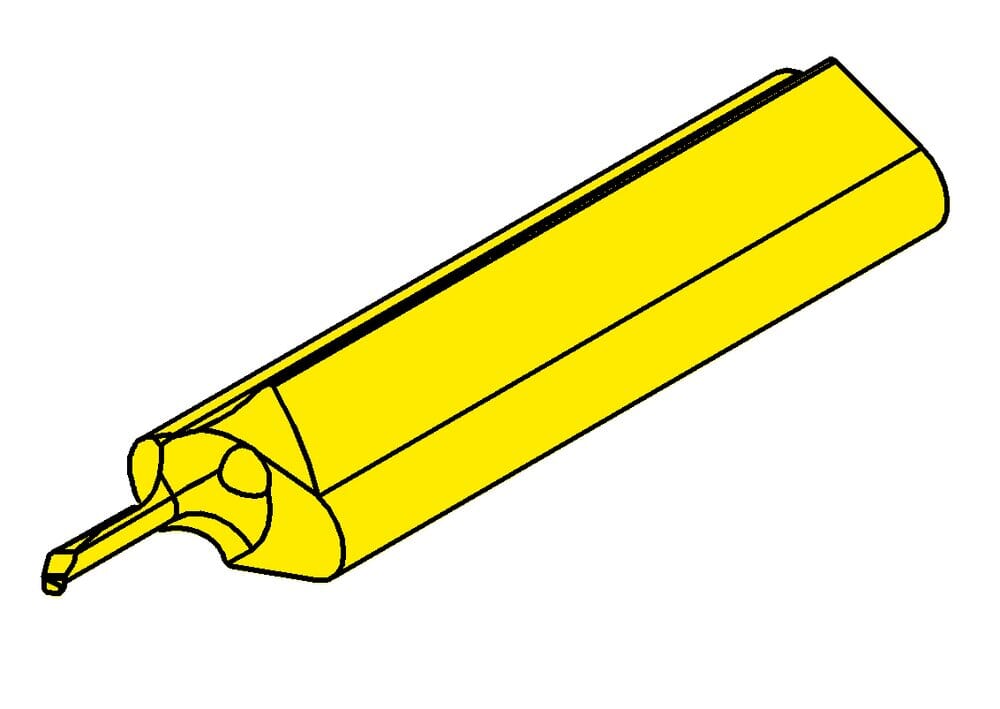

HORN Insert R105.4502.003.0.06 ES15 for Turning

Note: This insert is intended for low depths of cut where a high surface finish is required.

Width of groove (mm) (w)

0.001 ˝

0.03 mm

machining-direction-sap

right

cutting

tool-application

static

Smallest bore diameter (Dmin)

0.024 ˝

0.6 mm

Total length (l5)

0.984 ˝

25 mm

Setting range radial (f)

0.039 ˝

1 mm

Neck length (l2)

0.047 ˝

1.2 mm

Katalog_SSC

105123

Width of blank (b)

0.232 ˝

5.9 mm

Maximum depth of groove (tmax)

0.004 ˝

0.1 mm

Head size (a)

0.02 ˝

0.52 mm
