R105.2108.008.1.2 ES15
Recommended:
Also suitable for:
Material number R105210800812ES15

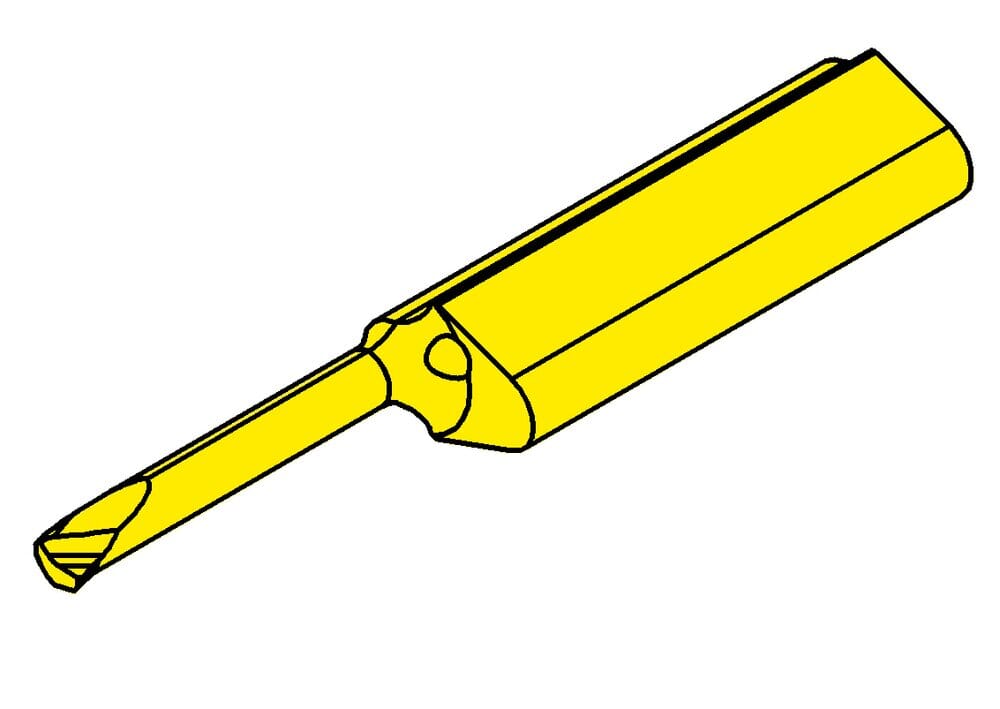

HORN Insert R105.2108.008.1.2 ES15 for Turning
Total length (l5)
0.984 ˝
25 mm
machining-direction-sap
right
tool-application
static
Smallest bore diameter (Dmin)
0.079 ˝
2 mm
Setting range radial (f)
0.039 ˝
1 mm
Neck diameter (d)
0.063 ˝
1.6 mm
Neck length (l2)
0.354 ˝
9 mm
Katalog_SSC
105123
Top radius (r)
0.003 ˝
0.08 mm
Width of blank (b)
0.232 ˝
5.9 mm
Maximum depth of groove (tmax)
0.006 ˝
0.15 mm
Head size (a)
0.075 ˝
1.9 mm
| Downloads | |
|---|---|
| R105210800812.STP | Download |
| R105210800812_20240205_174243335.DXF | Download |
| Download all files | |
