R105.1813.2.3 MG12
Recommended:
Material number R105181323MG12

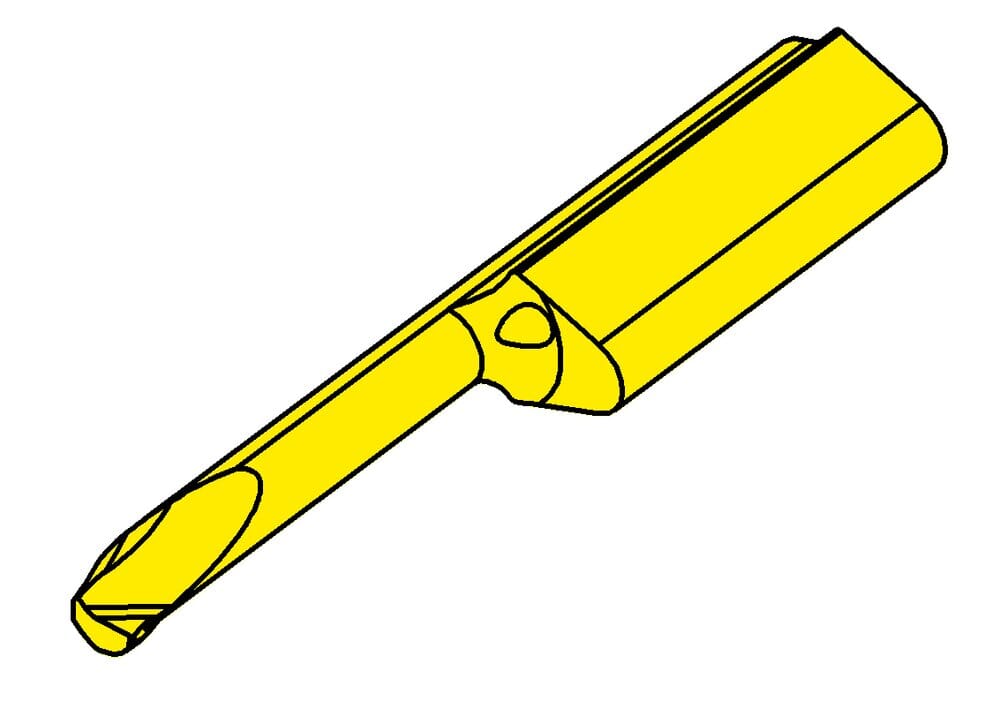

HORN Inserts R105.1813.2.3 MG12 for Turning
Setting range radial (f)
0.051 ˝
1.3 mm
tool-application
static
machining-direction-sap
right
Smallest bore diameter (Dmin)
0.118 ˝
3 mm
Total length (l5)
1.181 ˝
30 mm
Neck diameter (d)
0.091 ˝
2.3 mm
Neck length (l2)
0.591 ˝
15 mm
Katalog_SSC
105123
Top radius (r)
0.008 ˝
0.2 mm
Width of blank (b)
0.232 ˝
5.9 mm
Maximum depth of groove (tmax)
0.006 ˝
0.15 mm
Head size (a)
0.102 ˝
2.6 mm
| Downloads | |
|---|---|
| R105181323_20210626_153032828.DXF | Download |
| R105181323_20210630_145655419.STP | Download |
| Download all files | |
