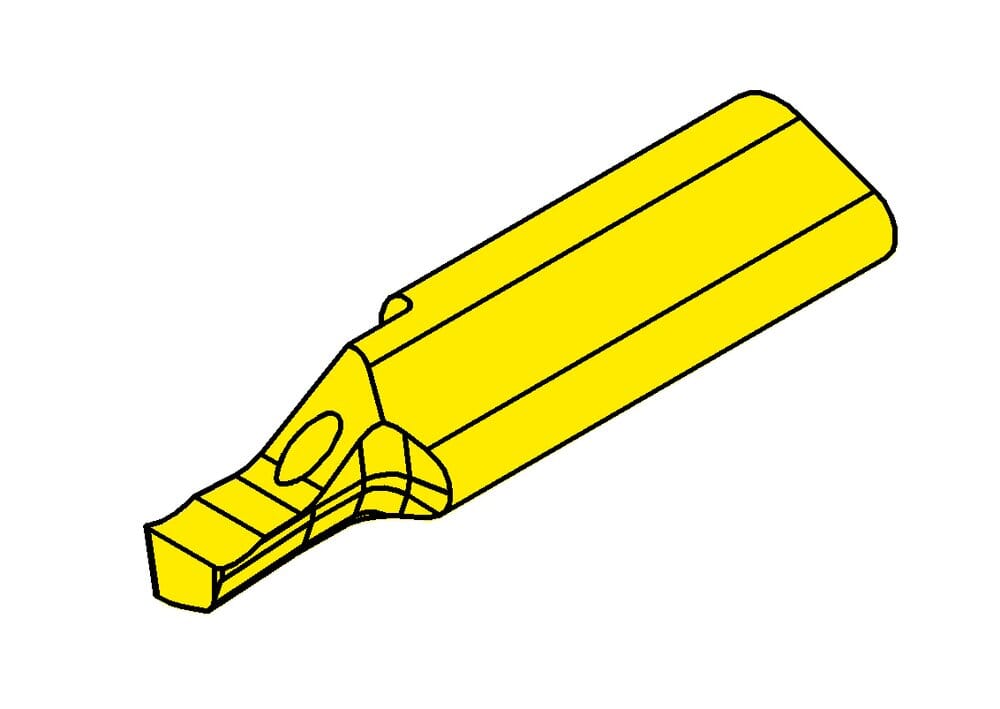

HORN insert R105.0815.1.9 EG35 for Turning
Corner radius (r)
0.006 ˝
0.15 mm
us-cutting
Yes
cutting
1
machining-direction-sap
right
tool-application
static
Total length (l5)
0.984 ˝
25 mm
Width of groove (mm) (w)
0.059 ˝
1.5 mm
Neck length (l2)
0.394 ˝
10 mm
Katalog_SSC
105125
Smallest axial bore diameter (Da min)
0.315 ˝
8 mm
Width of blank (b)
0.276 ˝
7 mm
Maximum depth of groove (tmax a)
0.118 ˝
3 mm
Adjustment dimension cutting center (f)
0.016 ˝
0.4 mm
