DG10.C10.01.2.05.2A PD70
Material number DG10C10012052APD70

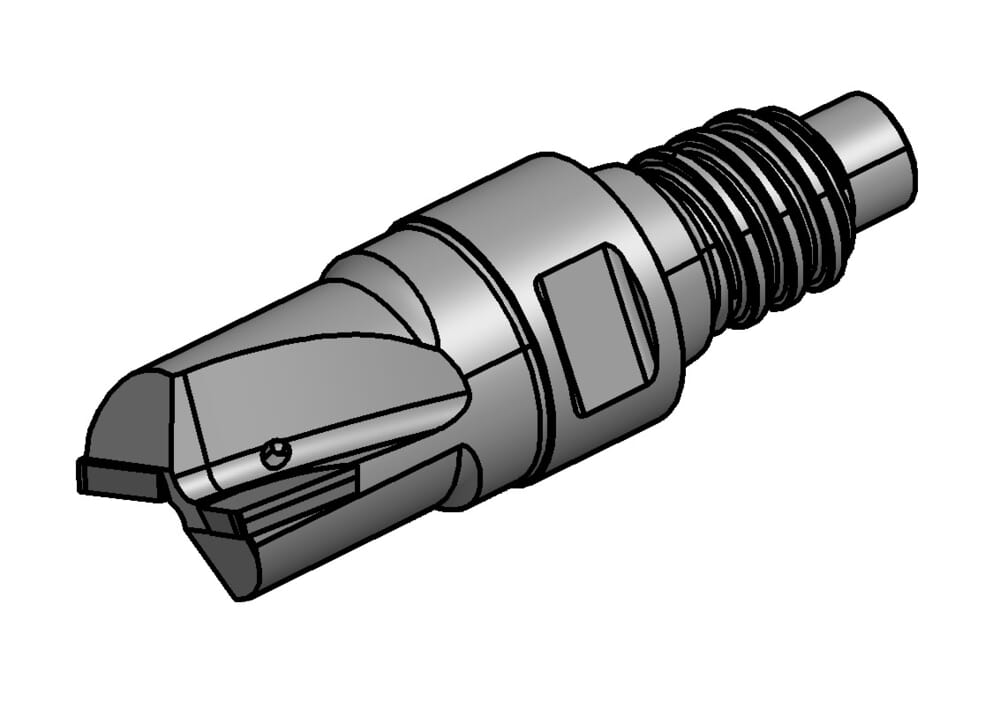

HORN Milling Head PCD tipped DG10.C10.01.2.05.2A PD70 for Milling
Corner bevel (45 ° x b) (b x 45°)
0.004 ˝
0.1 mm
us-cutting
Yes
Tool length from stop, flange (l1)
0.709
18
Effective cutting length (l2)
0.197 ˝
5 mm
Key range (SW)
0.315 ˝
8 mm
tool-application
rotating
Cutting diameter (d1)
0.394 ˝
10 mm
Shank diameter (d2)
0.386 ˝
9.8 mm
| Downloads | |
|---|---|
| DG10_C10_01_2_05_2A_PD70-STP.STP | Download |
| DG10_C10_01_2_05_2A_PD70-ISO.XML | Download |
| DG10_C10_01_2_05_2A_PD70-DIN.XML | Download |
| DG10_C10_01_2_05_2A_PD70-DXF.DXF | Download |
| Download all files | |
