R229.3040.HA50.12 AS65
Material number R2293040HA5012AS65

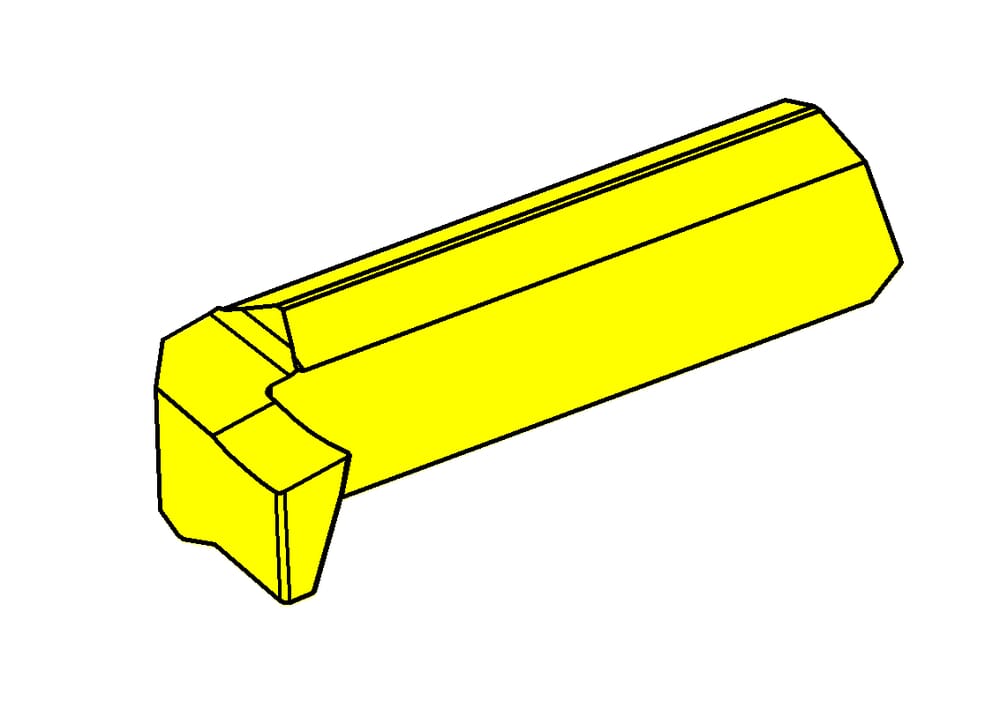

HORN insert R229.3040.HA50.12 AS65 for Turning

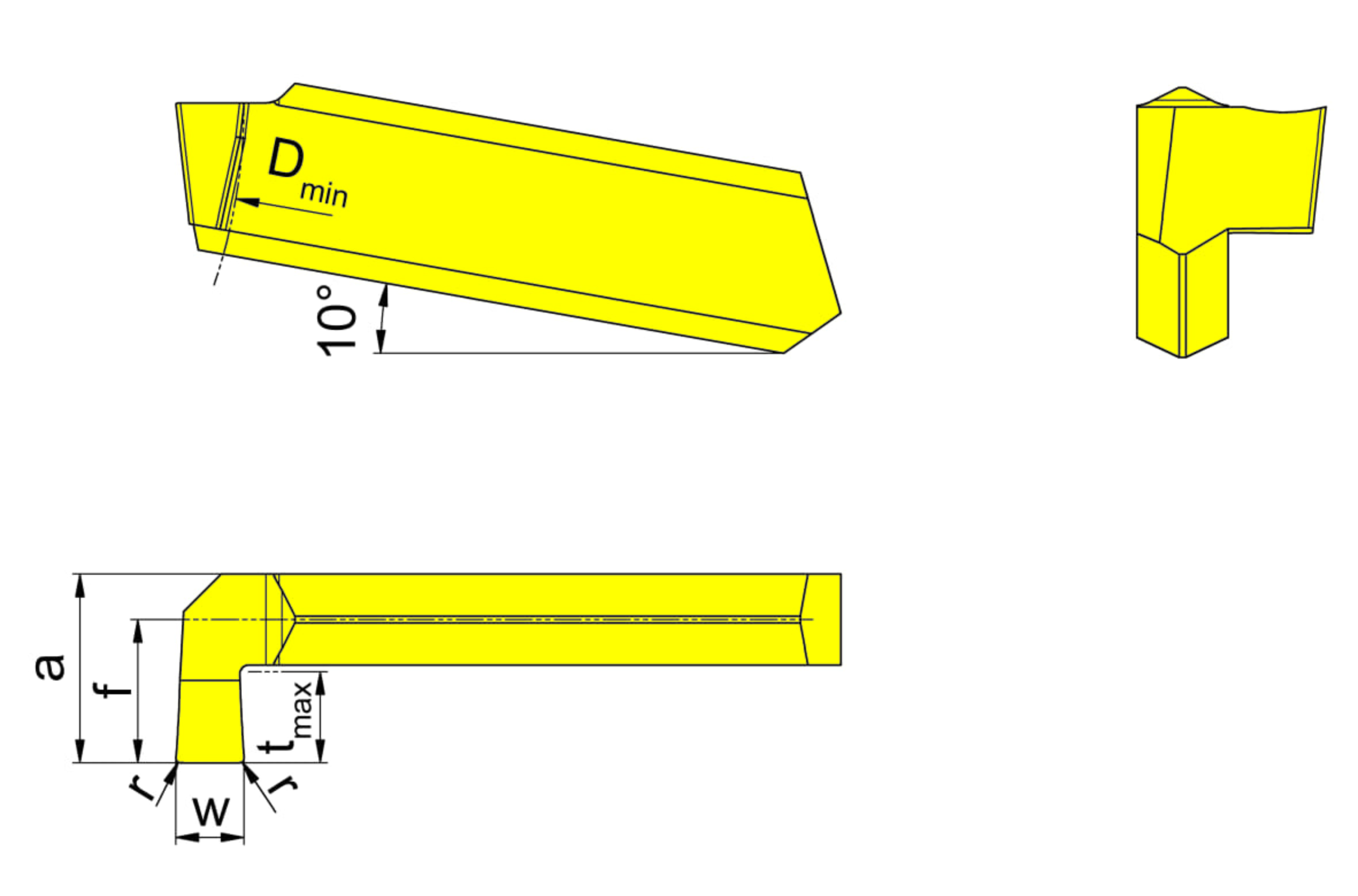

Width of groove (w)
0.118 ˝
3 mm
machining-direction-sap
right
tool-application
static
Setting range radial (f)
0.248 ˝
6.3 mm
Corner radius (r)
0.008 ˝
0.2 mm
Head size (a)
0.327 ˝
8.3 mm
Katalog_SSC
229040
Smallest axial bore diameter (Dmin)
1.969 ˝
50 mm
Maximum depth of groove (tmax)
0.157 ˝
4 mm
| Downloads | |
|---|---|
| R2293040HA5012.DXF | Download |
| R2293040HA5012_20210630_172319284.STP | Download |
| Download all files | |
