P105.3025.25.75.01 EG35
Material number P1053025257501EG35

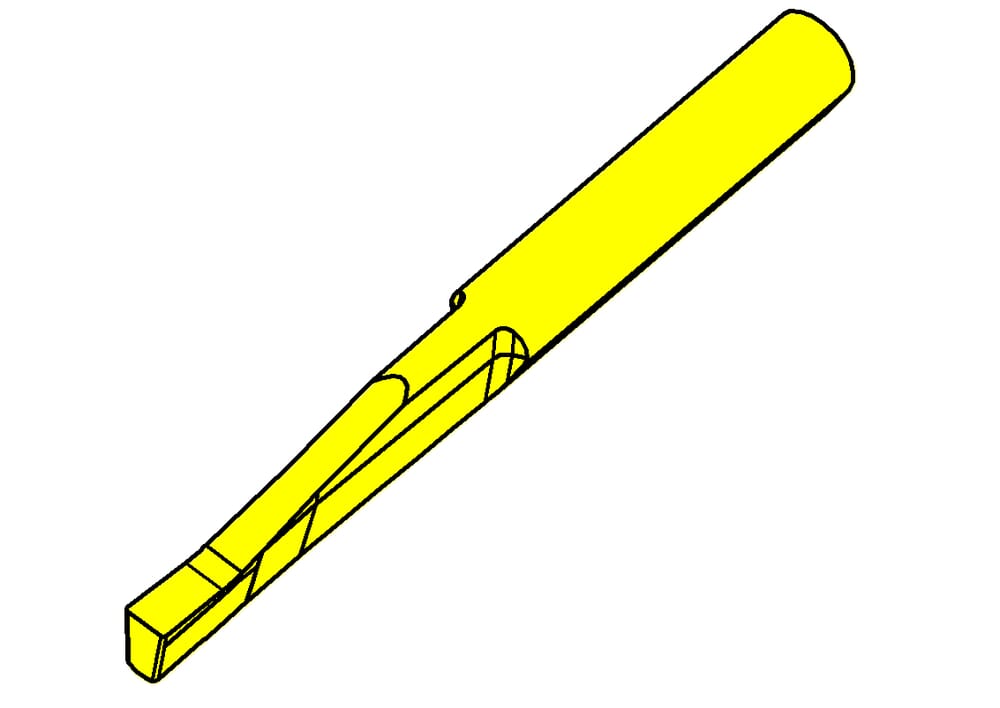

HORN Speed Forming insert P105.3025.25.75.01 EG35 for Speed-Forming
tool-application
static

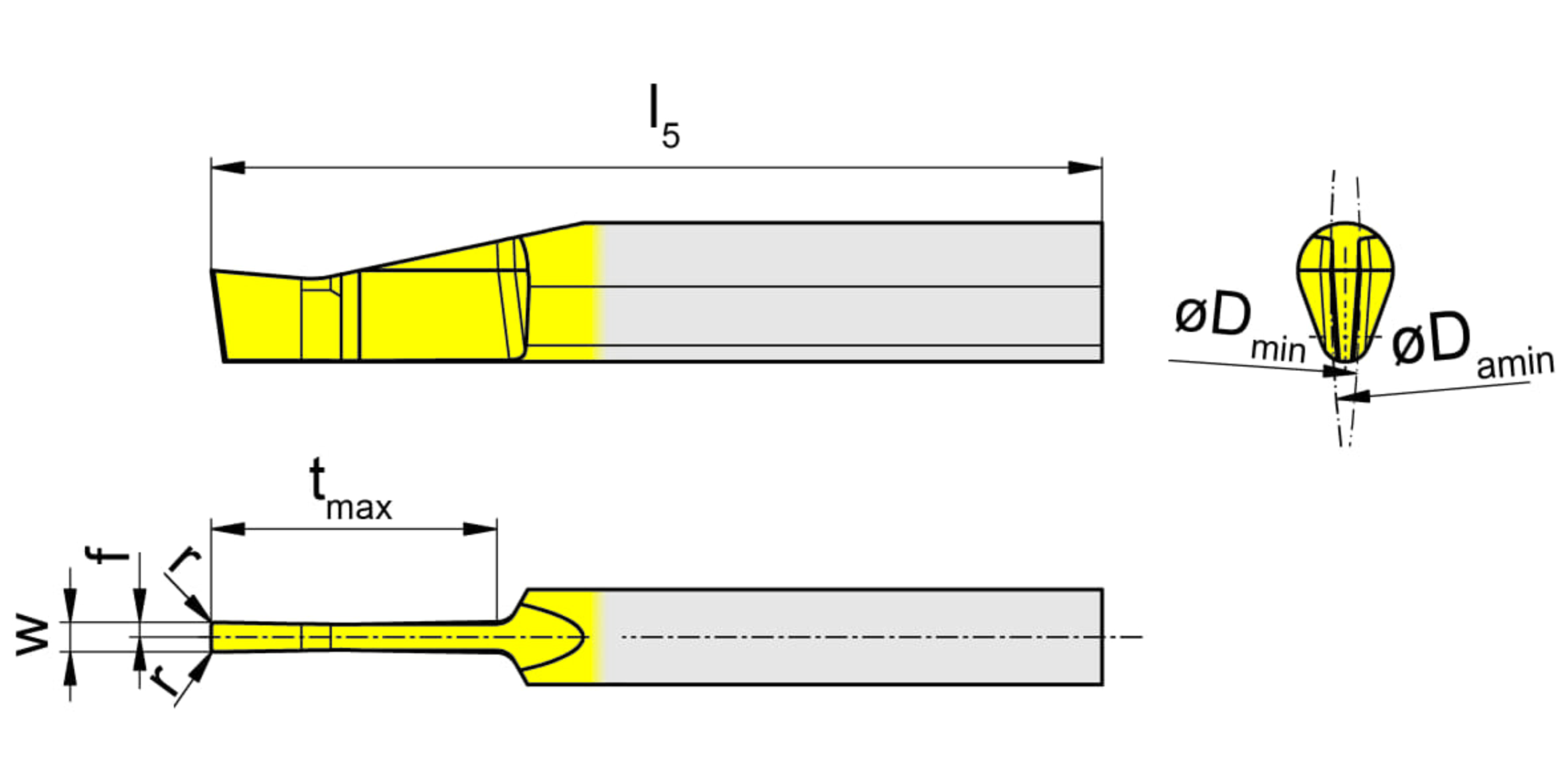

Smallest bore diameter (Dmin)
5.906 ˝
150 mm
Total length (l5)
2.165 ˝
55 mm
Width of groove (mm) (w)
0.118 ˝
3 mm
Corner radius (r)
0.01 ˝
0.25 mm
Katalog_CCTWS
105225
Adjustment dimension cutting center (f)
0.059 ˝
1.5 mm
Katalog_SSC
105225
Smallest axial bore diameter (Da min)
5.906 ˝
150 mm
Width of blank (b)
0.276 ˝
7 mm
Maximum depth of groove (tmax)
0.984 ˝
25 mm
