L105.0407.2.5 TN35
Material number L105040725TN35

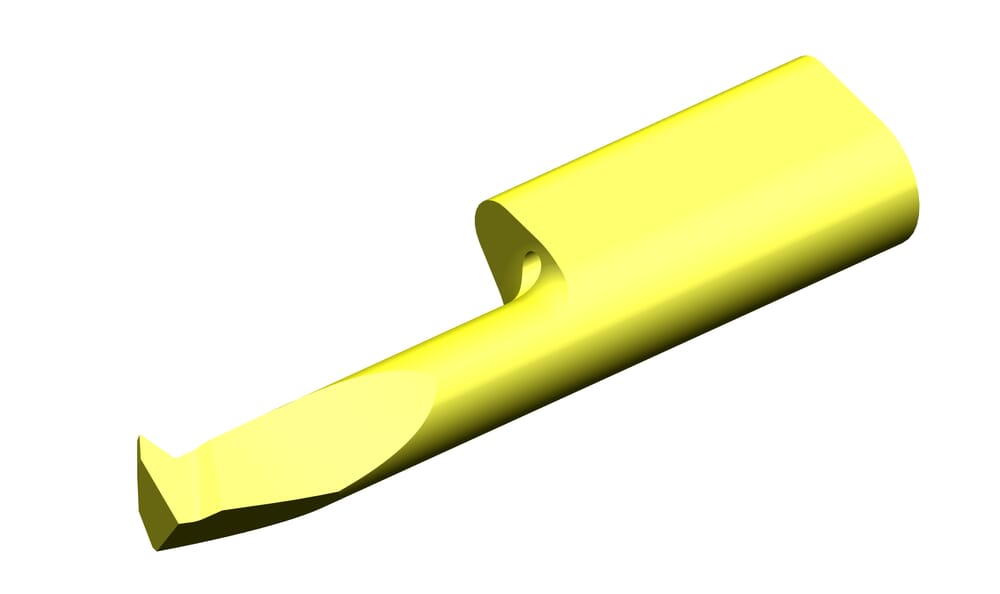

HORN Inserts L105.0407.2.5 TN35 for Gewinden
Pitch (P)
0.02 ˝
0.5 mm
tool-application
static
machining-direction-sap
left
Maximum pitch (Pmax)
0.03 ˝
0.75 mm
Smallest bore diameter (Dmin)
0.197 ˝
5 mm
Setting length (E)
0.018 ˝
0.45 mm
Cutting insert width (a)
0.185 ˝
4.7 mm
Setting range radial (f)
0.091 ˝
2.3 mm
Neck diameter (d)
0.138 ˝
3.5 mm
Neck length (l2)
0.591 ˝
15 mm
Katalog_SSC
105125
Width of blank (b)
0.276 ˝
7 mm
Cutting insert total length (l5)
1.181 ˝
30 mm
| Downloads | |
|---|---|
| L105_2428_2_6_20251016_144303267.STP | Download |
| L105040725_20210625_233936858.DXF | Download |
| Download all files | |
