L105.0150.1.6 EG35
Material number L105015016EG35

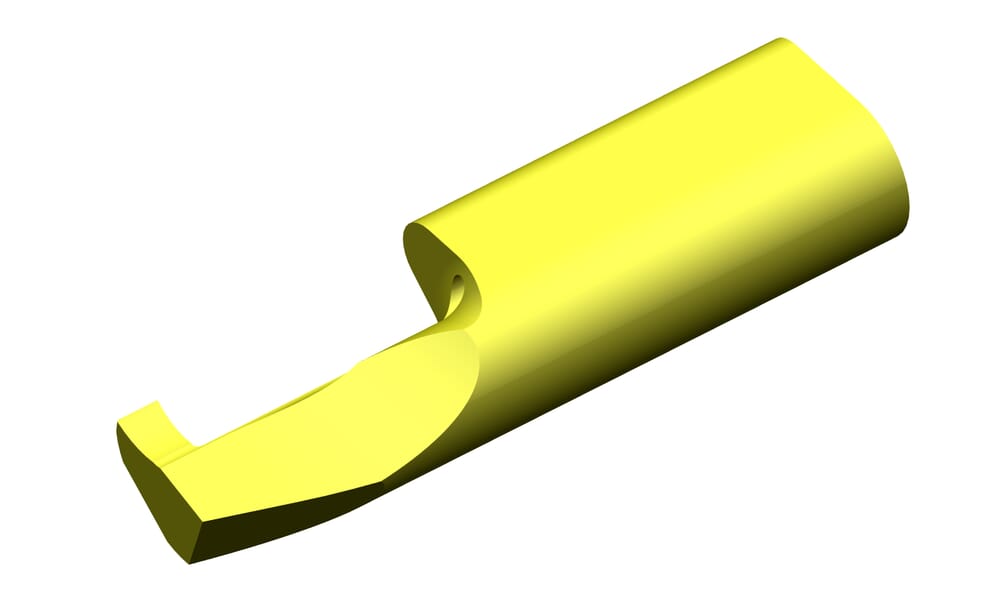

HORN Insert L105.0150.1.6 EG35 for Turning
Setting range radial (f)
0.13 ˝
3.3 mm
tool-application
static
machining-direction-sap
left
Smallest bore diameter (Dmin)
0.236 ˝
6 mm
Total length (l5)
0.984 ˝
25 mm
Neck diameter (d)
0.146 ˝
3.7 mm
Width of groove (mm) (w)
0.059 ˝
1.5 mm
Neck length (l2)
0.394 ˝
10 mm
Katalog_SSC
105125
Width of blank (b)
0.276 ˝
7 mm
Maximum depth of groove (tmax)
0.071 ˝
1.8 mm
Head size (a)
0.224 ˝
5.7 mm
| Downloads | |
|---|---|
| L105_2428_2_6_20251016_144303267.STP | Download |
| L105015016_20210625_225748629.DXF | Download |
| Download all files | |
