L105.0100.3.4 MG12
Material number L105010034MG12
HORN Inserts L105.0100.3.4 MG12 for Turning

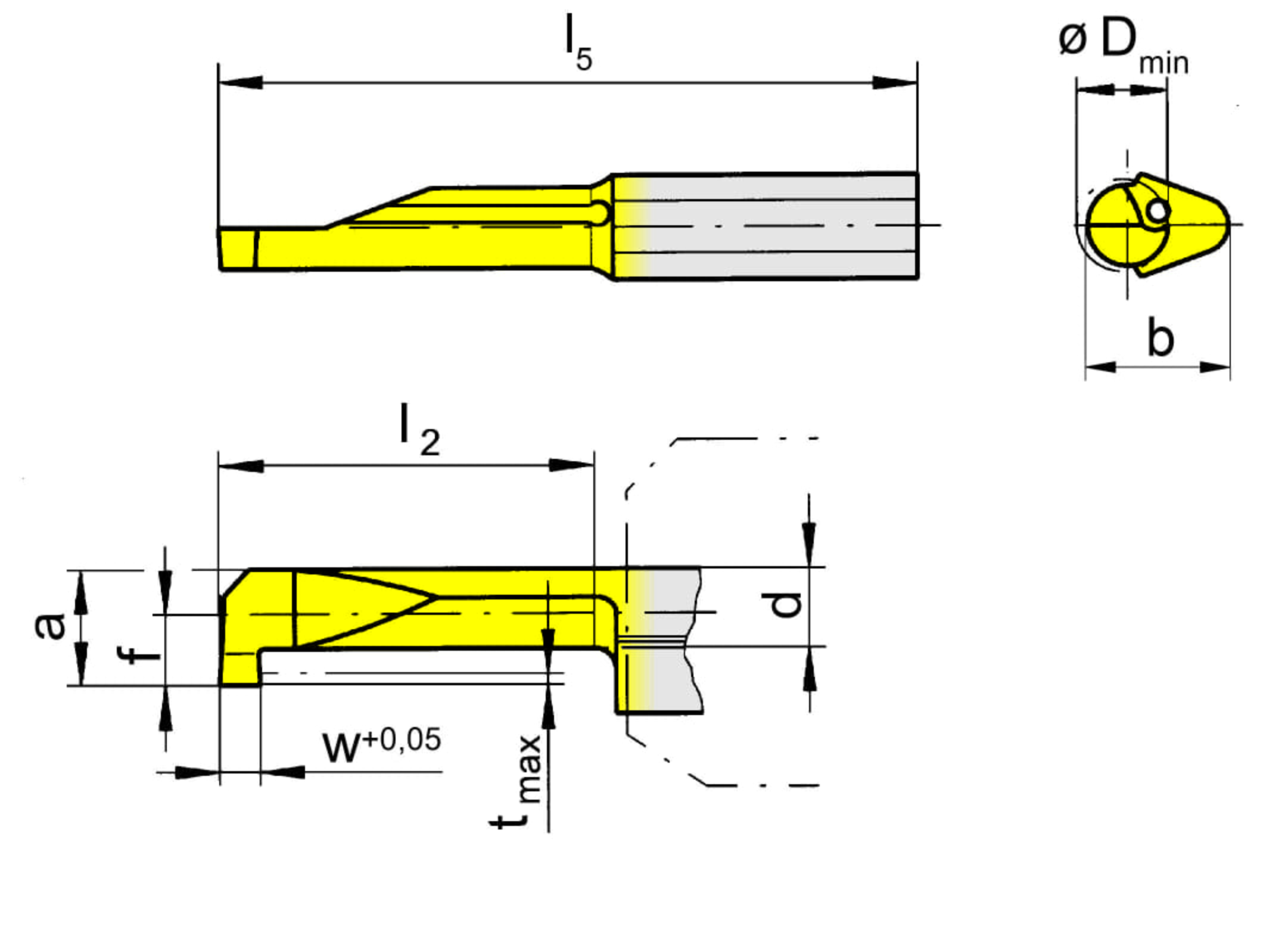

Setting range radial (f)
0.075 ˝
1.9 mm
tool-application
static
machining-direction-sap
left
Smallest bore diameter (Dmin)
0.157 ˝
4 mm
Total length (l5)
1.378 ˝
35 mm
Neck diameter (d)
0.106 ˝
2.7 mm
Width of groove (mm) (w)
0.039 ˝
1 mm
Neck length (l2)
0.787 ˝
20 mm
Katalog_SSC
105124
Width of blank (b)
0.252 ˝
6.4 mm
Maximum depth of groove (tmax)
0.031 ˝
0.8 mm
Head size (a)
0.146 ˝
3.7 mm
| Downloads | |
|---|---|
| L105_2428_2_6_20251016_144303267.STP | Download |
| L105010034_20210625_224318418.DXF | Download |
| Download all files | |
