L105.0070.1.3 TI25
Material number L105007013TI25

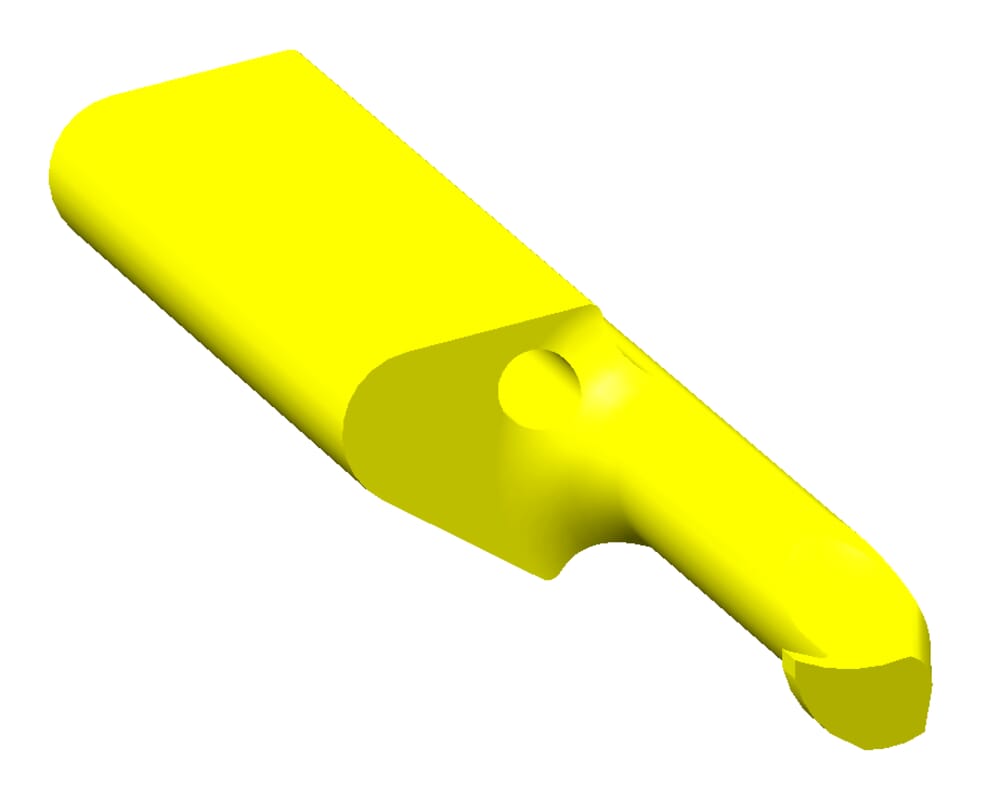

HORN Insert L105.0070.1.3 TI25 for Turning
Setting range radial (f)
0.055 ˝
1.4 mm
tool-application
static
machining-direction-sap
left
Smallest bore diameter (Dmin)
0.118 ˝
3 mm
Total length (l5)
0.984 ˝
25 mm
Neck diameter (d)
0.075 ˝
1.9 mm
Width of groove (mm) (w)
0.028 ˝
0.7 mm
Neck length (l2)
0.315 ˝
8 mm
Katalog_SSC
105123
Width of blank (b)
0.232 ˝
5.9 mm
Maximum depth of groove (tmax)
0.024 ˝
0.6 mm
Head size (a)
0.106 ˝
2.7 mm
| Downloads | |
|---|---|
| L105_2428_2_6_20251016_144303267.STP | Download |
| L105007013.DXF | Download |
| Download all files | |
