HU117.0500.10
Material number HU117050010

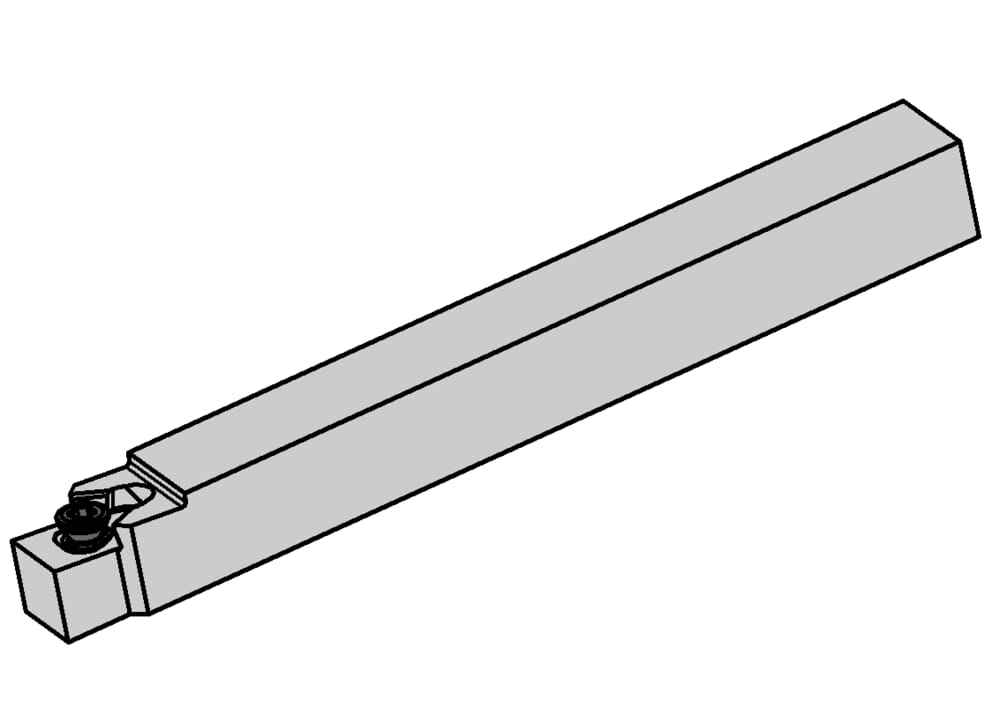

HORN Toolholders HU117.0500.10 for Turning
Width of groove (mm) (w)
0.394 ˝
10 mm
tool-application
static
tightening_torque
5 Nm
Form (Figur)
B
Semi-finished insert (Schneidplatte)
S117.0010.00
size
10
Insertion angle (α)
5 °
Working length (l2)
0.303 ˝
7.7 mm
Shank width (b)
0.5 ˝
12.7 mm
Katalog_CCTWS
1170805
Peak height (h1)
0.5 ˝
12.7 mm
Shank height (h)
0.5 ˝
12.7 mm
Total length (including cutting insert) (l1)
4.921 ˝
125 mm
| Downloads | |
|---|---|
| HU117050010_20230112_195724377.STP | Download |
| HU117050010.DXF | Download |
| Download all files | |
