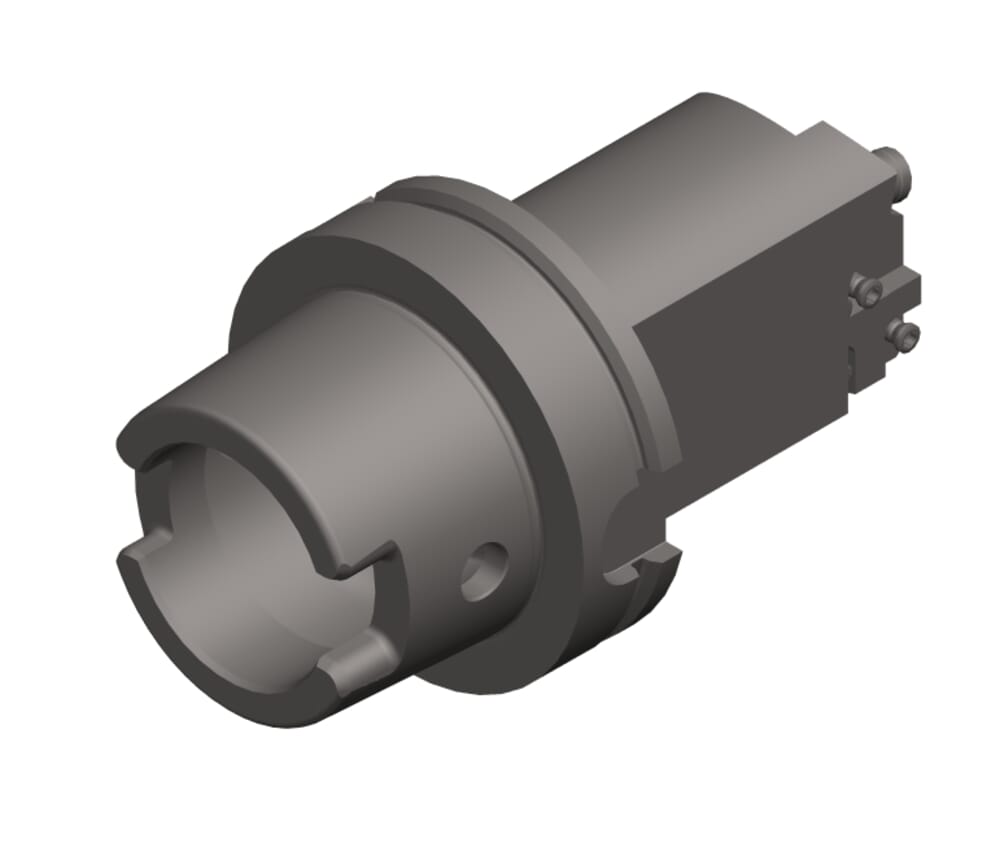

HSKT100R220150K1_PICTO.TIF HSKT100L220150K1.TIF

HSKT100.R220.150.K1.IK

ABSTECHEN_20210506_153854505.EPS IK_GENERELL.EPS AXIALSTECHEN.EPS AUSSEN_EINSTECHEN.EPS

Material number HSKT100R220150K1IK

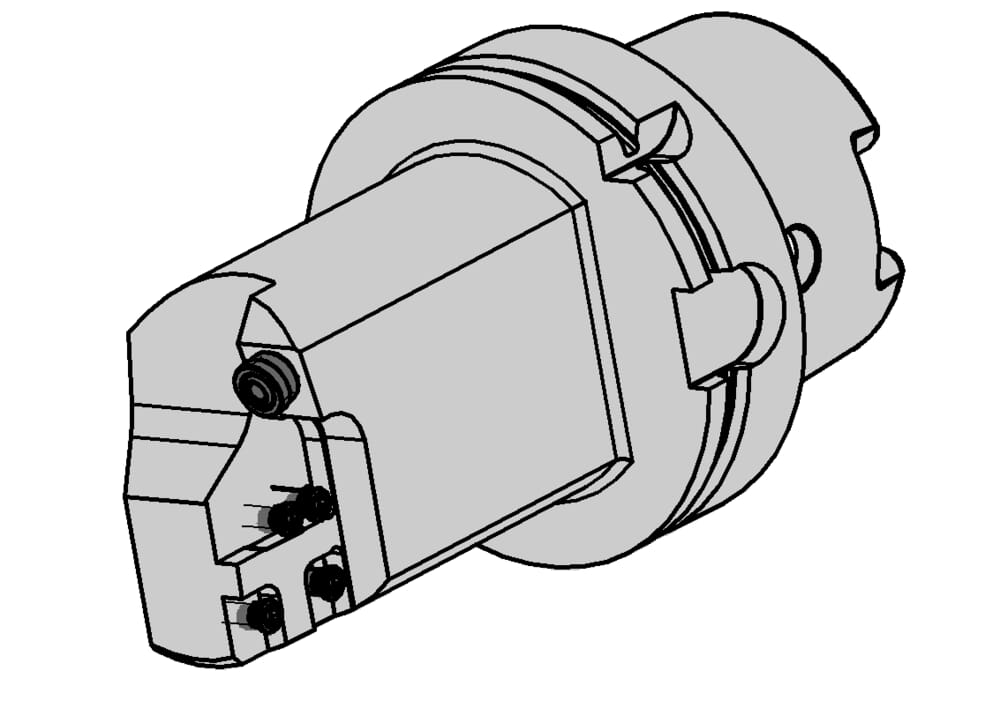

HORN Basic body HSKT100.R220.150.K1.IK for Turning

Cutting data and technical instructions

tool-application
static

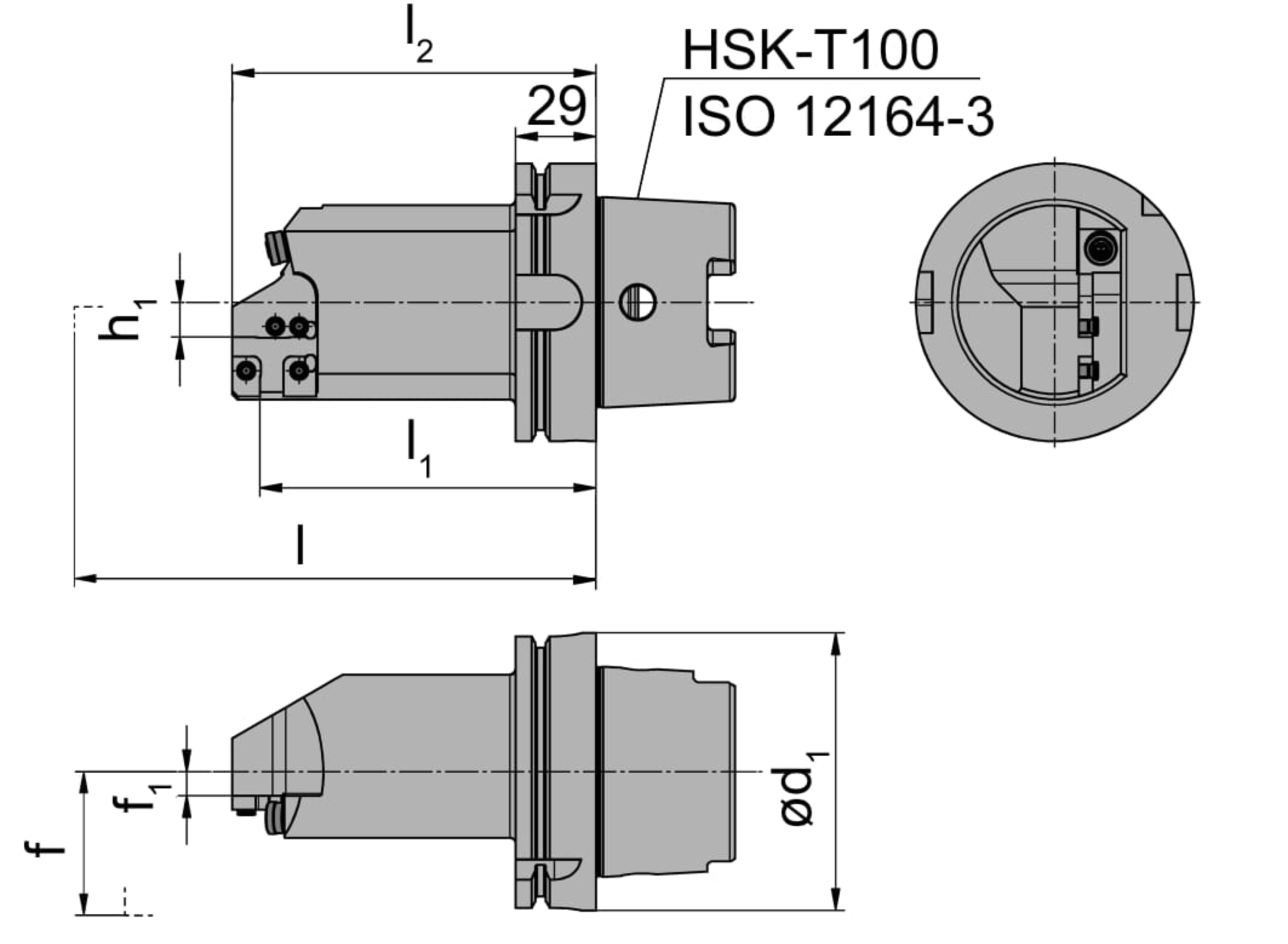

Adjustment dimension (formula) (f)
f1+f3
Katalog_CCTWS
220001
Distance from center (h1)
0.492 ˝
12.5 mm
dim-locating-face-to-cassette-met
4.764 ˝
121 mm
Length of base from bore (l2)
5.157 ˝
131 mm
Cassette system from the middle (f1)
0.339 ˝
8.6 mm
Bore diameter rotate (d1)
3.937 ˝
100 mm
