DA32.032.A.02 SA4B
DA Milling cutter
Material number DA32032A02SA4B

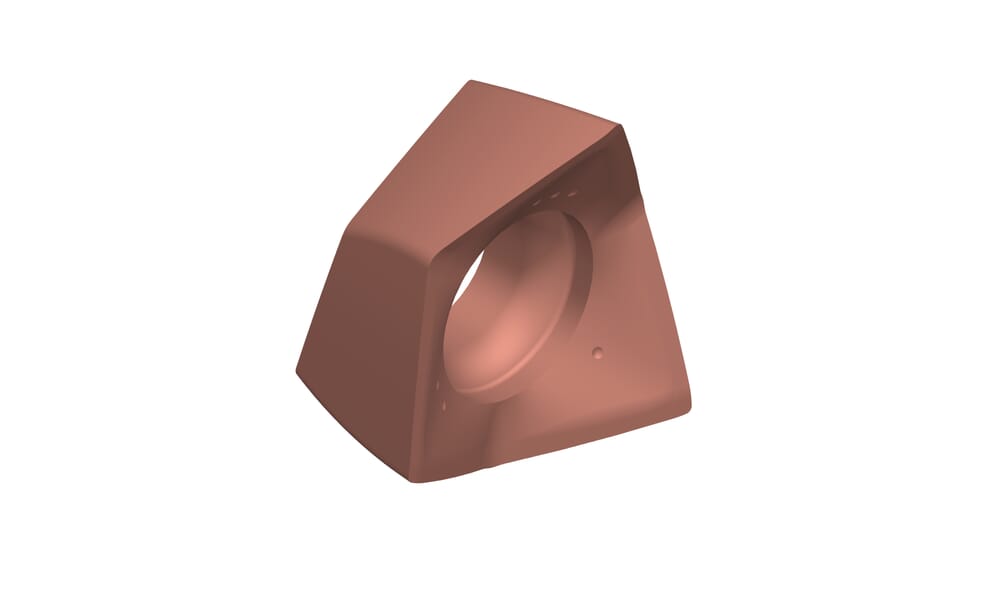

HORN DA Milling cutter DA32.032.A.02 SA4B for Milling
Katalog_SSC
DA3232
For cutting diameter (Ds)
1.26
˝
32
mm
Cutting insert height, Cutting insert thickness (h)
0.185
˝
4.7
mm
Maximum stepover axial (ap) (ap)
0.189
˝
4.8
mm
Width of groove (a)
0.181
˝
4.6
mm
Corner radius (rx)
0.008
˝
0.2
mm
DIN_SSC
HORN-DA32323N
ISO_SSC
HORNDA3232$$3N$$$$$
cutting-edge-diameter-imp
1.26
˝
32
mm
| Downloads | |
|---|---|
| DA32032A02_20240116_232941699.STP | Download |
| Download all files | |
