DA31.016.A.02 SA4B
Material number DA31016A02SA4B

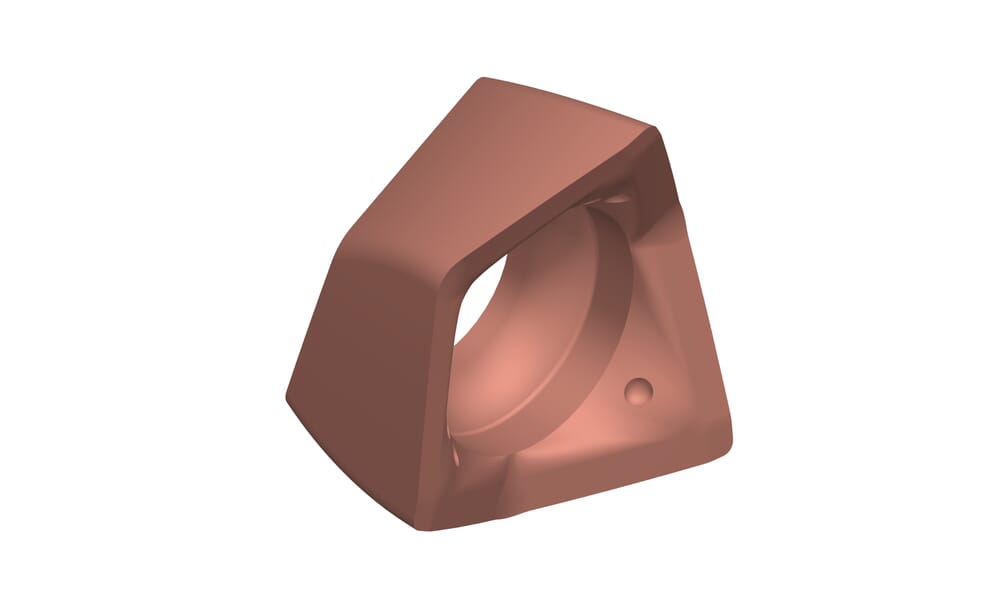

HORN DA Milling cutter DA31.016.A.02 SA4B for Milling
Width of groove (mm) (a)
0.118 ˝
3 mm
tool-application
rotating
For cutting diameter (Ds)
0.63 ˝
16 mm
Cutting insert height, Cutting insert thickness (h)
0.122 ˝
3.1 mm
Maximum stepover axial (ap) (ap)
0.118 ˝
3 mm
cutting-edge-diameter-met
0.63 ˝
16 mm
Corner radius (rx)
0.008 ˝
0.2 mm
Katalog_SSC
DA3116
| Downloads | |
|---|---|
| DA31_016_A_02_SA4B-ISO.XML | Download |
| DA31_016_A_02_SA4B-DXF.DXF | Download |
| DA31_016_A_02_SA4B-STP.STP | Download |
| DA31_016_A_02_SA4B-DIN.XML | Download |
| Download all files | |
