BU114.ST06.00
Steel Toolholders one piece
Material number BU114ST0600

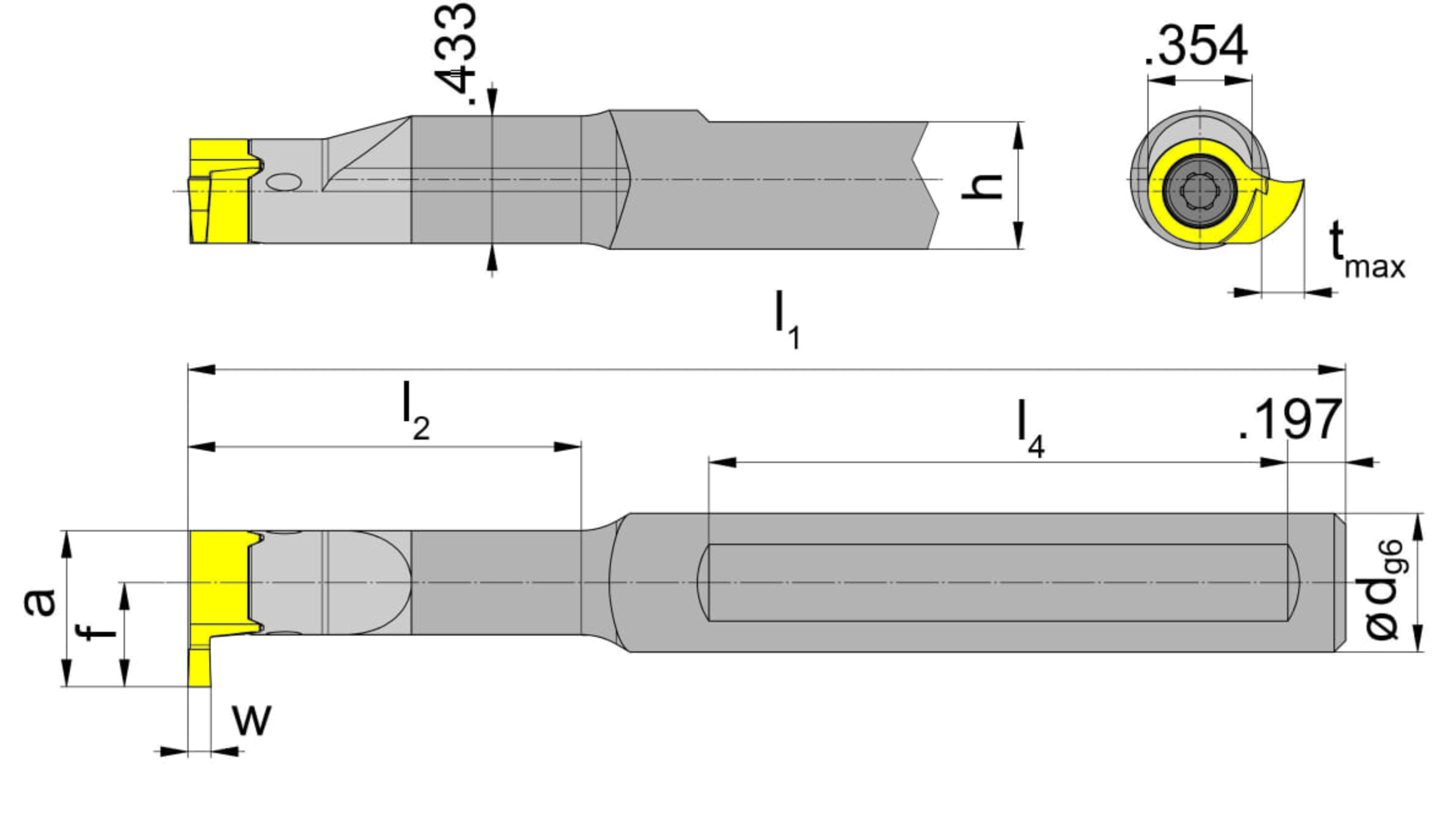

HORN Steel Toolholders one piece BU114.ST06.00 for Turning
Shank, clamping diameter (d)
0.625
˝
15.875
mm
ISO_CCTMS
ZYL50G1600$$$$
smallest-bore-diameter-imp
0.551
˝
14
mm
DIN_CCTMS
ZYL01605015
Katalog_CCTWS
114090R;114090L
DIN_CCTWS
HORN-11409084R;HORN-11409084L
ISO_CCTWS
HORN114090$84R$$$$$;HORN114090$84L$$$$$
clamping-range-max-imp
0.125
˝
3.18
mm
Outcropping, neck, working length (l2)
0.748
˝
19
mm
depth-of-groove-max-imp
0.256
˝
6.5
mm
Length of clamping surface(s) (l4)
1.575
˝
40
mm
head-size-imp
0.543
˝
13.8
mm
Height clamping surface(s) (h)
0.585
˝
14.86
mm
Total length (including cutting insert) (l1)
3.15
˝
80
mm
adjustment-dimension-imp
0.354
˝
9
mm
| Downloads | |
|---|---|
| BU114ST0600_20210630_085752449.STP | Download |
| BU114ST0600.DXF | Download |
| Download all files | |
