BU105.0750.2.2.01
Material number BU10507502201

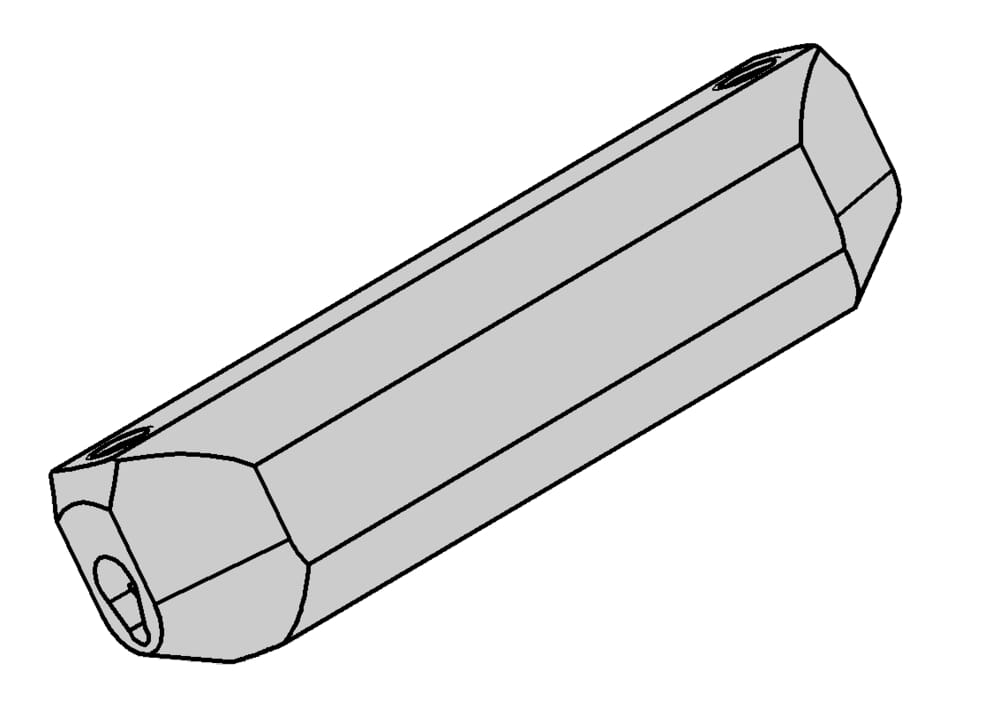

HORN Toolholder BU105.0750.2.2.01 for Turning
tool-application
static
tightening_torque
5 Nm
Katalog_CCTWS
105123;105124;105125
distance-of-clamping-surface-met
0.671 ˝
17.05 mm

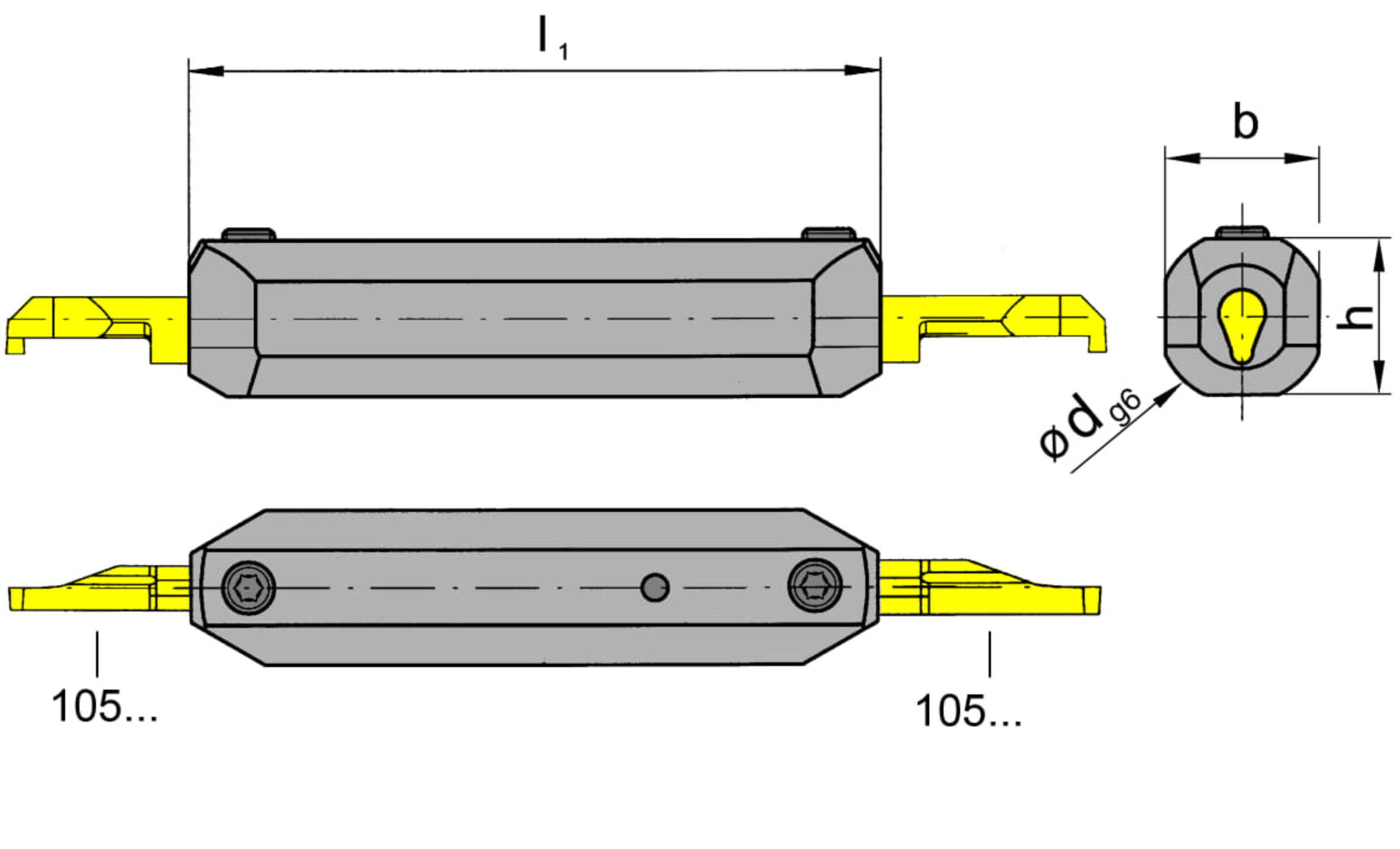

Shank, clamping diameter (d)
0.75 ˝
19.05 mm
Height clamping surface(s) (h)
0.671 ˝
17.05 mm
Total length (without cutting insert) (l1)
4.724 ˝
120 mm
| Downloads | |
|---|---|
| BU10507502201.STP | Download |
| BU105_0750_2_2_01.DXF | Download |
| Download all files | |
