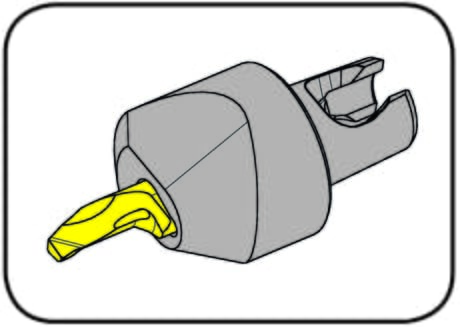

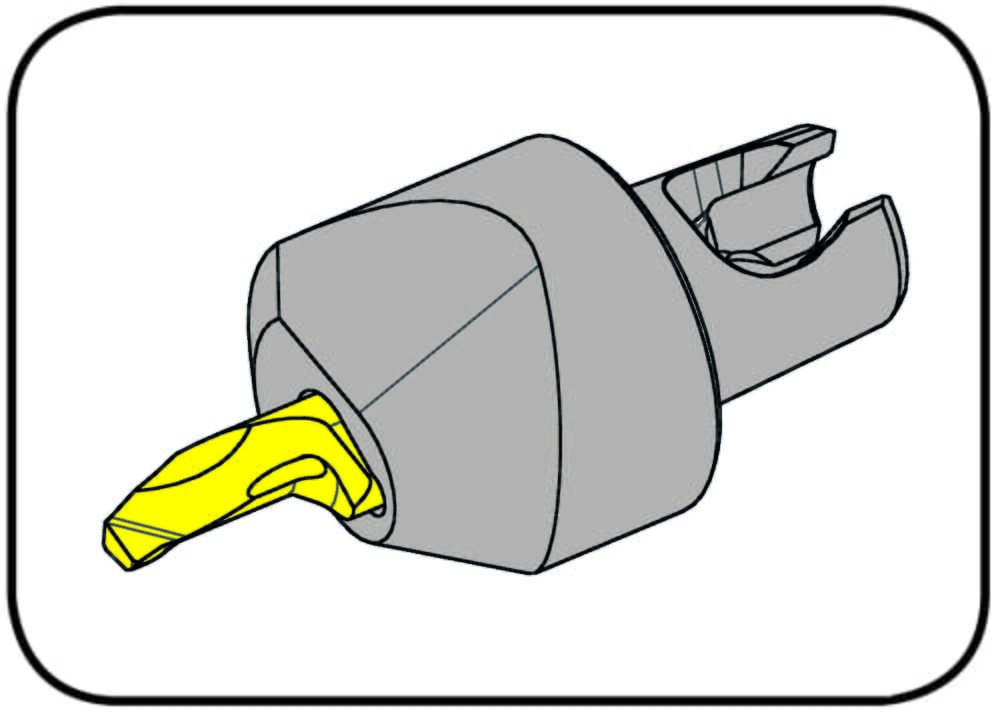

B105KM90.TIF

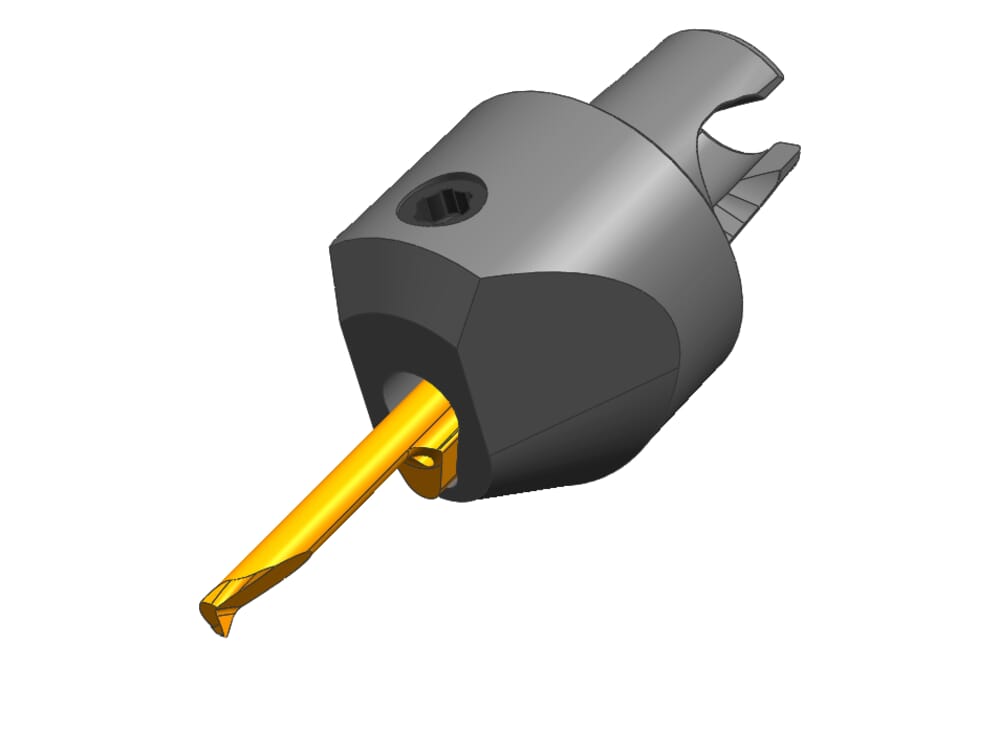

B105KM90.TIF B105KM169001.TIF

B105.KM16.90.01

INNEN_BOHRUNG_DREHEN_FASE.EPS INNEN_EINSTECHEN.EPS

Material number B105KM169001

HORN Toolholder B105.KM16.90.01 for Turning

Cutting data and technical instructions

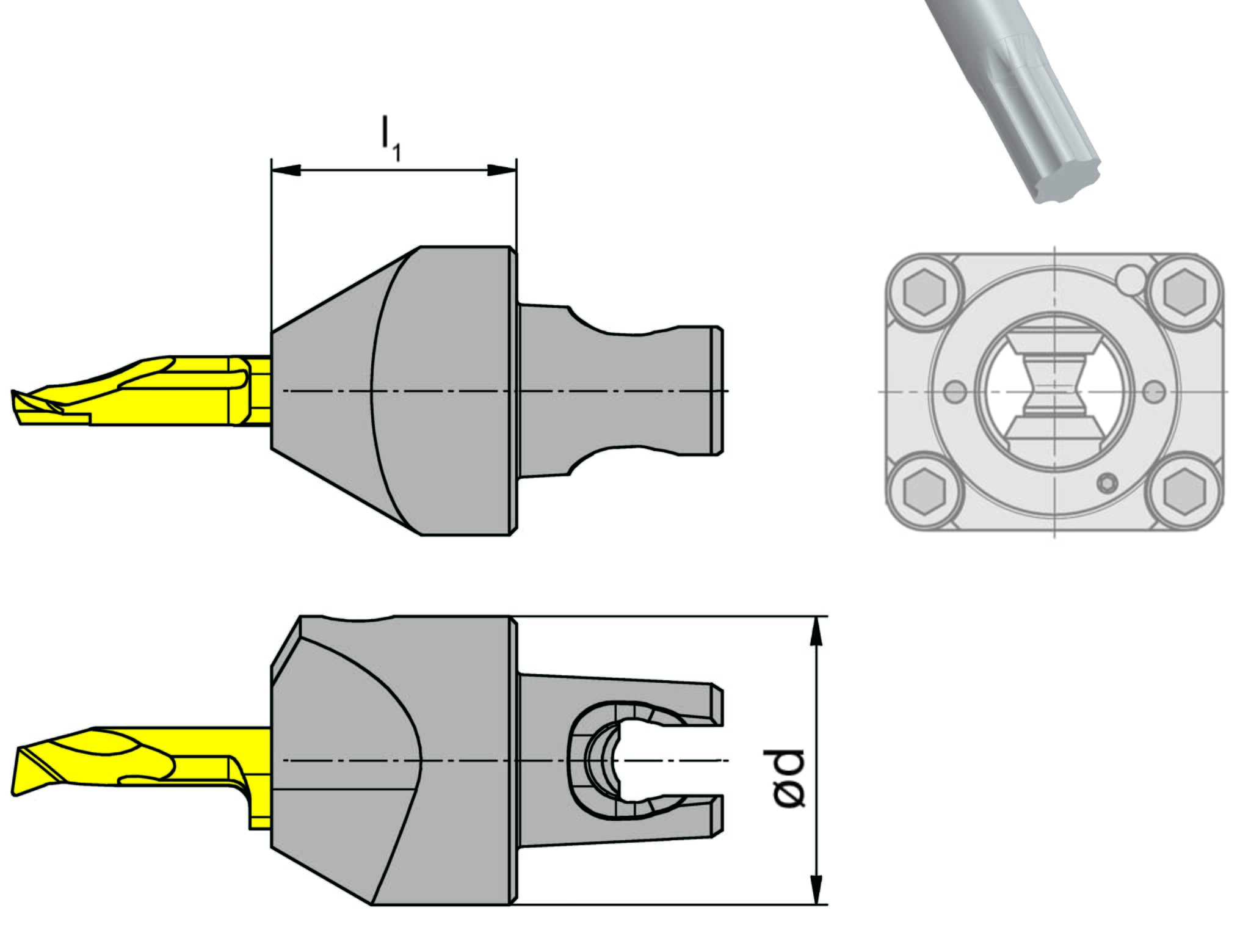

Bore diameter rotate (d)
0.787 ˝
20 mm
Length from bore (without cutting insert) (l1)
0.669 ˝
17 mm
Katalog_CCTWS
105123;105124;105125
Katalog_CCTMS
KM16
tool-application
static
Downloads
B105_KM16_90_01_20171121_195416173.STP Download
B105_KM16_90_01.DXF Download
Download all files
