939.0070.4.00 RC25
Material number 9390070400RC25

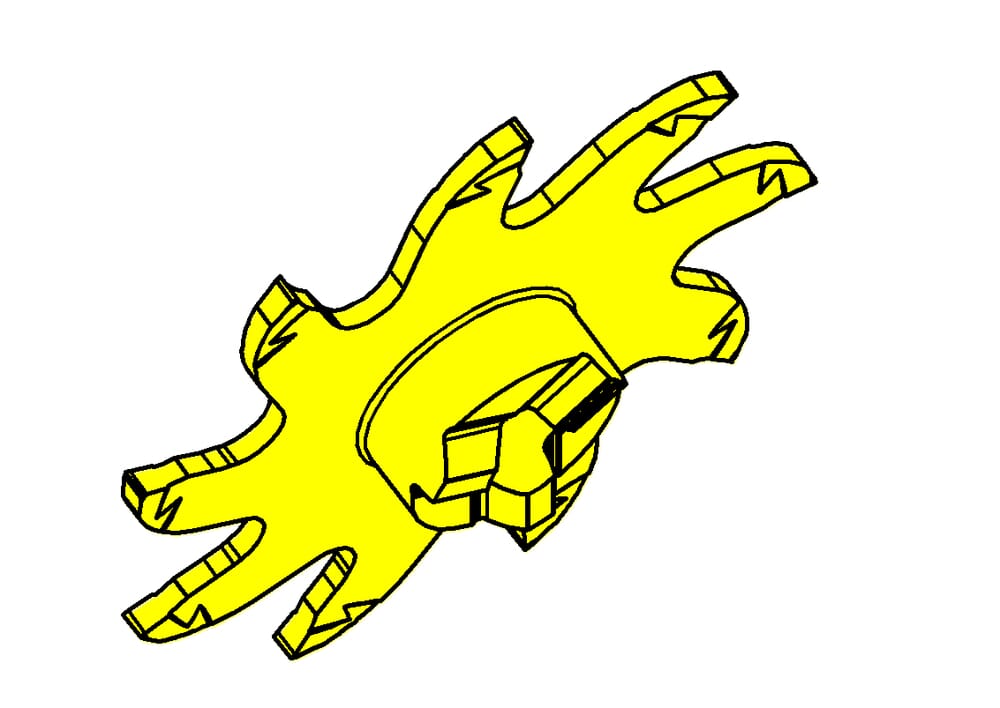

HORN Insert 939.0070.4.00 RC25 for Milling

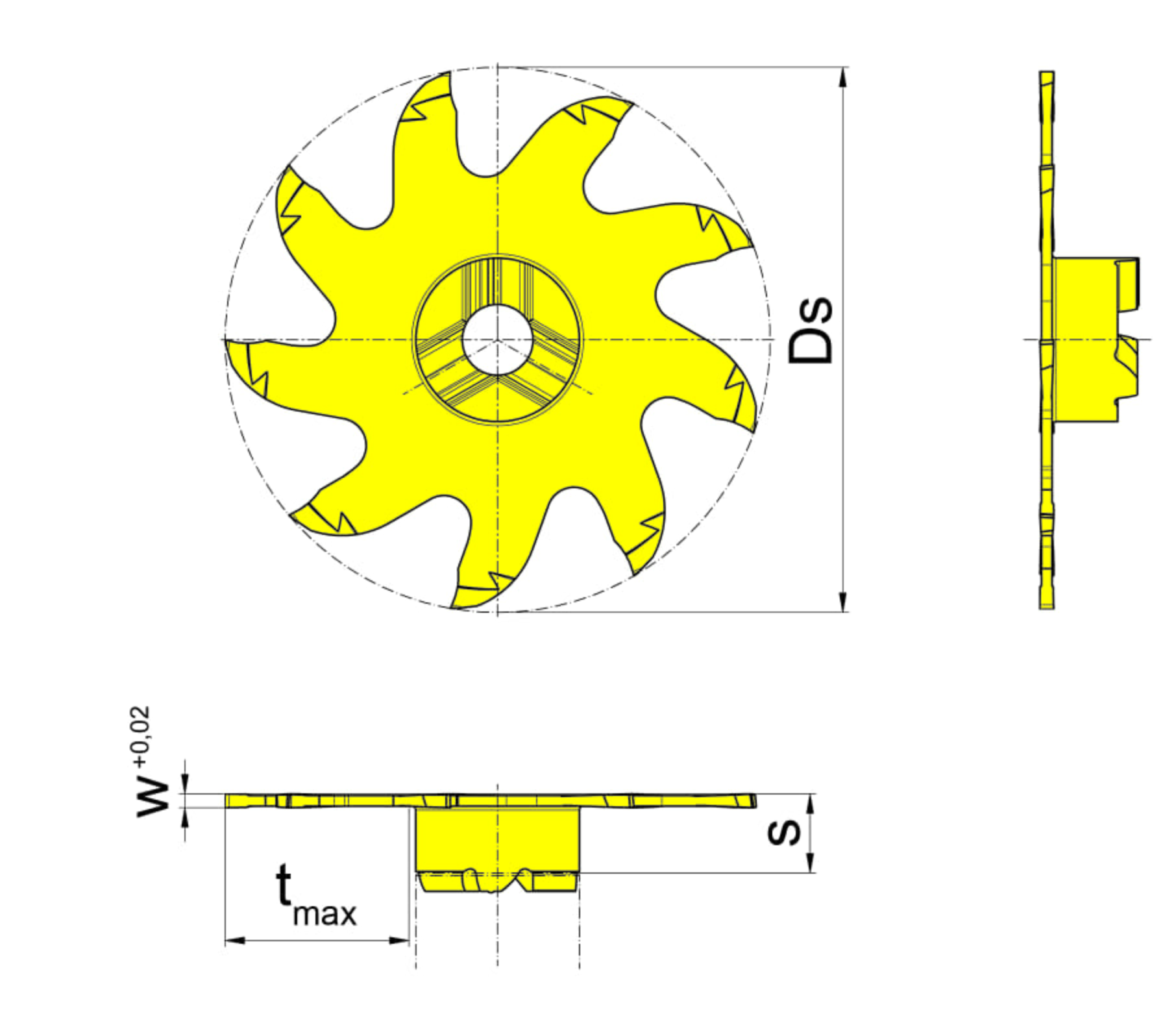

Cutting diameter (Ds)
1.575 ˝
40 mm
Width of groove (w)
0.028 ˝
0.7 mm
Maximum milling depth/ depth of groove (tmax)
0.551 ˝
14 mm
Cutting insert thickness, setting length complete (s)
0.228 ˝
5.8 mm
Katalog_SSC
332110R
tool-application
rotating
| Downloads | |
|---|---|
| 939_0070_4_00_RC25-STP.STP | Download |
| 939_0070_4_00_RC25-ISO.XML | Download |
| 939_0070_4_00_RC25-DIN.XML | Download |
| Download all files | |
