632.0160.2.00 TA45
Material number 6320160200TA45

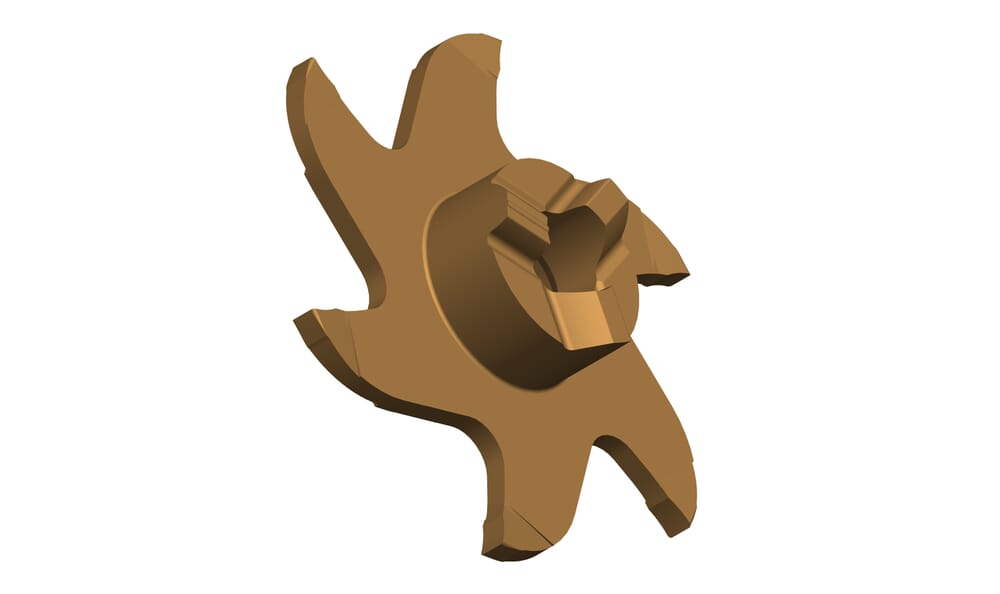

HORN Insert 632.0160.2.00 TA45 for Milling
Corner radius (r)
0.008 ˝
0.2 mm
tool-application
rotating
Cutting insert thickness, setting length complete (s)
0.24 ˝
6.1 mm
Maximum milling depth/ depth of groove (tmax)
0.394 ˝
10 mm
Width of groove (mm) (w)
0.063 ˝
1.6 mm
Cutting diameter (Ds)
1.248 ˝
31.7 mm
Katalog_SSC
332110R
| Downloads | |
|---|---|
| 632_0160_2_00_TA45-DIN.XML | Download |
| 632_0160_2_00_TA45-DXF.DXF | Download |
| 632_0160_2_00_TA45-STP.STP | Download |
| 632_0160_2_00_TA45-ISO.XML | Download |
| Download all files | |
