613.0150.00 TI25

ZAEHNEZAHL_Z6.EPS

VOLLRADIUS_NUT.EPS

TRENNFRAESEN.EPS

Material number 613015000TI25

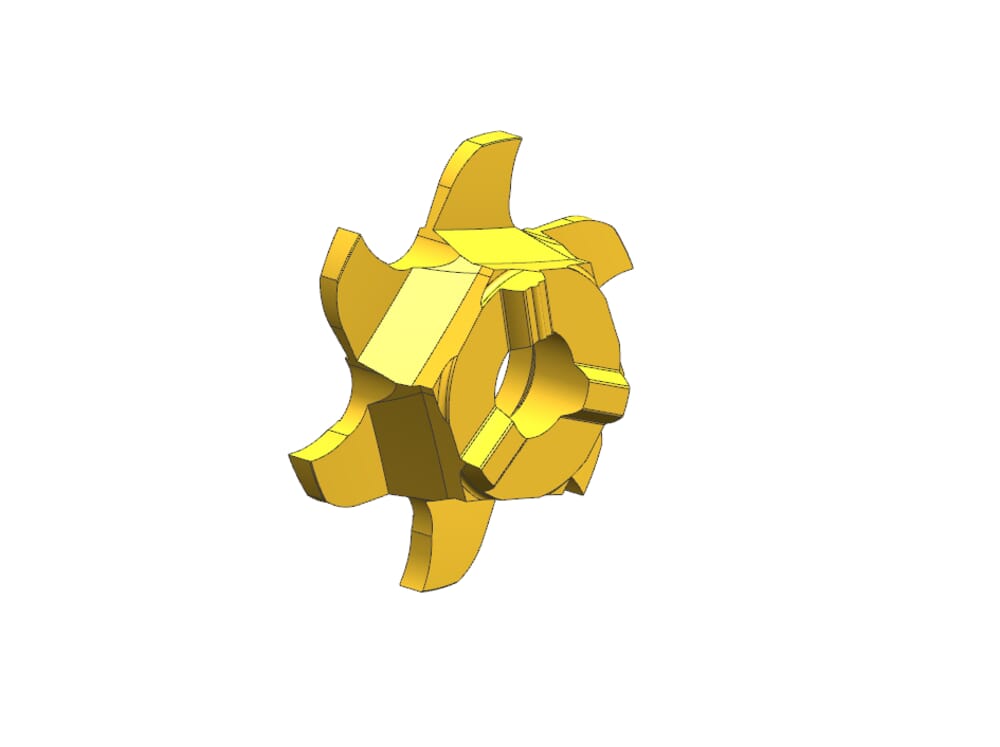

HORN Inserts 613.0150.00 TI25 for Milling

Cutting data and technical instructions

Cutting diameter (Ds)

0.854 ˝

21.7 mm

Katalog_SSC

313113R

Width of groove (w)

0.059 ˝

1.5 mm

Maximum milling depth/ depth of groove (tmax)

0.177 ˝

4.5 mm

Cutting insert thickness, setting length complete (s)

0.224 ˝

5.7 mm

tool-application

rotating

Downloads
613_0150_00_TI25-DXF.DXF	Download
613_0150_00_TI25-DIN.XML	Download
613_0150_00_TI25-STP.STP	Download
613_0150_00_TI25-ISO.XML	Download
Download all files
