MU335.0750.02B
Material number MU335075002B
HORN Toolholder MU335.0750.02B for Milling

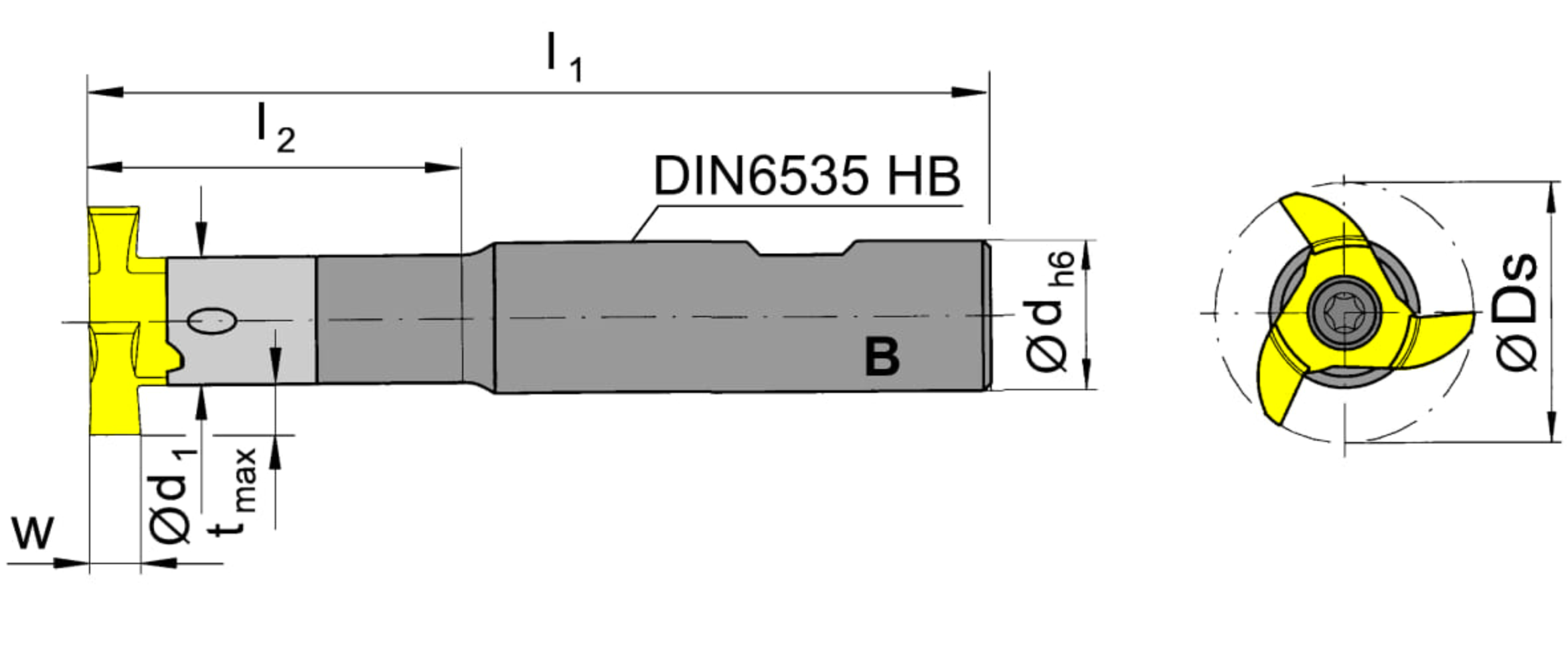

Working length, Neck length, Extension length (l2)
2.362 ˝
60 mm
tool-application
rotating
tightening_torque
12 Nm
form
B
direction-of-rotation-sel
right hand
Shank diameter (d)
0.75 ˝
19.05 mm
Total length insert (l1)
5.118 ˝
130 mm
Neck diameter (d1)
0.689 ˝
17.5 mm
Katalog_CCTWS
335175R
| Downloads | |
|---|---|
| M335_0020_01B_20171121_202547782.STP | Download |
| MU335075002B_20210629_204541009.DXF | Download |
| Download all files | |
