MU328.0500.02B
Toolholders
Material number MU328050002B

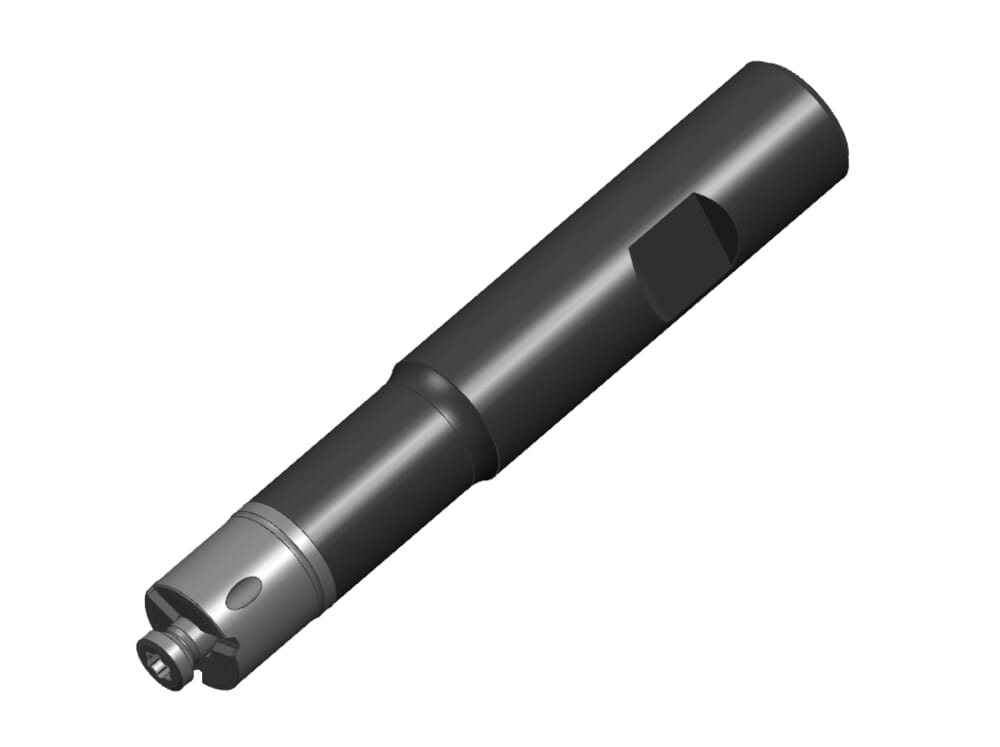

HORN Toolholders MU328.0500.02B for Milling

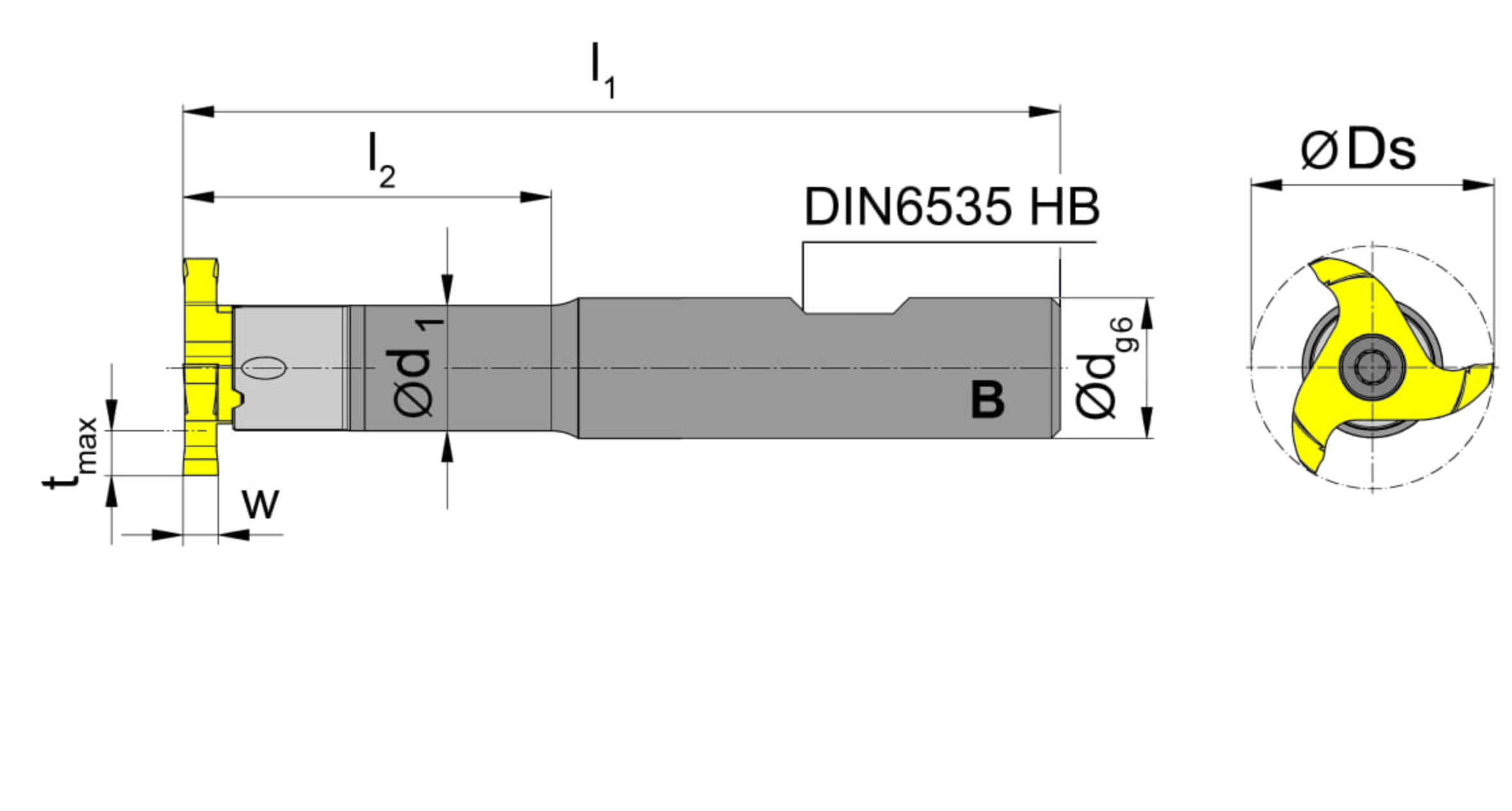

Working length, Neck length, Extension length (l2)
5.118 ˝
130 mm
tool-application
rotating
tightening_torque
6.5 Nm
form
B
direction-of-rotation-sel
right hand
Shank diameter (d)
0.5 ˝
12.7 mm
Total length insert (l1)
5.118 ˝
130 mm
Neck diameter (d1)
0.563 ˝
14.3 mm
Katalog_CCTWS
328143R
| Downloads | |
|---|---|
| MU328050002B_20230113_210603169.STP | Download |
| MU328050002B.DXF | Download |
| Download all files | |
