MU311.0625.04B
Material number MU311062504B

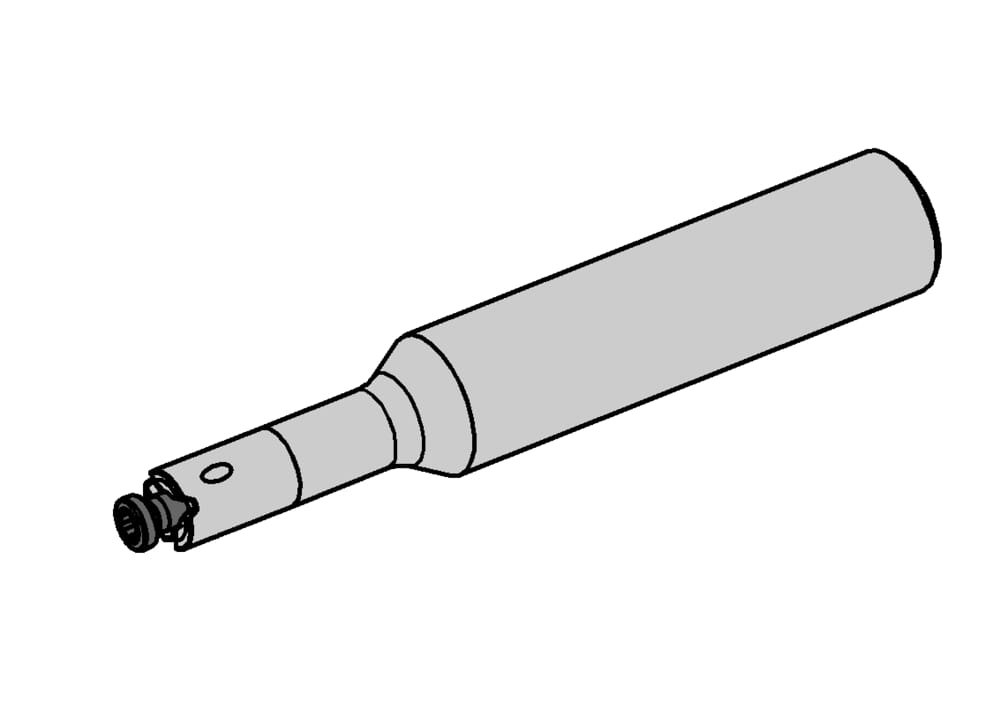

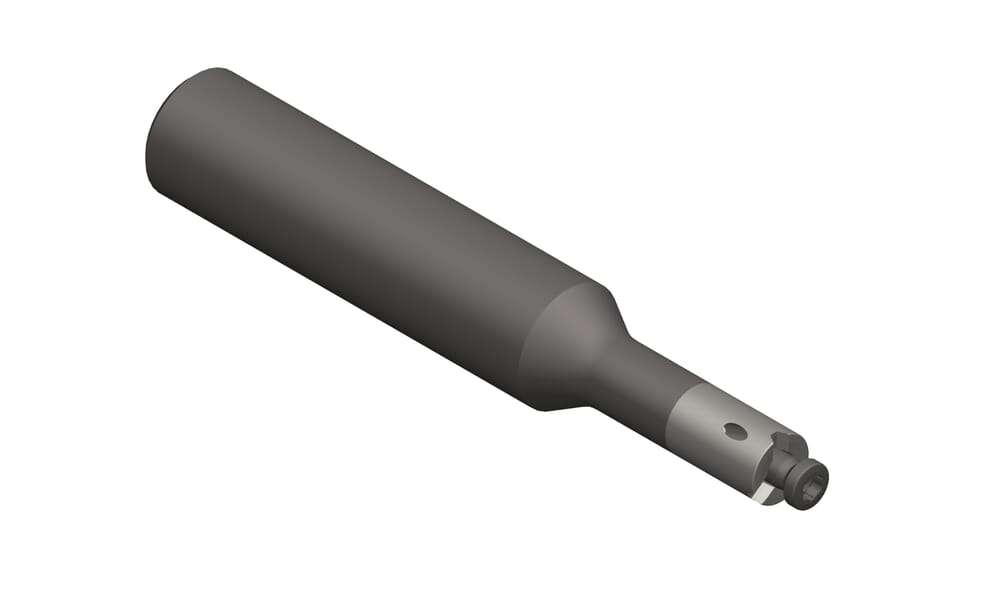

HORN Toolholders MU311.0625.04B for Milling

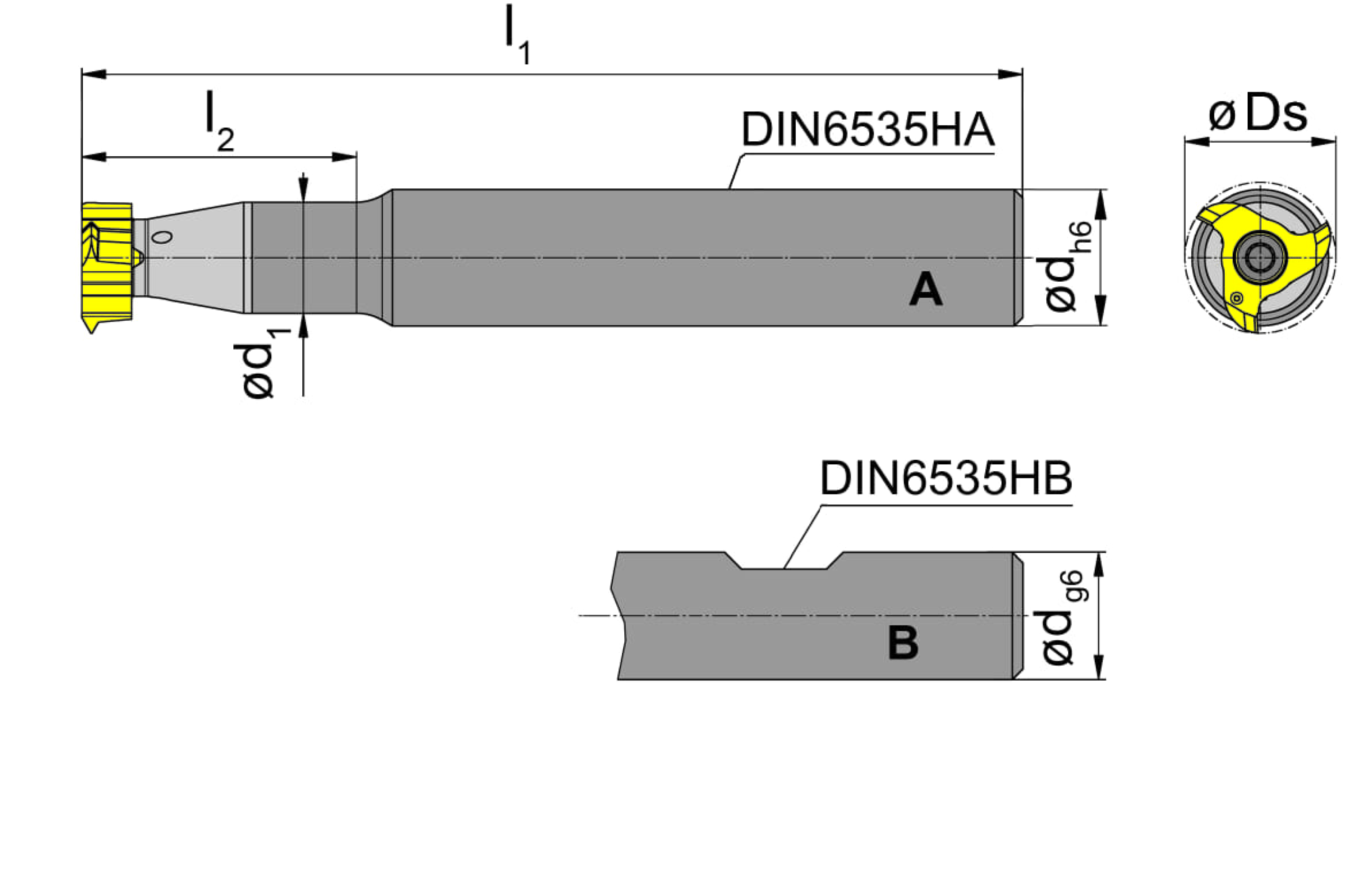

Total length insert (l1)
4.331 ˝
110 mm
tool-application
rotating
tightening_torque
5 Nm
Form (Form)
B
direction-of-rotation-sel
right hand
Working length, Neck length, Extension length (l2)
1.26 ˝
32 mm
Shank diameter (d)
0.625 ˝
15.875 mm
Neck diameter (d1)
0.512 ˝
13 mm
Katalog_CCTWS
311090R
| Downloads | |
|---|---|
| MU311062504B.STP | Download |
| Download all files | |
