MU310.5000.05
Material number MU310500005

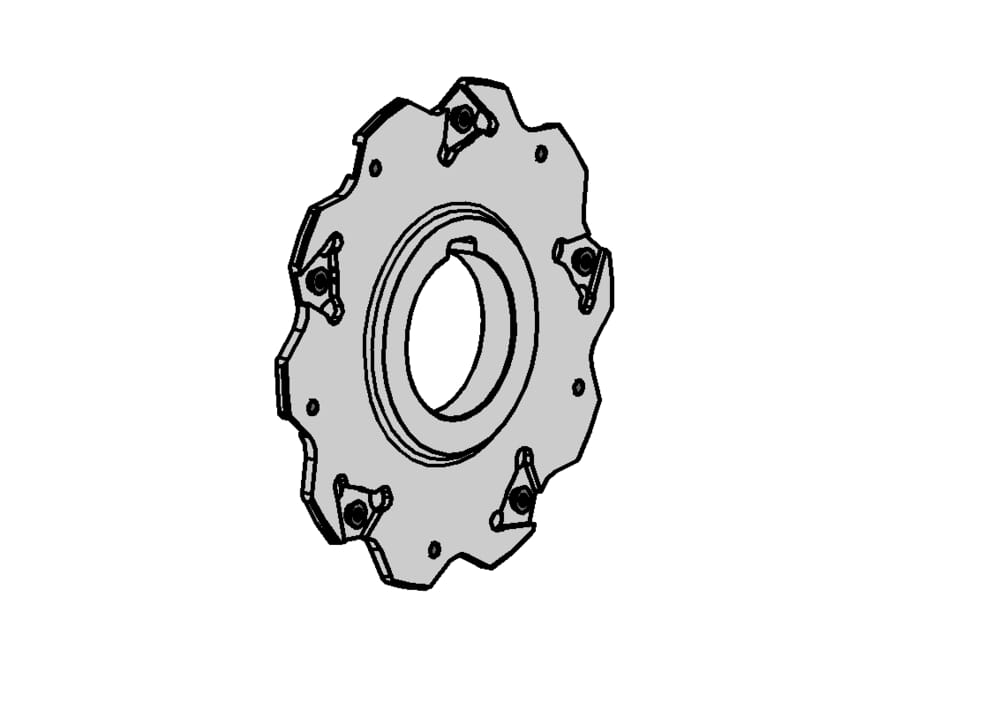

HORN MU310.5000.05 for Milling

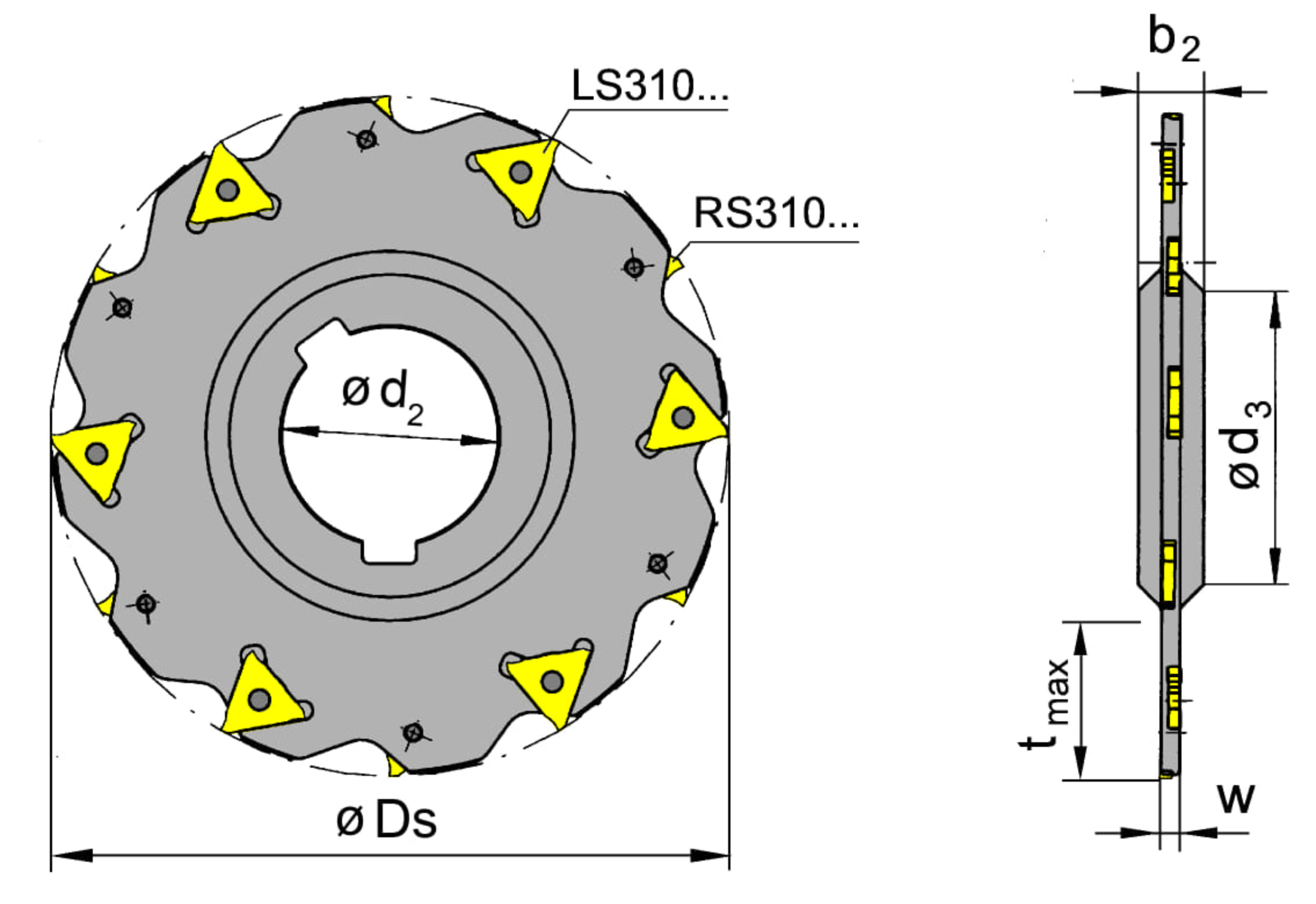

Cutting width maximum (w)
0.197 ˝
5 mm
tool-application
rotating
Left hand indexable insert (linke WSP)
6x LS310.5028.00
Right hand indexable insert (rechte WSP)
6x RS310.5028.00
number-of-teeth-effective
6 St.
Number of teeth (Z)
12 St.
Diameter of driver ring (d4)
2.252 ˝
57.2 mm
Total width with drive rings (b2)
0.374 ˝
9.5 mm
Maximum milling depth/ depth of groove (tmax)
1.26 ˝
32 mm
Cutting diameter (Ds)
5 ˝
127 mm
Mounting hole diameter (d2)
1.5 ˝
38.1 mm
Katalog_CCTWS
310028R;310028L
