MU310.1140.04
Material number MU310114004

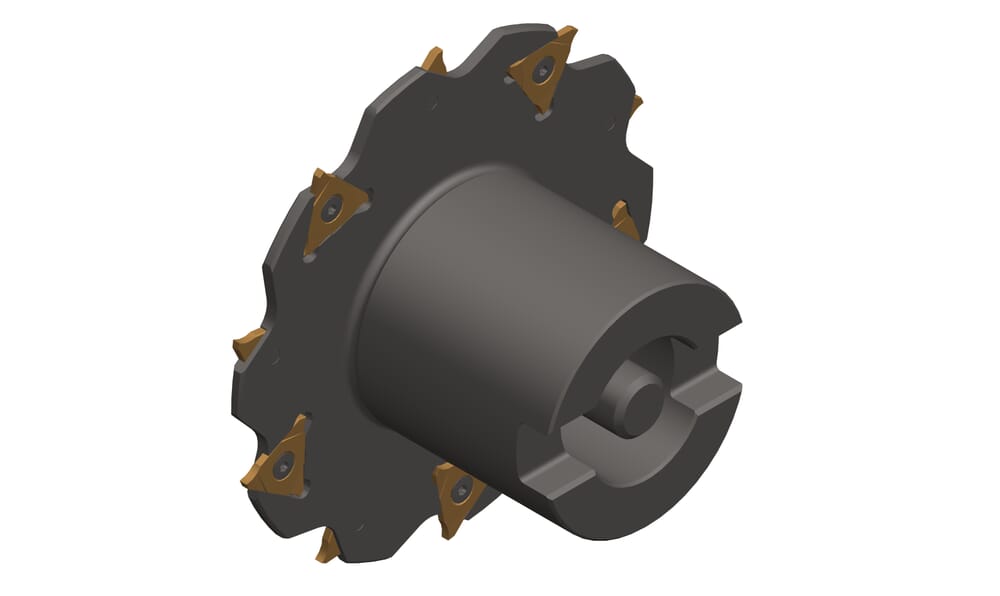

HORN Toolholders MU310.1140.04 for Milling
Diameter facing system for disk cutters (d3)
1 ˝
25.4 mm
us-cutting
No
cutting
0
tool-application
rotating
Left hand indexable insert (linke WSP)
5x LS310.4023.00
Right hand indexable insert (rechte WSP)
5x RS310.4023.00
Number of teeth (Z)
10 St.

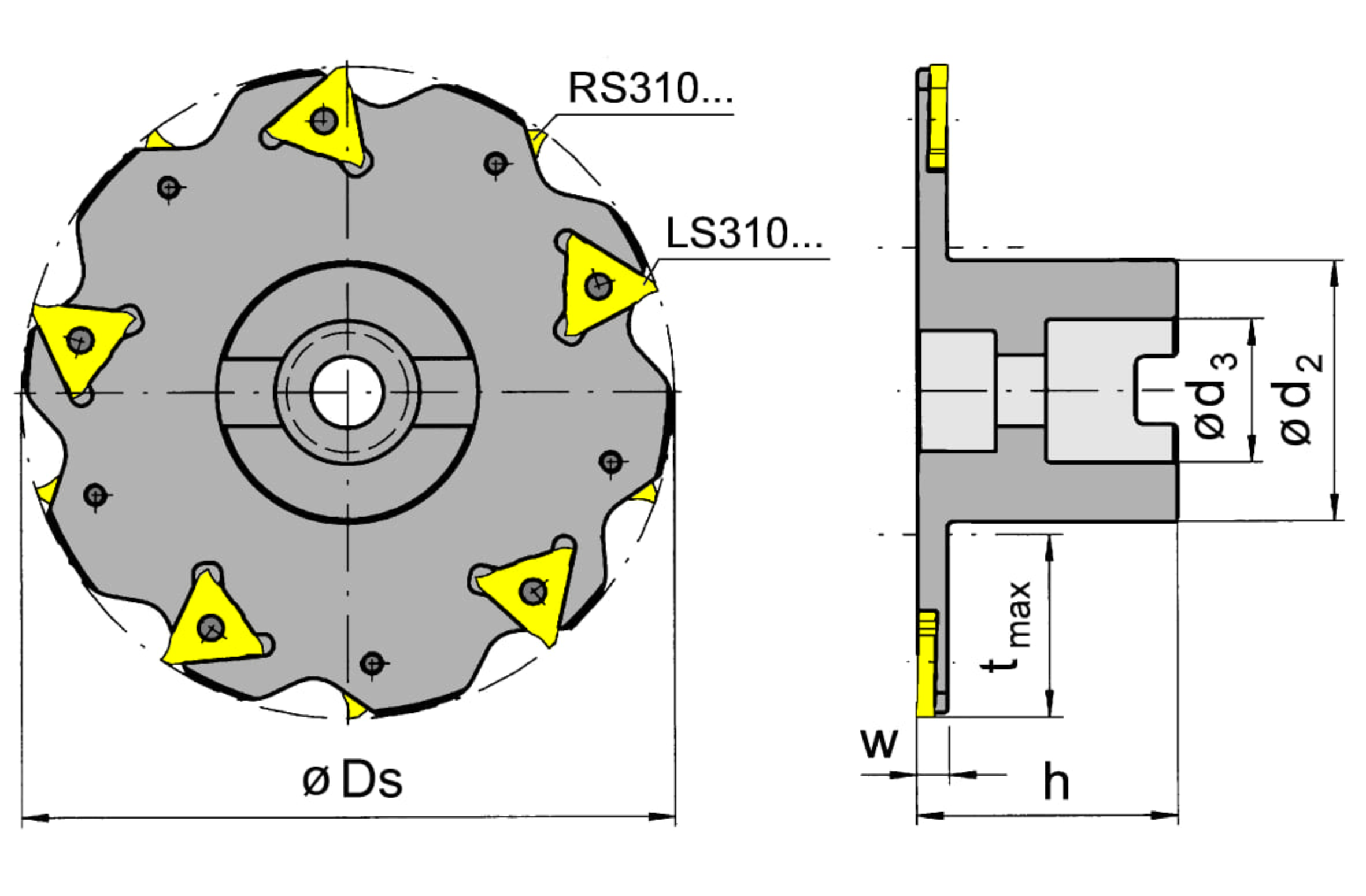

Diameter of the mandrel (d2)
1.874 ˝
47.6 mm
Cutting diameter (Ds)
4 ˝
101.6 mm
Maximum milling depth (tmax)
1.023 ˝
25.984 mm
Cutting width maximum (w)
0.157 ˝
4 mm
Miller length with indexable insert (h)
2 ˝
50.8 mm
Katalog_CCTWS
310028R;310028L
| Downloads | |
|---|---|
| MU310114004.STP | Download |
| Download all files | |
