MU117.0750.20
Material number MU117075020

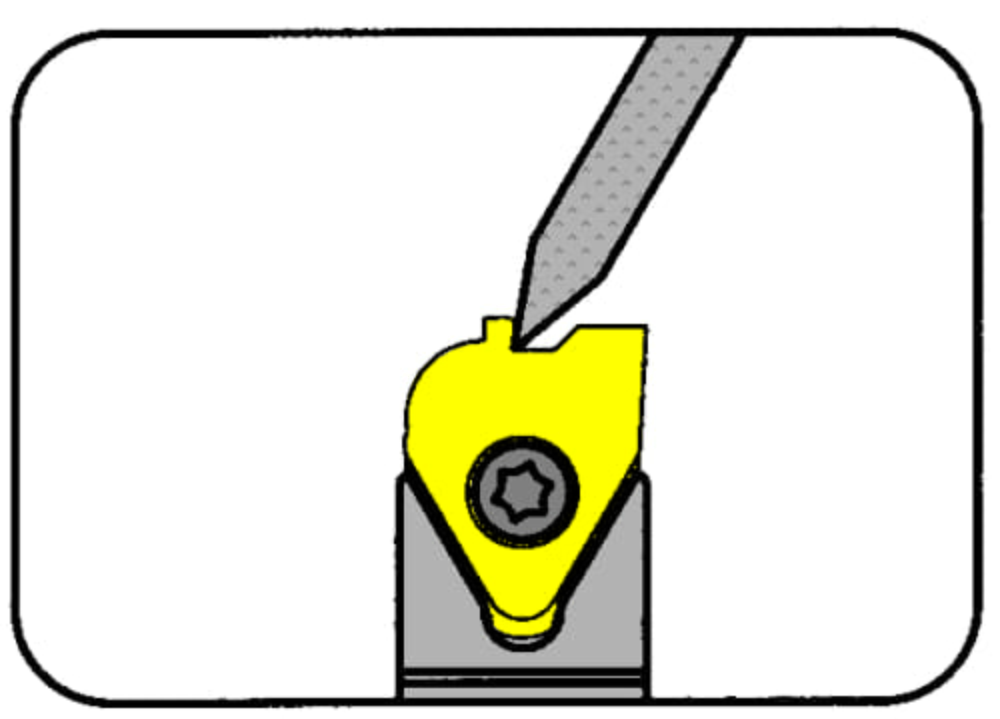

HORN MU117.0750.20 for Turning
tool-application
static
tightening_torque
7 Nm
semi-finished-insert
S117.0018/20.00
size
20
cutting-width-max-imp
0.787 ˝
20 mm
cutting-width-imp
0.787 ˝
20 mm
shank-width-met
0.75 ˝
19.05 mm
peak-height-imp
0.75 ˝
19.05 mm
insertion-depth-max-imp
0.354 ˝
9 mm
shank-height-imp
0.75 ˝
19.05 mm
total-length-including-cutting-insert-imp
5.906 ˝
150 mm
adjustment-dimension-imp
0.354 ˝
9 mm
| Downloads | |
|---|---|
| MU117075020_20230113_201009133.STP | Download |
| MU117075020.DXF | Download |
| Download all files | |
